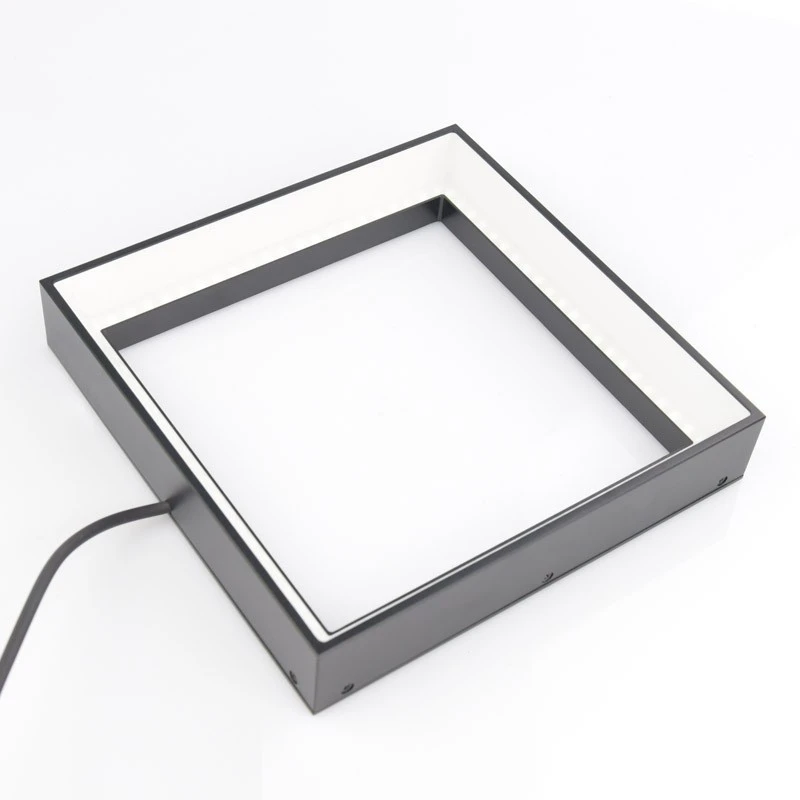

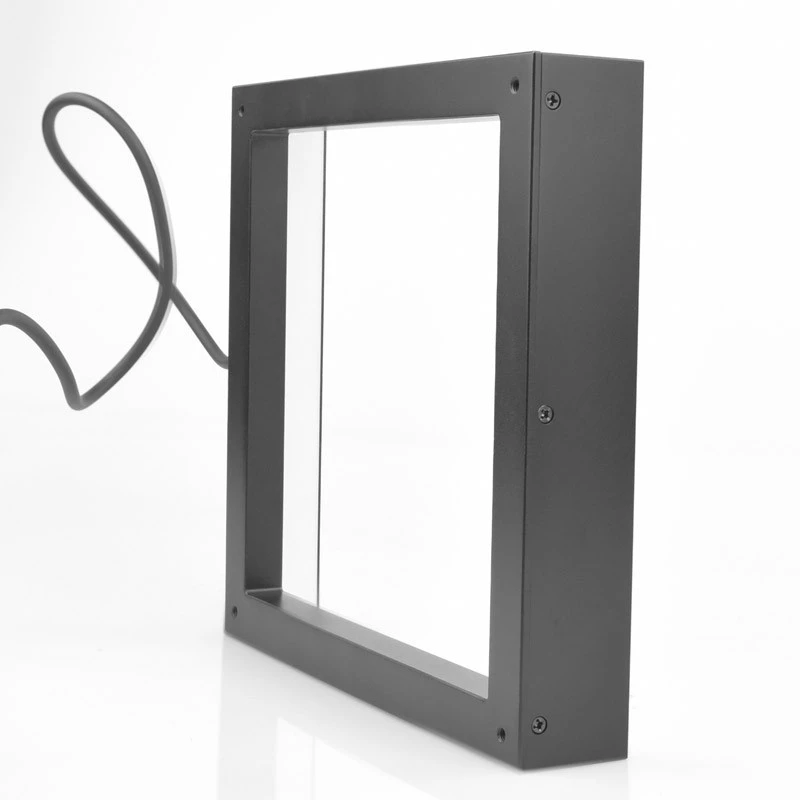

Square Shadowless Light Series

  • With higher uniformity, special diffuser plates achieve shadowless illumination effect.
Get A Quotation
Category:
  • Exterior defect detection of plastic parts, bottle mouth defect detection.
  • Hardware edge positioning, etc.
  • Surface bruises, scratches, indentation detection.
Light Model Color External Dimensions (mm) Voltage (V) Power (W)
Length Width Height
DBS-FIF4640W White 46 40 19 24 2.7
DBS-FIF4640B Blue 46 40 19 24 2.7
DBS-FIF4640R Red 46 40 19 24 1.6
DBS-FIF4640G Green 46 40 19 24 2.7
DBS-FIF5050W White 50 50 40 24 3.5
DBS-FIF5050B Blue 50 50 40 24 3.5
DBS-FIF5050R Red 50 50 40 24 3.5
DBS-FIF5050G Green 50 50 40 24 3.5
DBS-FIF100100W White 100 100 32 24 5
DBS-FIF100100B Blue 100 100 32 24 5
DBS-FIF100100R Red 100 100 32 24 2.5
DBS-FIF100100G Green 100 100 32 24 5
DBS-FIF78100W White 100 78 28 24 3.8
DBS-FIF78100B Blue 100 78 28 24 3.8
DBS-FIF78100R Red 100 78 28 24 3.2
DBS-FIF78100G Green 100 78 28 24 3.8
DBS-FIF80150W White 154 84 31 24 7.7
DBS-FIF80150B Blue 154 84 31 24 7.7
DBS-FIF80150R Red 154 84 31 24 4.3
DBS-FIF80150G Green 154 84 31 24 7.7
DBS-FIF100240W White 240 100 41 24 18.6
DBS-FIF100240B Blue 240 100 41 24 18.6
DBS-FIF100240R Red 240 100 41 24 14.88
DBS-FIF100240G Green 240 100 41 24 18.6
DBS-FIF120120W White 120 120 25 24 6.7
DBS-FIF120120B Blue 120 120 25 24 6.7
DBS-FIF120120R Red 120 120 25 24 3.6
DBS-FIF120120G Green 120 120 25 24 6.7
DBS-FIF200400W White 400 200 41 24 38.2
DBS-FIF200400B Blue 400 200 41 24 38.2
DBS-FIF200400R Red 400 200 41 24 30.56
DBS-FIF200400G Green 400 200 41 24 38.2
DBS-FIF300300W White 300 300 41 24 42.3
DBS-FIF300300B Blue 300 300 41 24 42.3
DBS-FIF300300R Red 300 300 41 24 33.84
DBS-FIF300300G Green 300 300 41 24 42.3

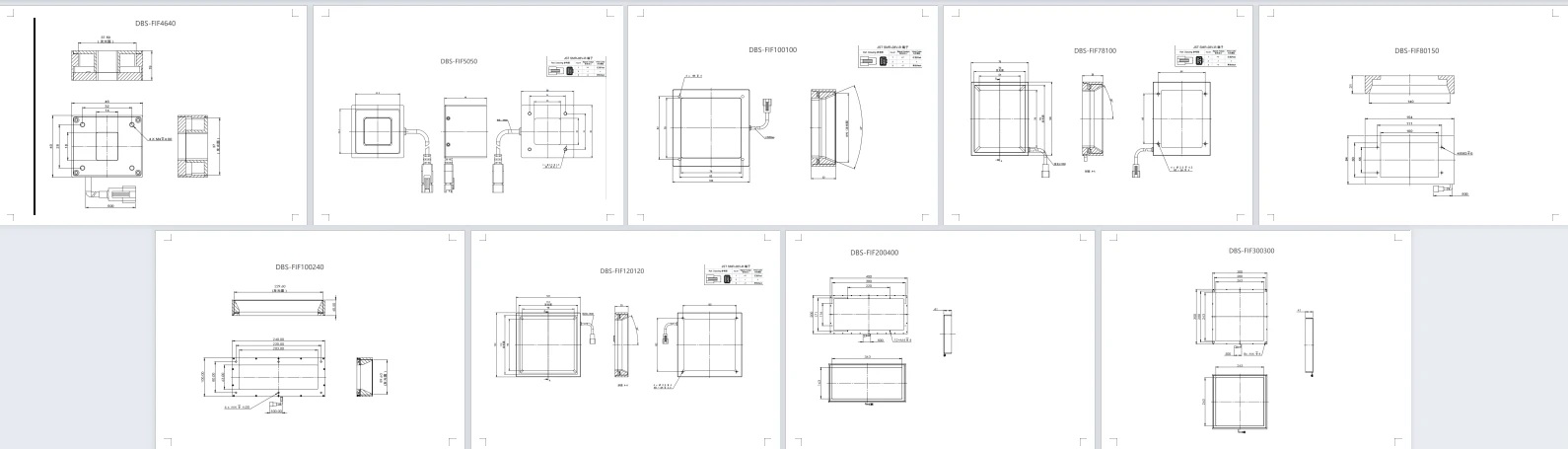

square shadowless light series
Square Shadowless Light Series
