- Supports RS232 communication
- Supports 100Mbps Ethernet communication
- Built-in 5V switching power supply
- Low trigger response time
- Supports external trigger mode
- Switchable between constant-on and strobe modes (all-in-one design)
- Supports millisecond-level and microsecond-level strobe
- Manual adjustment of brightness and mode
- 5~24V bidirectional trigger, adaptable to high/low level trigger modes
- Easy to install (screw installation or C45 DIN rail installation)

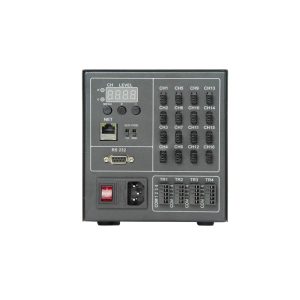

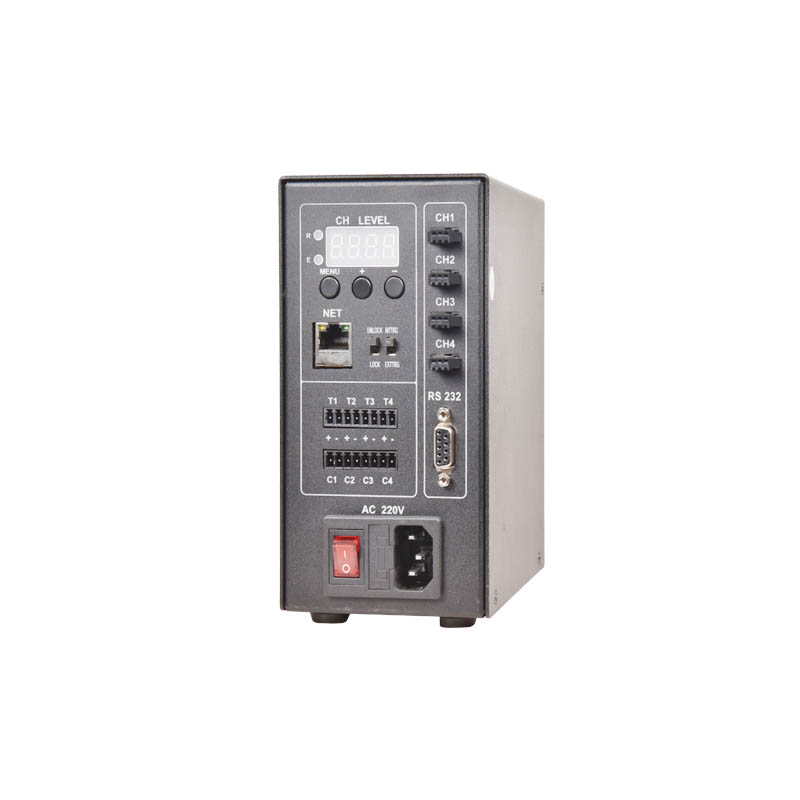

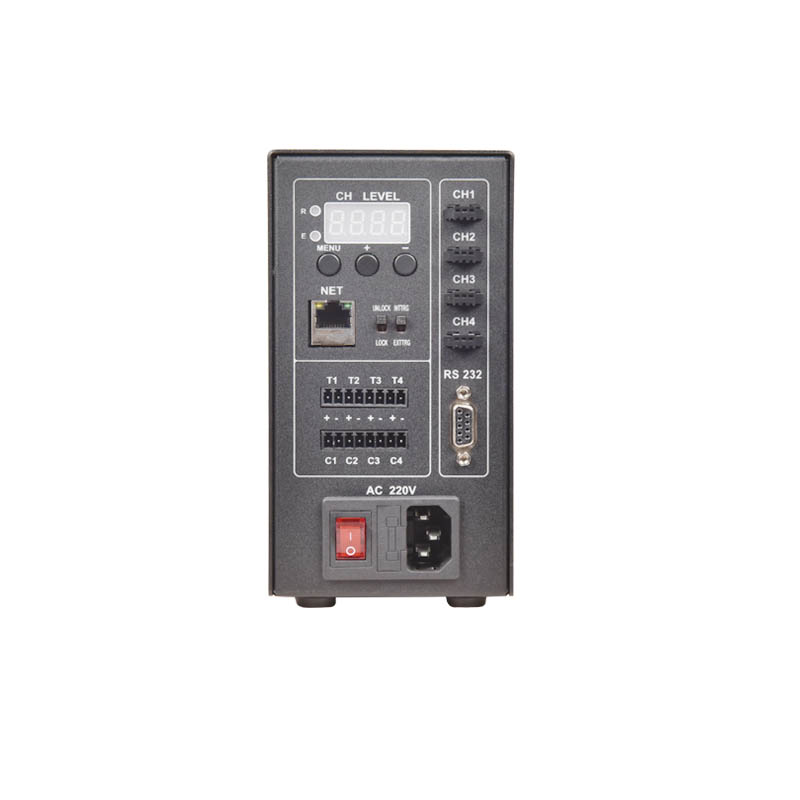

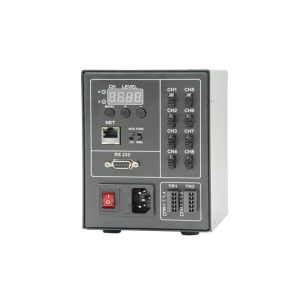

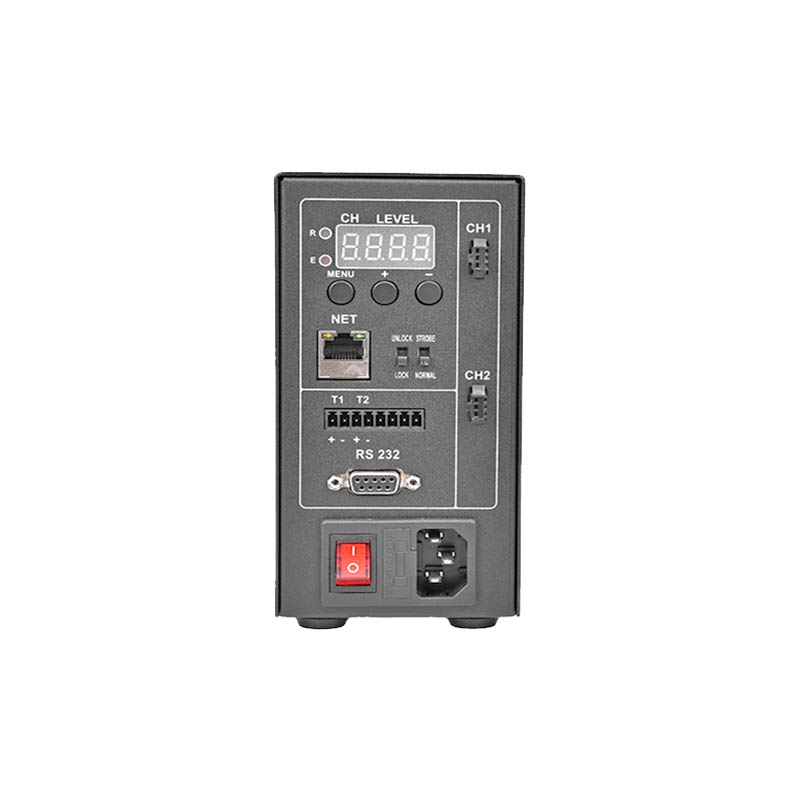

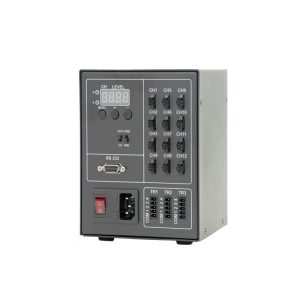

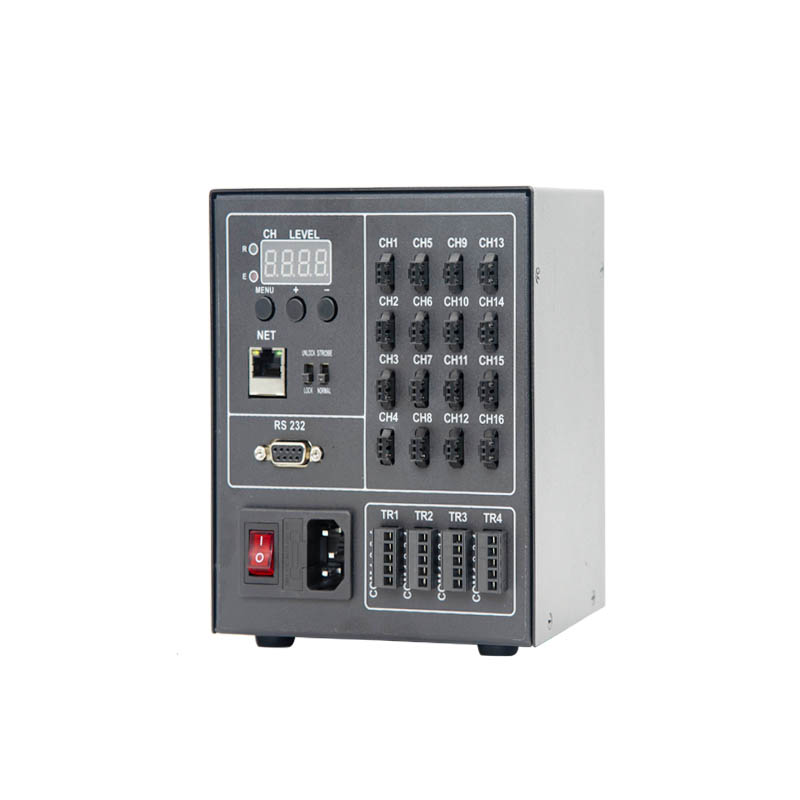

Point light source controller
The constant current point light source controller features an integrated switching power supply with a power rating of 65W. It offers selectable channel options and supports RS232/Ethernet communication interfaces. With advantages such as stable brightness and excellent linearity in dimming, it is suitable for lighting applications in full-frame area array cameras, rolling shutter cameras, and other imaging systems.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-DC65-P01C-05005-4 | VAC 85~264 | DC 5V | 0.5A | 65W | 4 | RS232 |
| DBS-DC65-P01CE-05008-2 | VAC 85~264 | DC 5V | 0.8A | 65W | 2 | RS232/Ethenet |
| DBS-DC65-P01CE-05008-4 | VAC 85~264 | DC 5V | 0.8A | 65W | 4 | RS232/Ethenet |
| DBS-DC65-P01CE-05008-8 | VAC 85~264 | DC 5V | 0.8A | 65W | 8 | RS232/Ethenet |
| DBS-DC65-P01C-05008-12 | VAC 85~264 | DC 5V | 0.8A | 65W | 12 | RS232/Ethenet |
| DBS-DC65-P01CE-05008-16 | VAC 85~264 | DC 5V | 0.8A | 65W | 16 | RS232/Ethenet |
| DBS-DC65-P03C-05020-4 | VAC 85~264 | DC 5V | 2A | 65W | 4 | RS232/Ethenet |
