- Supports RS232 communication;
- Built-in 48V switching power supply;
- Low trigger response time (500ns);
- Supports ultra-high frequency triggering (100KHz);
- Supports external trigger/internal trigger modes;
- Supports synchronous signal output;
- 5~24V bidirectional triggering, adaptable to high and low level trigger
- modes;
- Automatic power-off data storage;

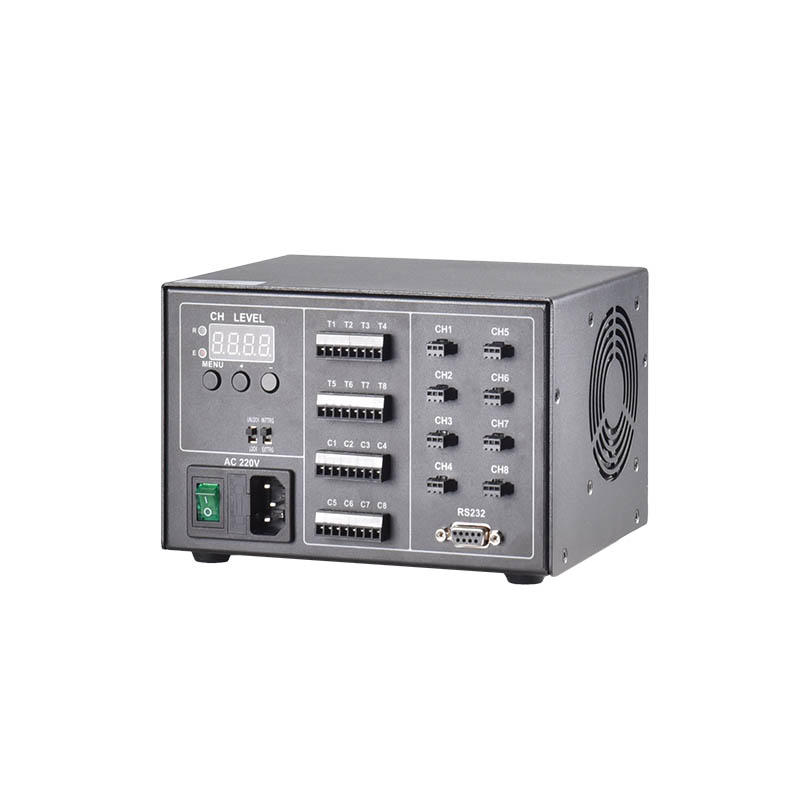

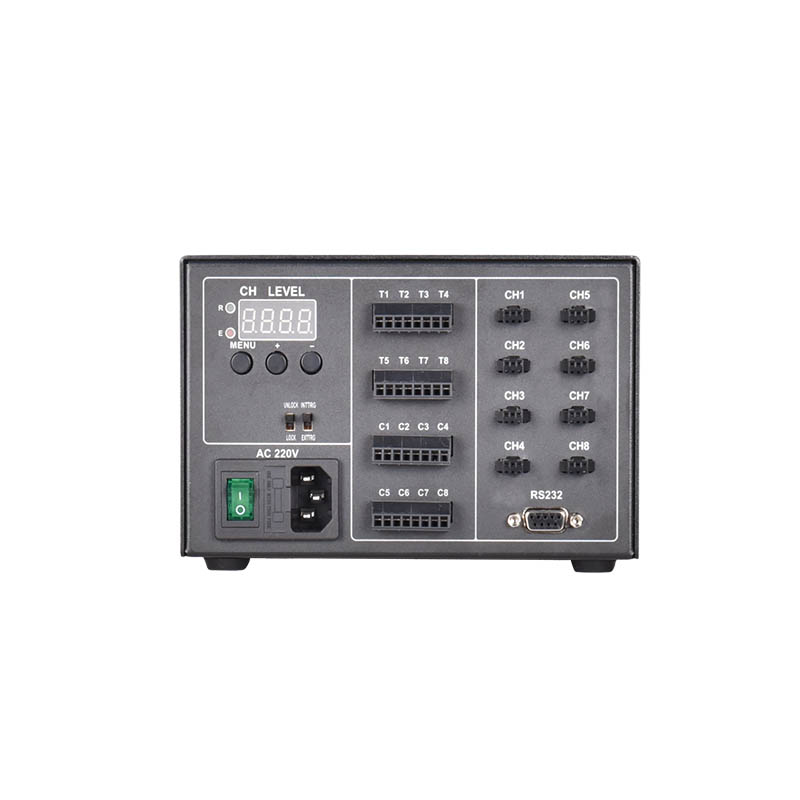

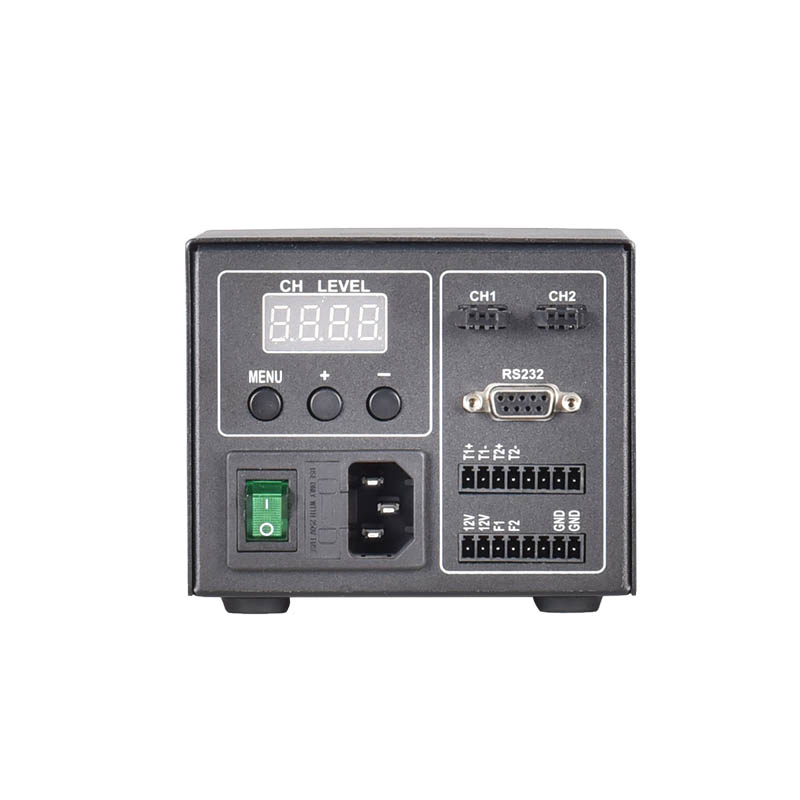

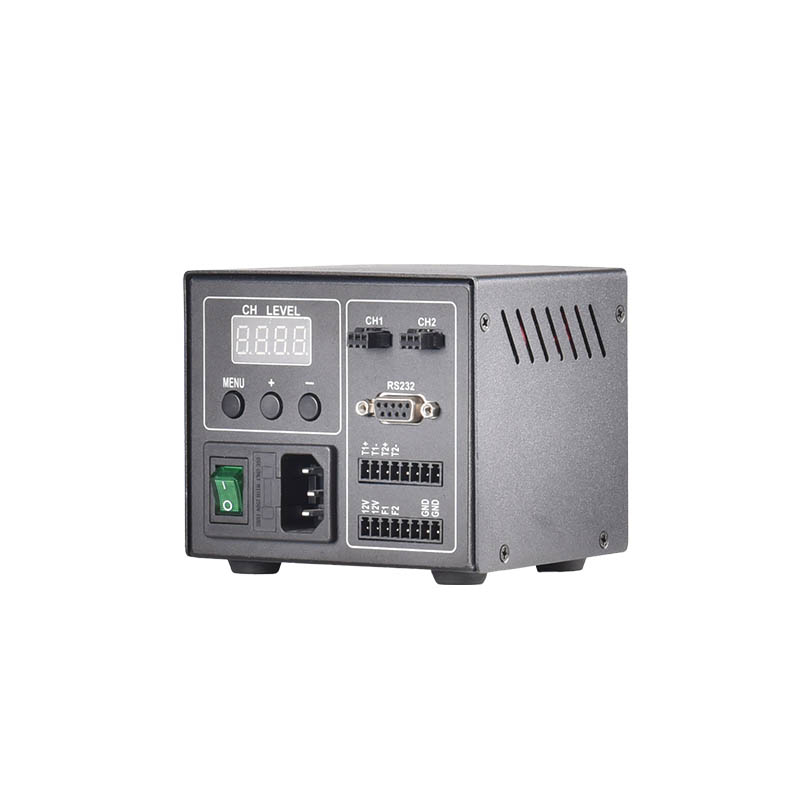

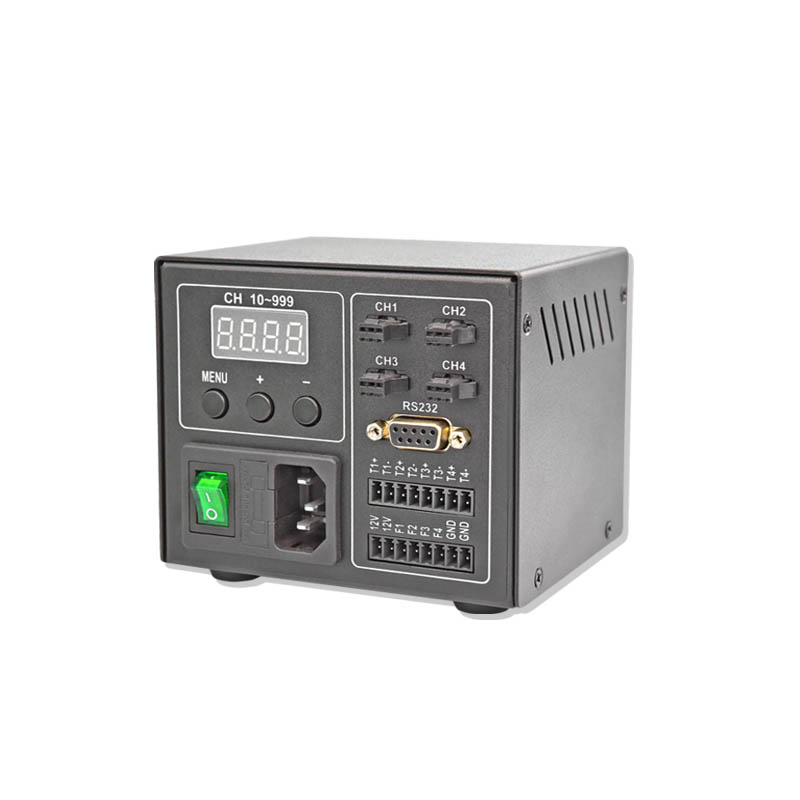

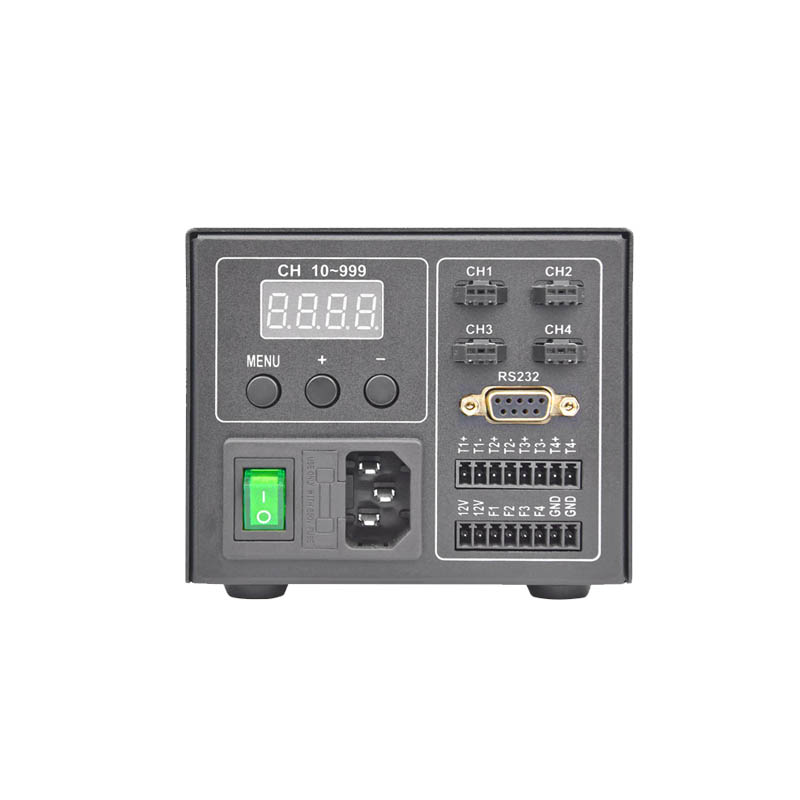

Minimal Delay Strobe Controller
Low latency response brightening light source controller, built-in switch power supply, optional power (65W~350W), optional number of channels, supports RS232 communication interface, minimum response time of 500ns, can increase the brightness of the light source by more than 3 times compared to ordinary controllers, and can be used in sports aerial photography and high-speed photography occasions
| mode | Input Voltage | Max output voltage | Instantaneous Current | Total Power | Number of Channels | Communication Interface |
| DBS-DV65-F03C-48200-2F | VAC 85~264 | DC 48V | 20A | 65W | 2 | RS232 |
| DBS-DV65-F03C-48200-4F | VAC 85~264 | DC 48V | 20A | 65W | 4 | RS232 |
| DBS-DV120-F03C-48200-2F | VAC 85~264 | DC 48V | 20A | 120W | 2 | RS232 |
| DBS-DV120-F03C-48200-4F | VAC 85~264 | DC 48V | 20A | 120W | 4 | RS232 |
| DBS-DV120-F03C-48200-8F | VAC 85~264 | DC 48V | 20A | 120W | 8 | RS232 |
| DBS-DV200-F03C-48200-4F | VAC 85~264 | DC 48V | 20A | 200W | 4 | RS232 |
| DBS-DV200-F03C-48200-8F | VAC 85~264 | DC 48V | 20A | 200W | 8 | RS232 |
| DBS-DV350-F03C-48200-8F | VAC 85~264 | DC 48V | 20A | 350W | 8 | RS232 |
