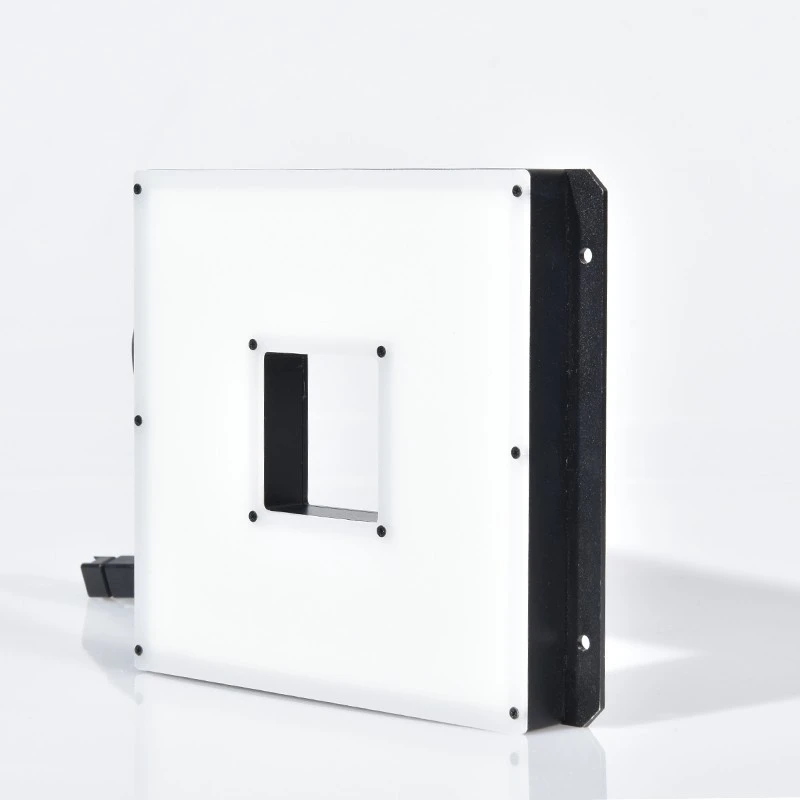

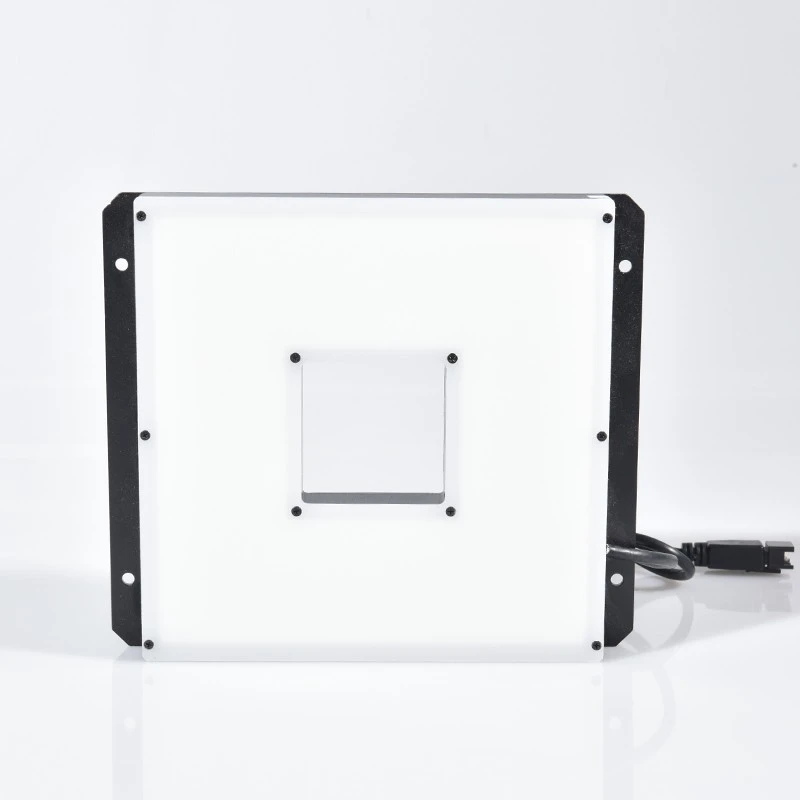

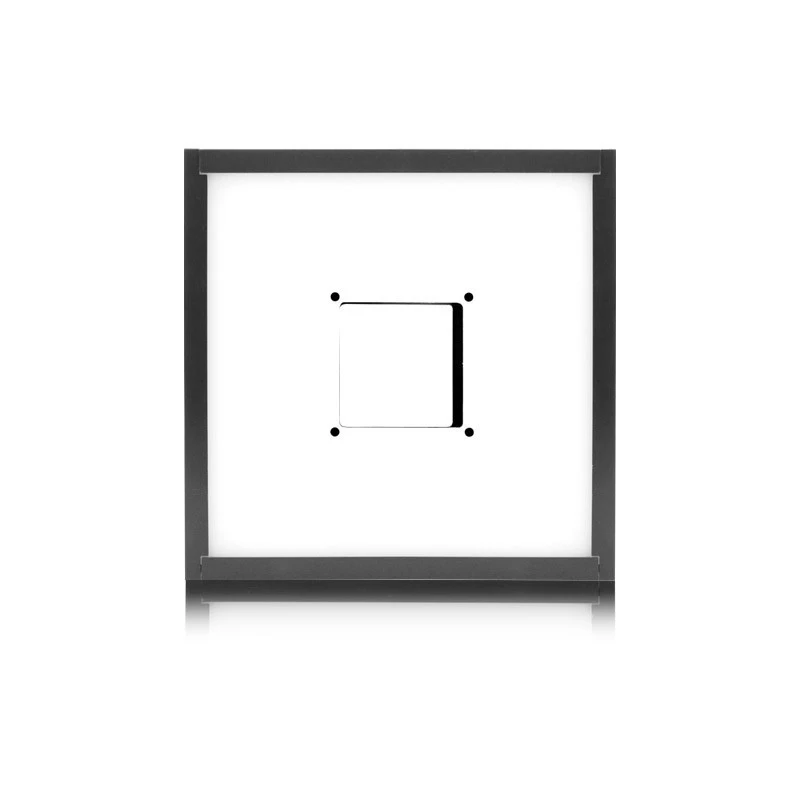

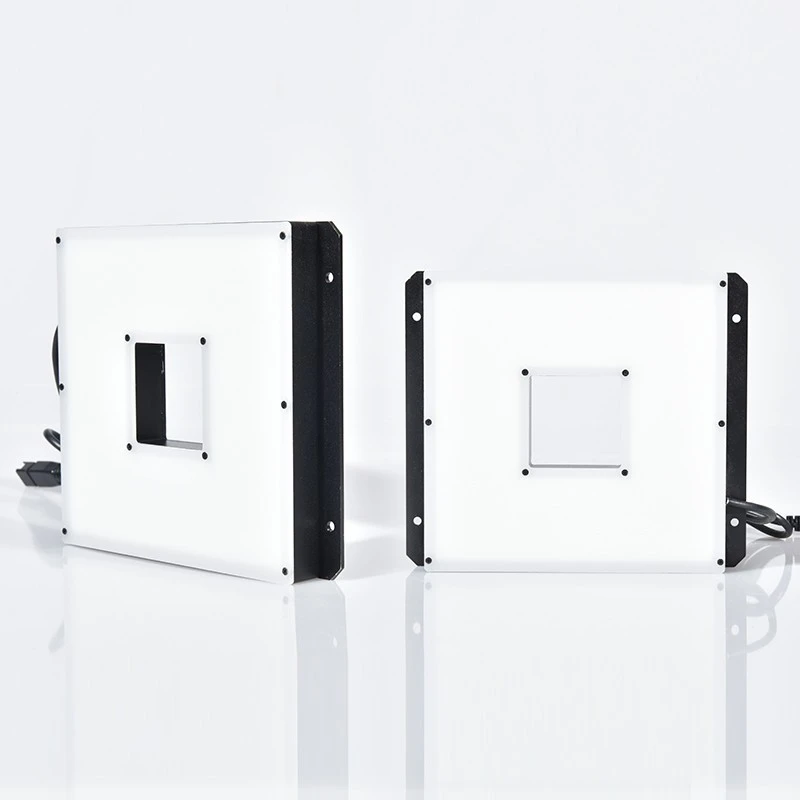

FLK Series Surface Light Source

  • Large-area uniform illumination
  • High-array LED arrangement for high-brightness planar lighting
  • Mainly used for perspective contour imaging and large-format uniform illumination
Get A Quotation
Categories: ,
  • Various size measurements, transmission-type presence/absence detection, and occasions with high brightness requirements
  • Appearance inspection of electronic components and ICs
Light Source Model Color Light-Emitting Surface Dimensions (mm) Voltage (V) Power (W)
Length Width Height
DBS-FLK100200F-40W White 100 200 20 24 10
DBS-FLK100200F-40B Blue 100 200 20 24 10
DBS-FLK100200F-40R Red 100 200 20 24 10
DBS-FLK100200F-40G Green 100 200 20 24 10
DBS-FLK200300F-50W White 200 300 20 24 38.4
DBS-FLK200300F-50B Blue 200 300 20 24 38.4
DBS-FLK200300F-50R Red 200 300 20 24 38.4
DBS-FLK200300F-50G Green 200 300 20 24 38.4
DBS-FLK200300F-60W White 200 300 20 24 37
DBS-FLK200300F-60B Blue 200 300 20 24 37
DBS-FLK200300F-60R Red 200 300 20 24 37
DBS-FLK200300F-60G Green 200 300 20 24 37
DBS-FLK250400F-60W White 250 400 20 24 60
DBS-FLK250400F-60B Blue 250 400 20 24 60
DBS-FLK250400F-60R Red 250 400 20 24 60
DBS-FLK250400F-60G Green 250 400 20 24 60
DBS-FLK300300F-60W White 300 300 20 24 57.6
DBS-FLK300300F-60B Blue 300 300 20 24 57.6
DBS-FLK300300F-60R Red 300 300 20 24 57.6
DBS-FLK300300F-60G Green 300 300 20 24 57.6
DBS-FLK400500F-60W White 400 500 20 24 100
DBS-FLK400500F-60B Blue 400 500 20 24 100
DBS-FLK400500F-60R Red 400 500 20 24 100
DBS-FLK400500F-60G Green 400 500 20 24 100
DBS-FLK500600F-60W White 500 600 20 24 115
DBS-FLK500600F-60B Blue 500 600 20 24 115
DBS-FLK500600F-60R Red 500 600 20 24 115
DBS-FLK500600F-60G Green 500 600 20 24 115

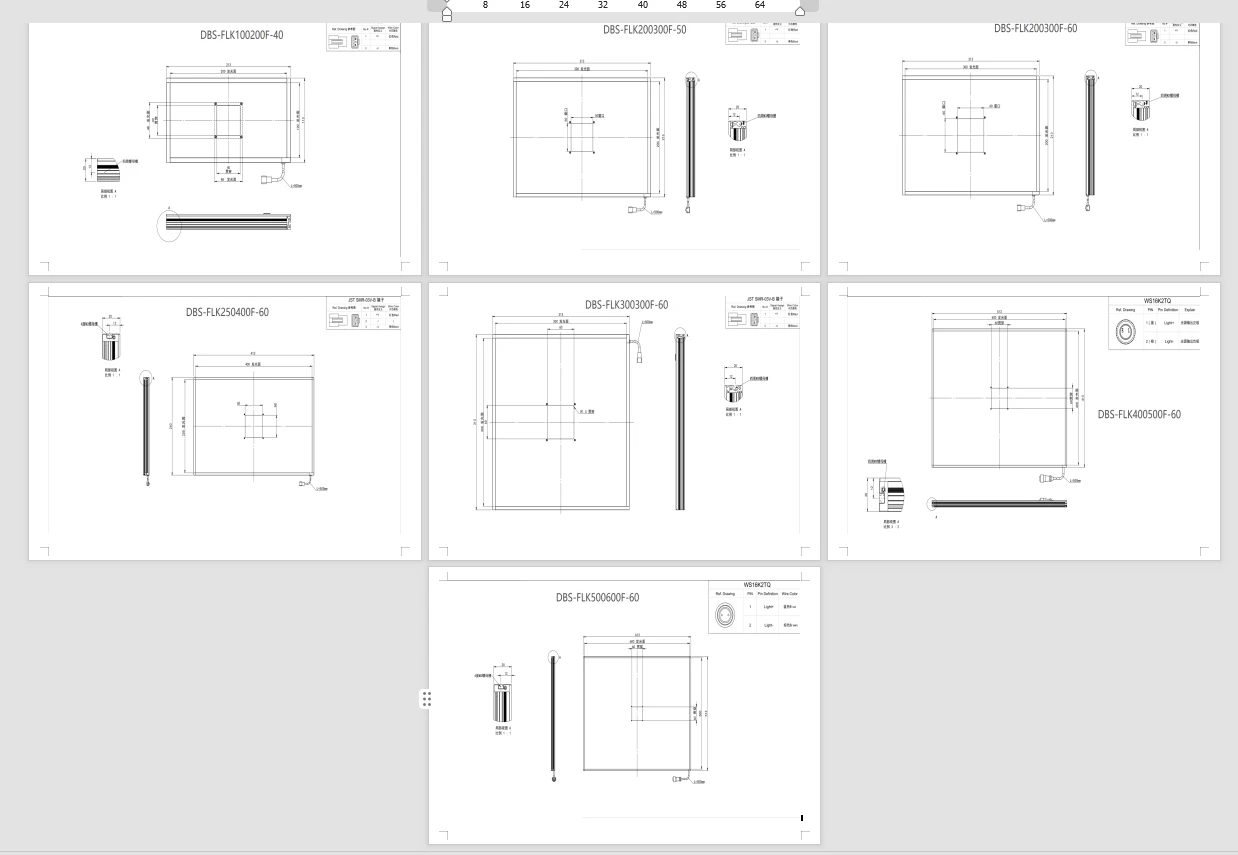

flk series surface light source
FLK-series-surface-light-source
Download File
