- Support RS232/RS485 communication
- External 24V power supply
- Low trigger response time
- Support external trigger mode
- Support millisecond-level strobe and microsecond-level strobe
- Brightness and mode can be set manually
- 5~24V bidirectional triggering, which can adapt to high and low level trigger modes
- Small size, easy to install, screw mounting or C45 snap rail mounting
External Power Supply Controller Type
PWM Dimming Constant Voltage Controller, External DC 12~24V Power Supply, Adjustable Output Current, Configurable Number of Channels, Supports RS232/RS485 Communication Interface, Suitable for Illuminating Full-Face Array Cameras.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-DV-N04C-24040-2 | DC 24V | DC 24V | 4A | 200W | 2 | RS485 |
| DBS-DV-N04C-24040-4 | DC 24V | DC 24V | 4A | 200W | 4 | RS485 |

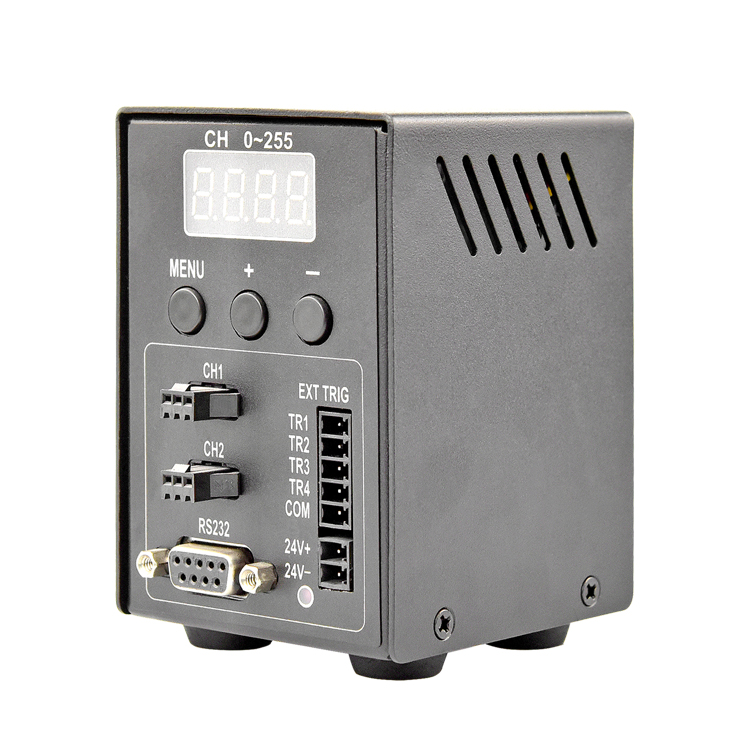

| LD-NP24DC-2T5A | DC 24V | DC 24V | 5A | 200W | 2 | RS232 |

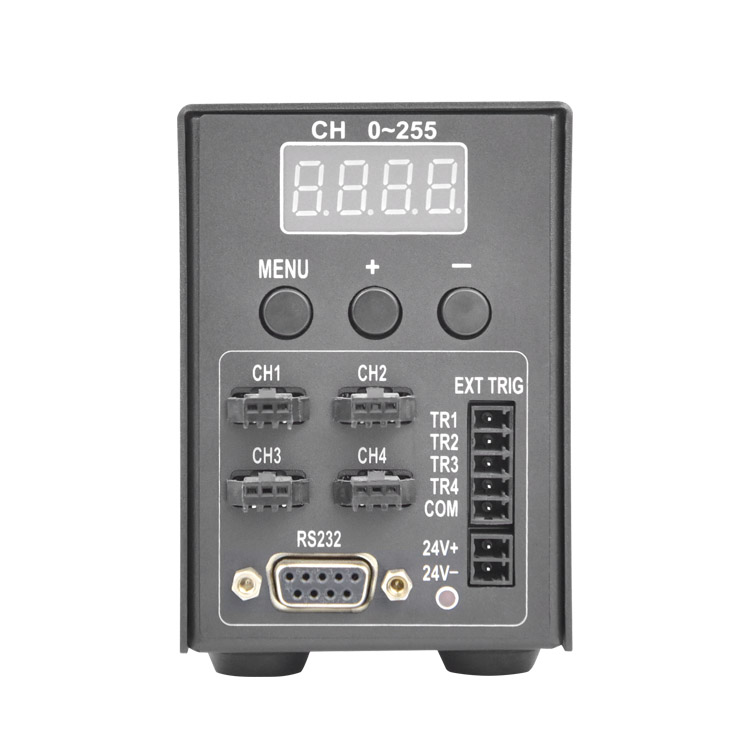

| LD-NP24DC-4T5A | DC 24V | DC 24V | 5A | 200W | 4 | RS232 |
| DBS-DV-N02C-24030-8 | DC 24V | DC 24V | 3A | 200W | 8 | RS232 |

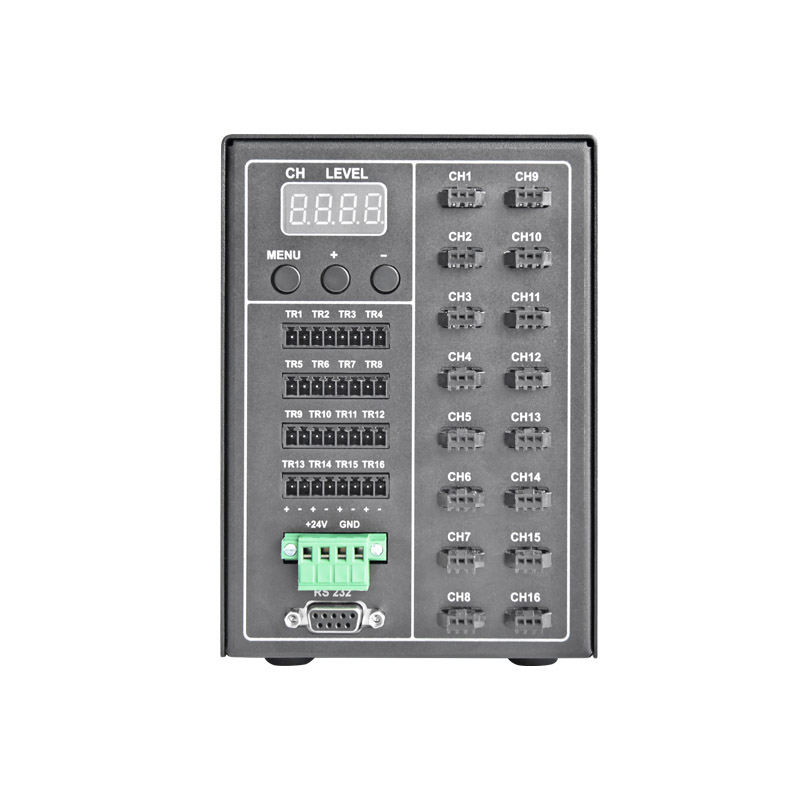

| DBS-DV-N02C-24020-16 | DC 24V | DC 24V | 2A | 200W | 16 | RS232 |
