- Supports RS232 communication
- Built-in 24V switching power supply
- Low trigger response time
- Supports external trigger mode
- Supports millisecond-level stroboscopic and microsecond-level stroboscopic functions
- Manual adjustment of brightness and mode
- 5~24V bidirectional trigger, compatible with high/low level trigger modes
DVXXX-N03C

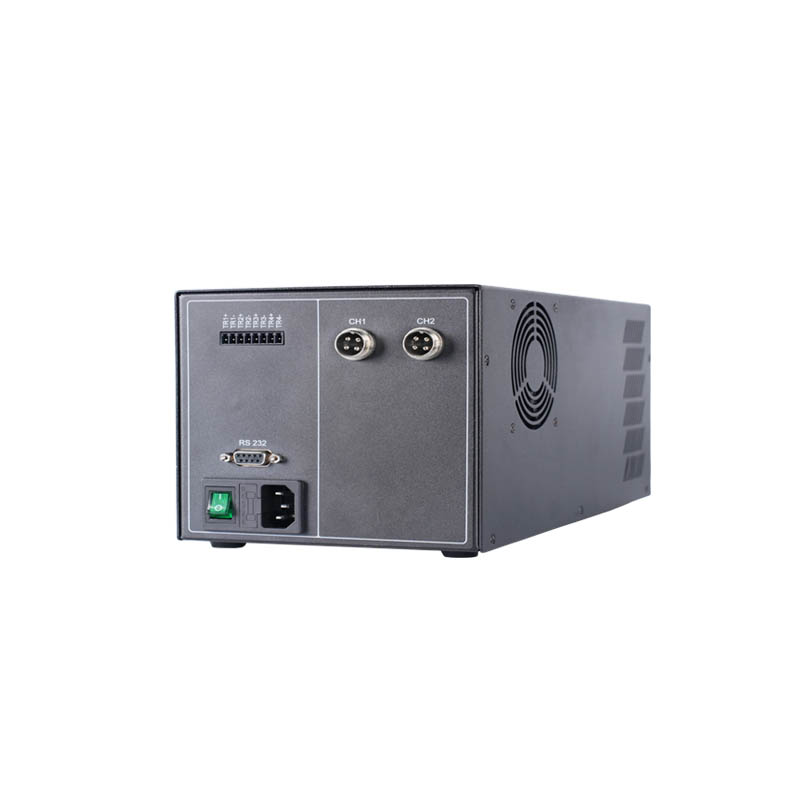

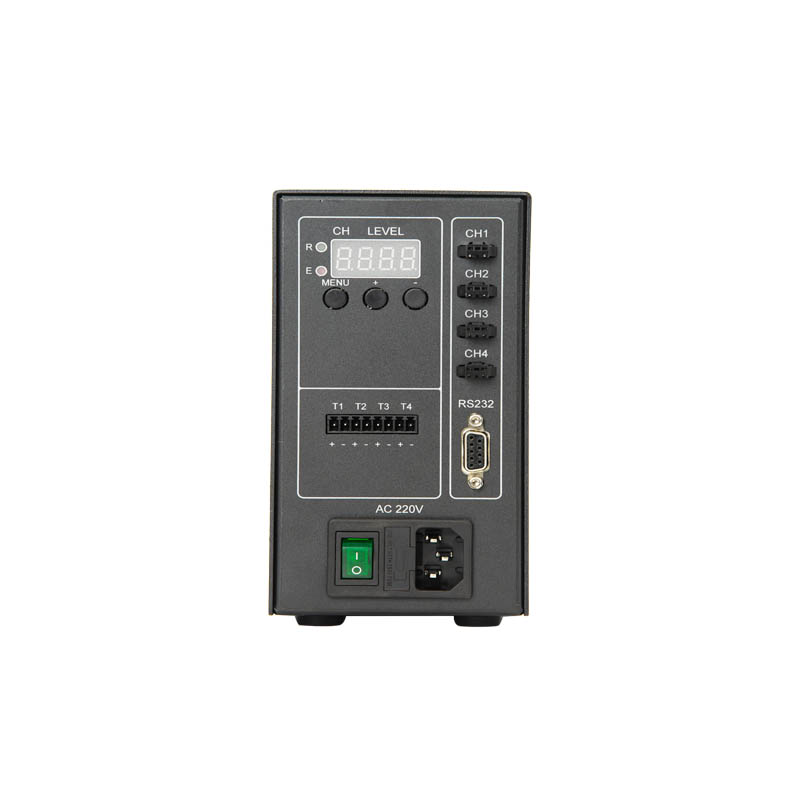

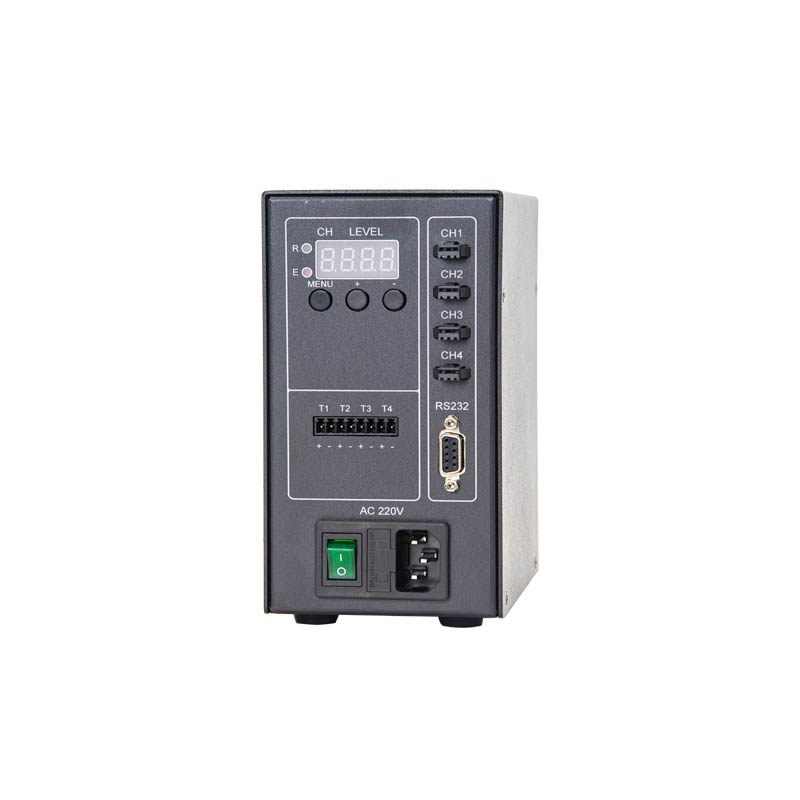

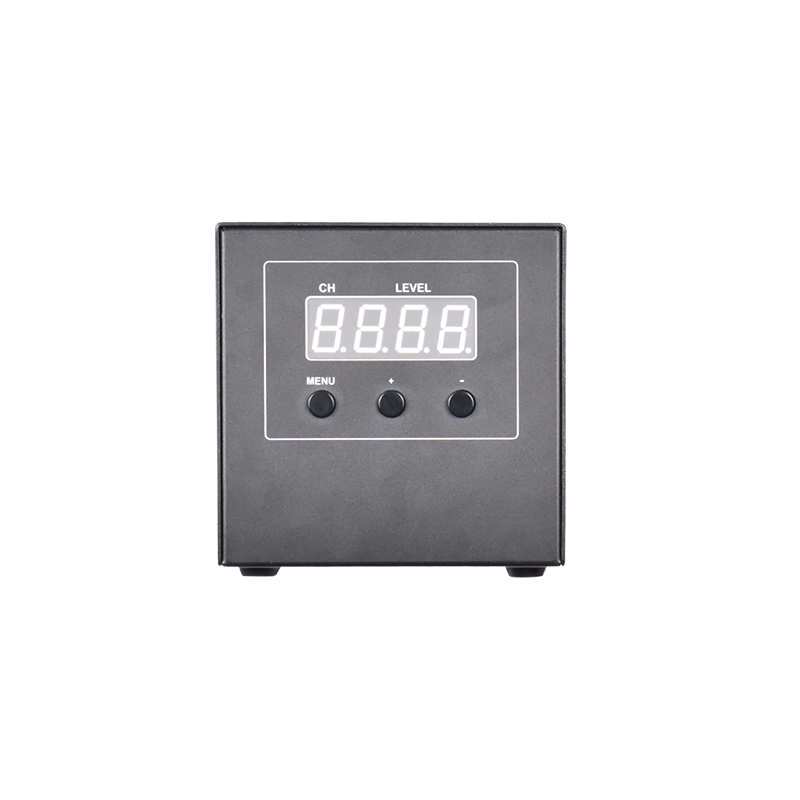

High power PWM dimming constant voltage controller, built-in switch power supply, optional power (200W~600W), optional number of channels, supports RS232 communication interface, can be used as a light source for global array camera illumination.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-DV200-N03C-12120-2 | VAC 85~264 | DC 12V | 12A | 200W | 2 | RS232 |
| DBS-DV200-N03C-12040-4 | VAC 85~264 | DC 12V | 4A | 200W | 4 | RS232 |
| DBS-DV200-N03C-48040-2 | VAC 85~264 | DC 48V | 4A | 200W | 2 | RS232 |
| DBS-DV350-N03C-24120-2 | VAC 176~264 | DC 24V | 12A | 350W | 2 | RS232 |
| DBS-DV350-N03C-24060-4 | VAC 176~264 | DC 24V | 6A | 350W | 4 | RS232 |
| DBS-DV600-N03C-24120-2 | VAC90-132/180-264 | DC 24V | 12A | 600W | 2 | RS232 |
| DBS-DV600-N03C-24060-4 | VAC90-132/180-264 | DC 24V | 6A | 600W | 4 | RS232 |
