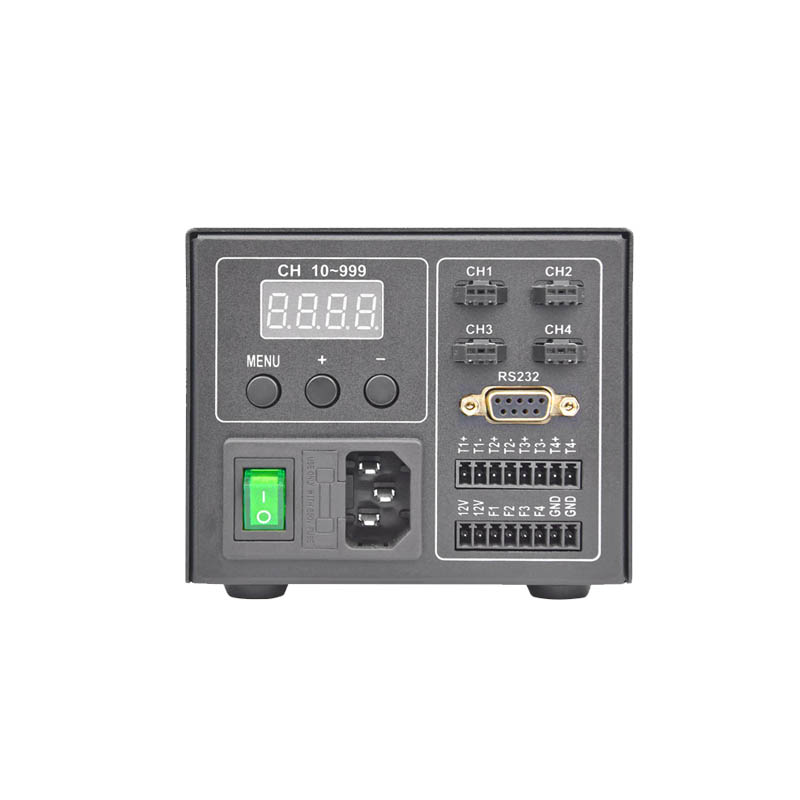

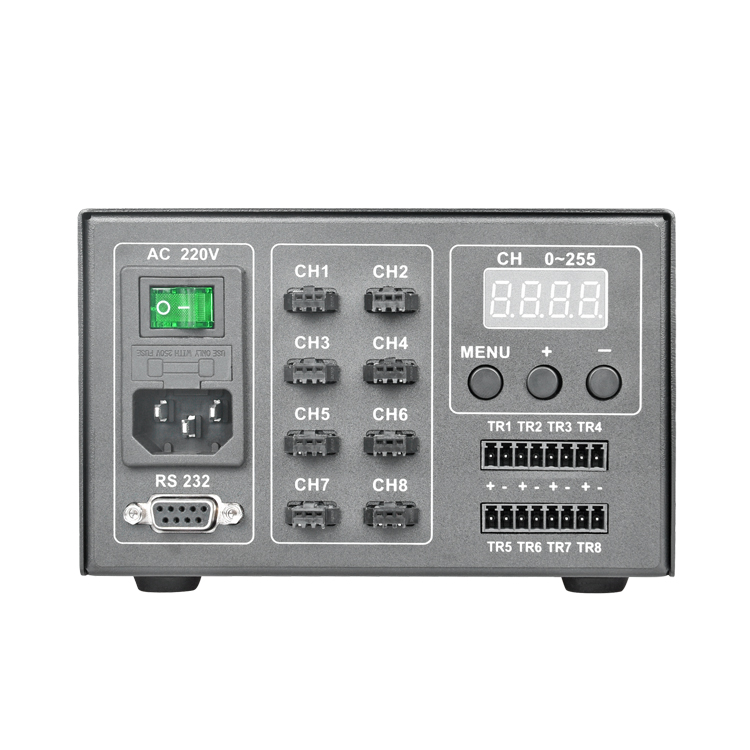

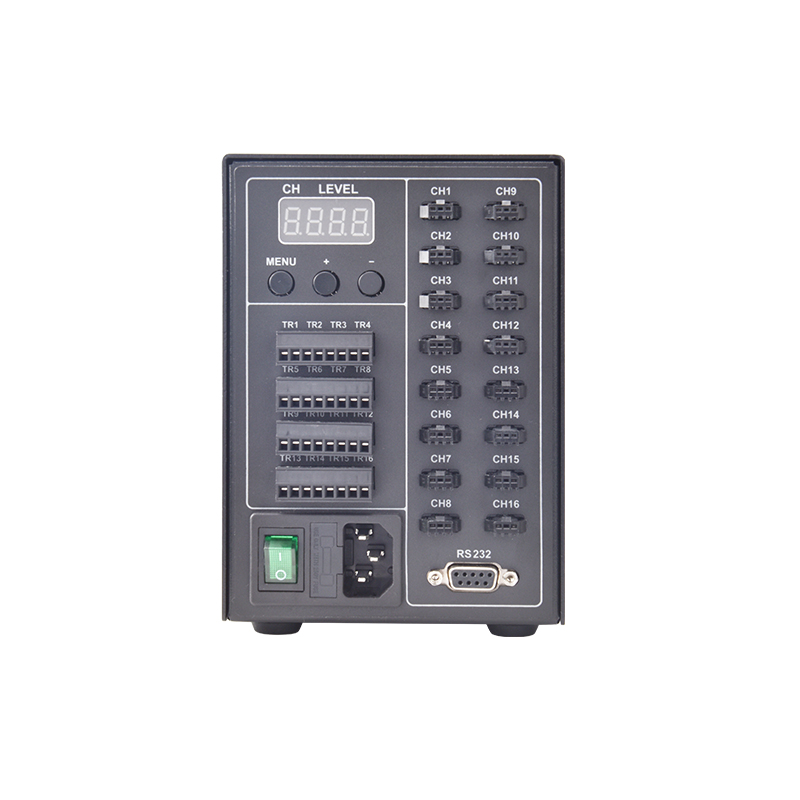

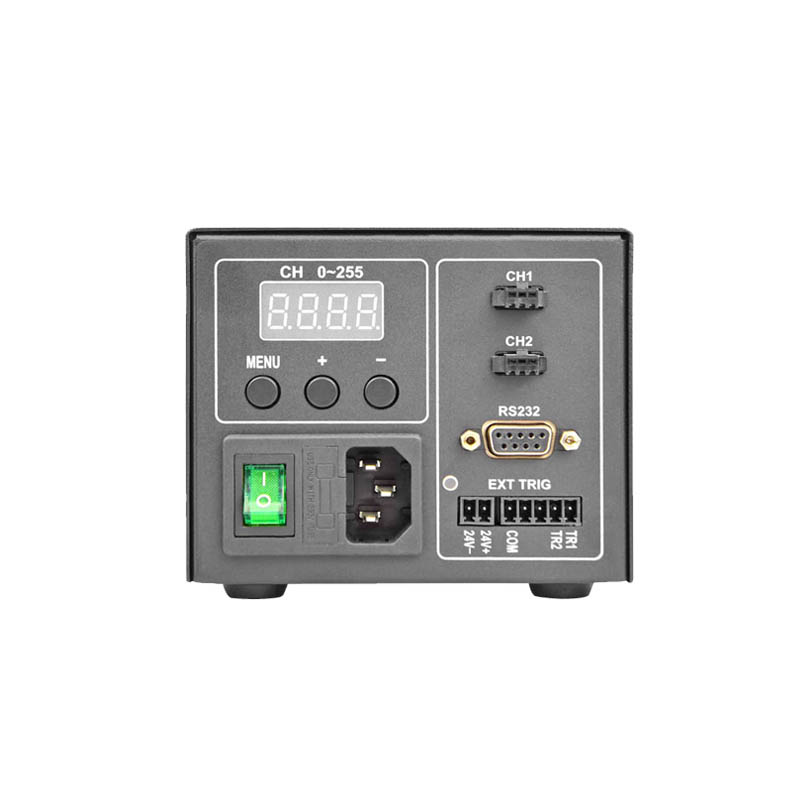

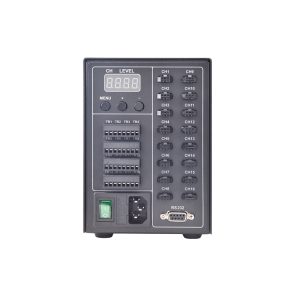

DVXXX-N02C

PWM dimming constant voltage controller, built-in switch power supply, optional power (65W~200W), optional number of channels, supports RS232 communication interface, can be used as a light source for global array camera illumination.

Get A Quotation
Category:
  • Supports RS232 communication
  • Built-in 24V switching power supply
  • Low trigger response time
  • Supports external trigger mode
  • Supports millisecond-level stroboscopic and microsecond-level stroboscopic functions
  • Manual adjustment of brightness and mode
  • 5~24V bidirectional trigger, compatible with high/low level trigger modes
  • Compact size, easy to install (screw mounting or C45 DIN rail mounting)
mode Input Voltage Max output voltage Channel current Total Power Number of Channels Communication Interface
DBS-DV65-N02C-12025-2 VAC 85~264 DC 12V 2.5A 65W 2 RS232
DBS-DV65-N02C-12025-4 VAC 85~264 DC 12V 2.5A 65W 4 RS232
DBS-DV65-N02C-12020-8 VAC 85~264 DC 12V 2.0A 65W 8 RS232
DBS-DV65-N02C-24025-2 VAC 85~264 DC 24V 2.5A 65W 2 RS232
DBS-DV65-N02C-24025-4 VAC 85~264 DC 24V 2.5A 65W 4 RS232
DBS-DV65-N02C-24020-8 VAC 85~264 DC 24V 2.0A 65W 8 RS232
DBS-DV120-N02C-12050-2 VAC 85~264 DC 12V 5.0A 120W 2 RS232
DBS-DV120-N02C-12040-4 VAC 85~264 DC 12V 4.0A 120W 4 RS232
DBS-DV120-N02C-12030-8 VAC 85~264 DC 12V 3.0A 120W 8 RS232
DBS-DV120-N02C-12020-16 VAC 85~264 DC 12V 2.0A 120W 16 RS232
DBS-DV120-N02C-24040-2 VAC 85~264 DC 24V 4.0A 120W 2 RS232
DBS-DV120-N02C-24040-4 VAC 85~264 DC 24V 4.0A 120W 4 RS232
DBS-DV120-N02C-24030-8 VAC 85~264 DC 24V 3.0A 120W 8 RS232
DBS-DV120-N02C-24020-16 VAC 85~264 DC 24V 2.0A 120W 16 RS232
DBS-DV200-N02C-24040-2 VAC 85~264 DC 24V 4.0A 200W 2 RS232
DBS-DV200-N02C-24040-4 VAC 85~264 DC 24V 4.0A 200W 4 RS232
DBS-DV200-N02C-24030-8 VAC 85~264 DC 24V 3.0A 200W 8 RS232
DBS-DV200-N02C-24020-16 VAC 85~264 DC 24V 2.0A 200W 16 RS232
N02C Built-in Power Supply Series
