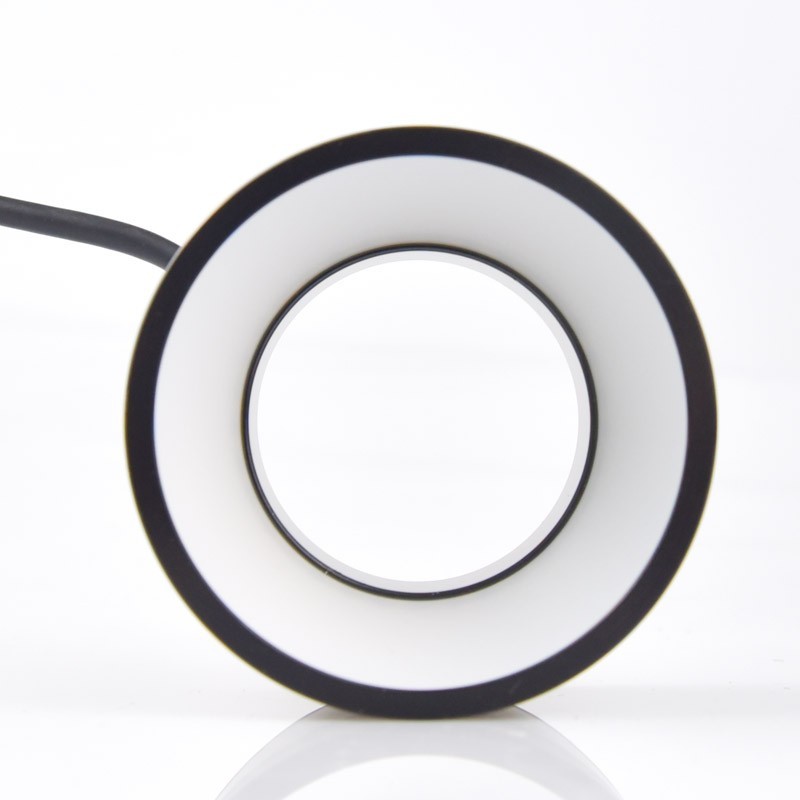

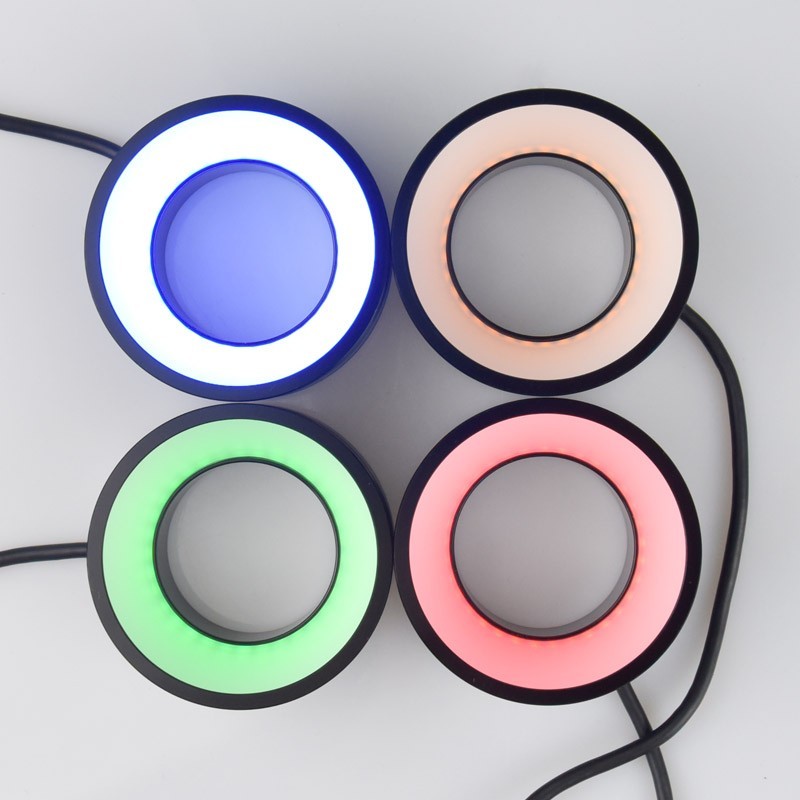

Circular shadowless light source

  • With higher uniformity, special diffuser plates achieve shadowless illumination effect.
Get A Quotation
Category:
Light Source Model Color External Dimensions (mm) Light-Emitting Surface Size Voltage (V) Power (W)
Length Width Height
DBS-RIF2610W White 26 10 23 Φ20.2 24 2.5
DBS-RIF2610B Blue 26 10 23 Φ20.2 24 2.5
DBS-RIF2610R Red 26 10 23 Φ20.2 24 0.8
DBS-RIF2610G Green 26 10 23 Φ20.2 24 2.5
DBS-RIF6638W White 66 40 37 Φ59 24 2.8
DBS-RIF6638B Blue 66 40 37 Φ59 24 2.8
DBS-RIF6638R Red 66 40 37 Φ59 24 1.7
DBS-RIF6638G Green 66 40 37 Φ59 24 2.8
DBS-RIF7042W White 70 42 37 Φ64.2 24 2.9
DBS-RIF7042B Blue 70 42 37 Φ64.2 24 2.9
DBS-RIF7042R Red 70 42 37 Φ64.2 24 1.8
DBS-RIF7042G Green 70 42 37 Φ64.2 24 2.9
DBS-RIF8036W White 80 36 27 Φ73 24 3.1
DBS-RIF8036B Blue 80 36 27 Φ73 24 3.1
DBS-RIF8036R Red 80 36 27 Φ73 24 1.9
DBS-RIF8036G Green 80 36 27 Φ73 24 3.1
DBS-RIF8860W White 88 61 37 Φ81 24 3.4
DBS-RIF8860B Blue 88 61 37 Φ81 24 3.4
DBS-RIF8860R Red 88 61 37 Φ81 24 2.2
DBS-RIF8860G Green 88 61 37 Φ81 24 3.4
DBS-RIF130110W White 130 102 37 24 5.7
DBS-RIF130110B Blue 130 102 37 24 5.7
DBS-RIF130110R Red 130 102 37 24 3.4
DBS-RIF130110G Green 130 102 37 24 5.7
  • Exterior defect detection of plastic parts, bottle mouth defect detection.
  • Hardware edge positioning, etc.
  • Surface bruises, scratches, indentation detection.
circular shadowless light source
Circular shadowless light source
