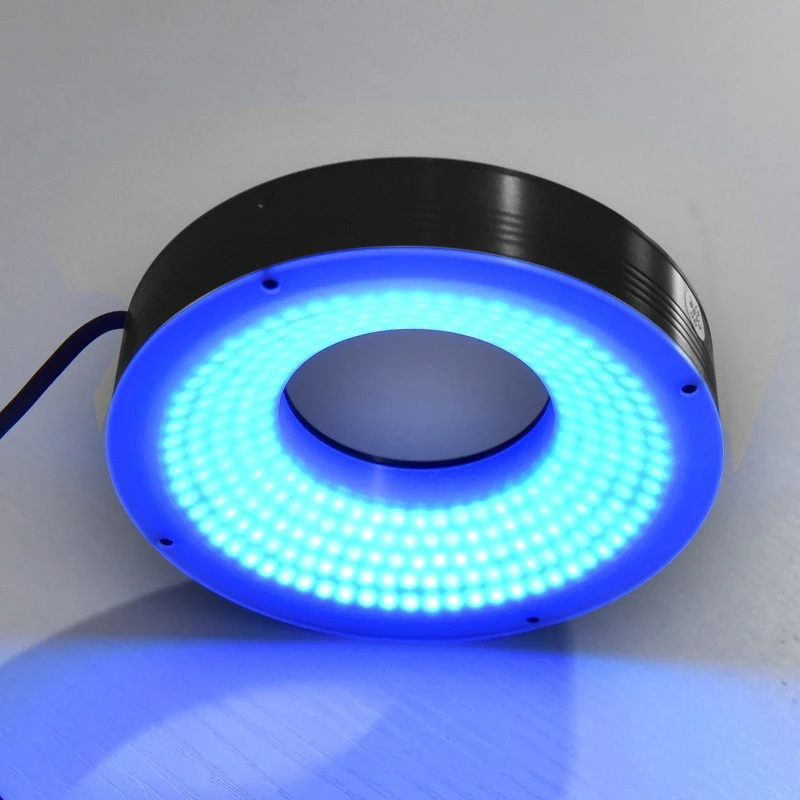

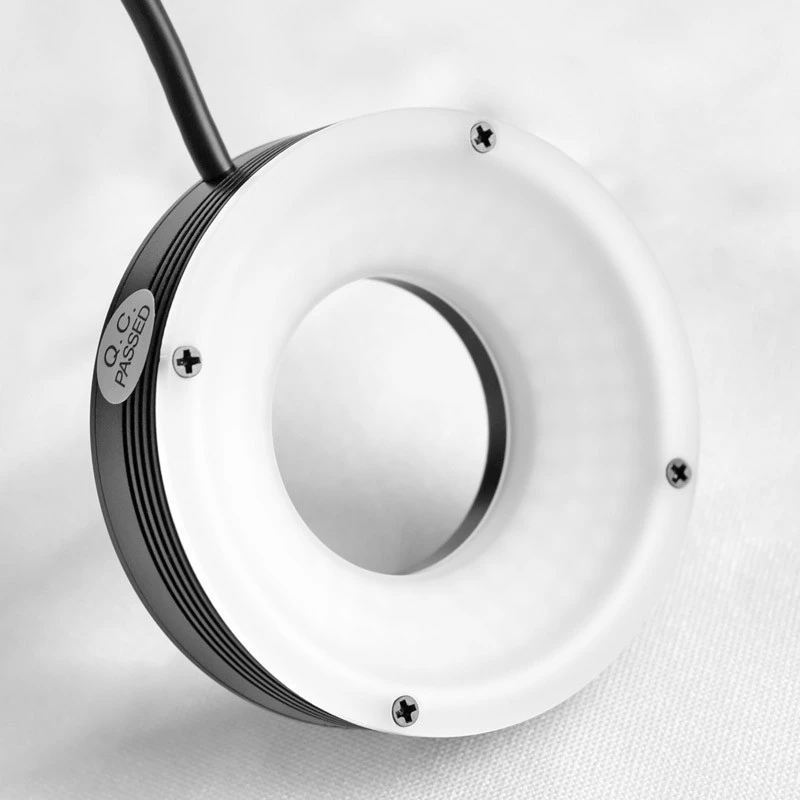

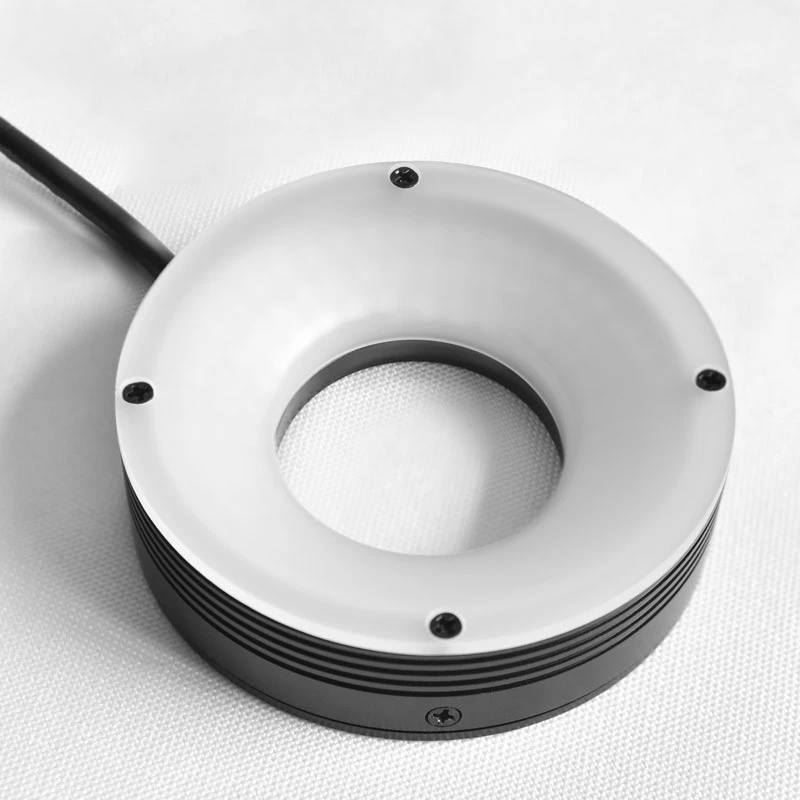

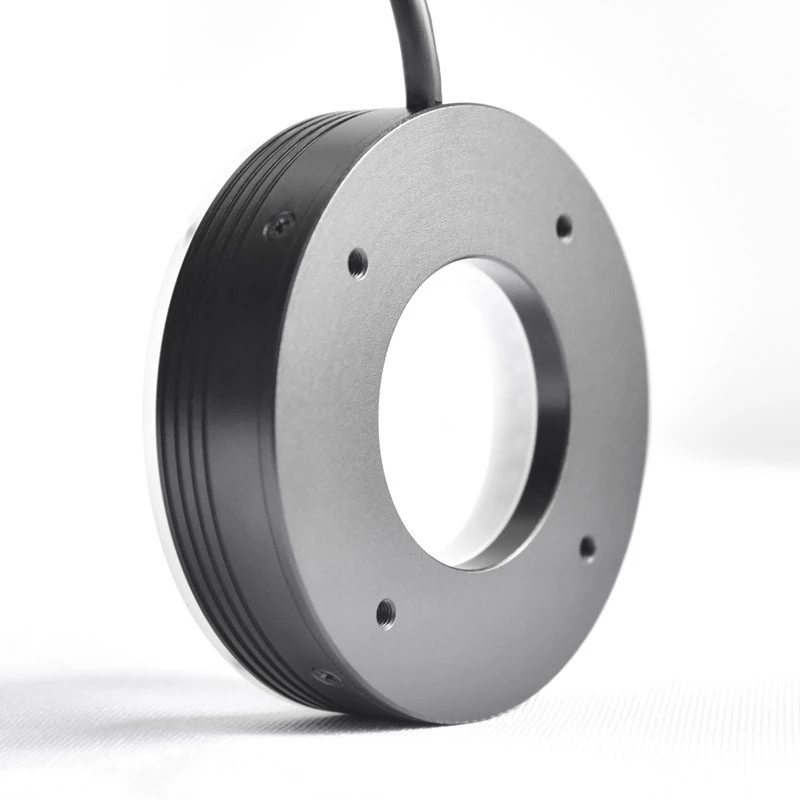

60-Degree Ring Light

  • High-density LED arrangement and scientific structural design.
  • Illumination from 360° direction to eliminate shadows.
  • A hole in the center enables perfect alignment between the light source and the camera lens.
  • Multiple angles available to adapt to applications with different working distances.
Get A Quotation
Categories: ,
Applicable to:



  • Connector pin positioning
  • QR code recognition
  • IC component inspection
  • Microscope illumination for PCB substrate inspection
  • Electronic component inspection and appearance defect inspection, etc.
  • LCD calibration and plastic container inspection
  • Integrated circuit (IC) mark inspection
Light Source Model Color Physical Dimensions (mm) Beam Angle Voltage (V) Power (W)
Outer Diameter Inner Diameter Height
DBS-R3660W (with Diffuser) White 36 13.2 17.5 60 24 1
DBS-R3660B (with Diffuser) Blue 36 13.2 17.5 60 24 1
DBS-R3660R (with Diffuser) Red 36 13.2 17.5 60 24 1
DBS-R3660G (with Diffuser) Green 36 13.2 17.5 60 24 1
DBS-R4260W (with Diffuser) White 42 18 20 60 24 1.2
DBS-R4260B (with Diffuser) Blue 42 18 20 60 24 1.2
DBS-R4260R (with Diffuser) Red 42 18 20 60 24 1.2
DBS-R4260G (with Diffuser) Green 42 18 20 60 24 1.2
DBS-R4060W (without Diffuser) White 42 18 20 60 24 1.2
DBS-R4260B (without Diffuser) Blue 42 18 20 60 24 1.2
DBS-R4260R (without Diffuser) Red 42 18 20 60 24 1.2
DBS-R4260G (without Diffuser) Green 42 18 20 60 24 1.2
DBS-R5260W White 52 23.5 19 60 24 1.7
DBS-R5260B Blue 52 23.5 19 60 24 1.7
DBS-R5260R Red 52 23.5 19 60 24 1.7
DBS-R5260G Green 52 23.5 19 60 24 1.7
DBS-R6760W White 67 32 20 60 24 2.9
DBS-R6760B Blue 67 32 20 60 24 2.9
DBS-R6760R Red 67 32 20 60 24 2.9
DBS-R6760G Green 67 32 20 60 24 2.9
DBS-R7460W White 74 30 22 60 24 2.6
DBS-R7460B Blue 74 30 22 60 24 2.6
DBS-R7460R Red 74 30 22 60 24 2.6
DBS-R7460G Green 74 30 22 60 24 2.6
DBS-R9060W White 90 40 24 60 24 6
DBS-R9060B Blue 90 40 24 60 24 6
DBS-R9060R Red 90 40 24 60 24 6
DBS-R9060G Green 90 40 24 60 24 6
DBS-R12060W White 120 55 25 60 24 10.8
DBS-R12060B Blue 120 55 25 60 24 10.8
DBS-R12060R Red 120 55 25 60 24 10.8
DBS-R12060G Green 120 55 25 60 24 10.8
DBS-R15060W White 150 95 25 60 24 8.9
DBS-R15060B Blue 150 95 25 60 24 8.9
DBS-R15060R Red 150 95 25 60 24 8.9
DBS-R15060G Green 150 95 25 60 24 8.9
60 degree ring light

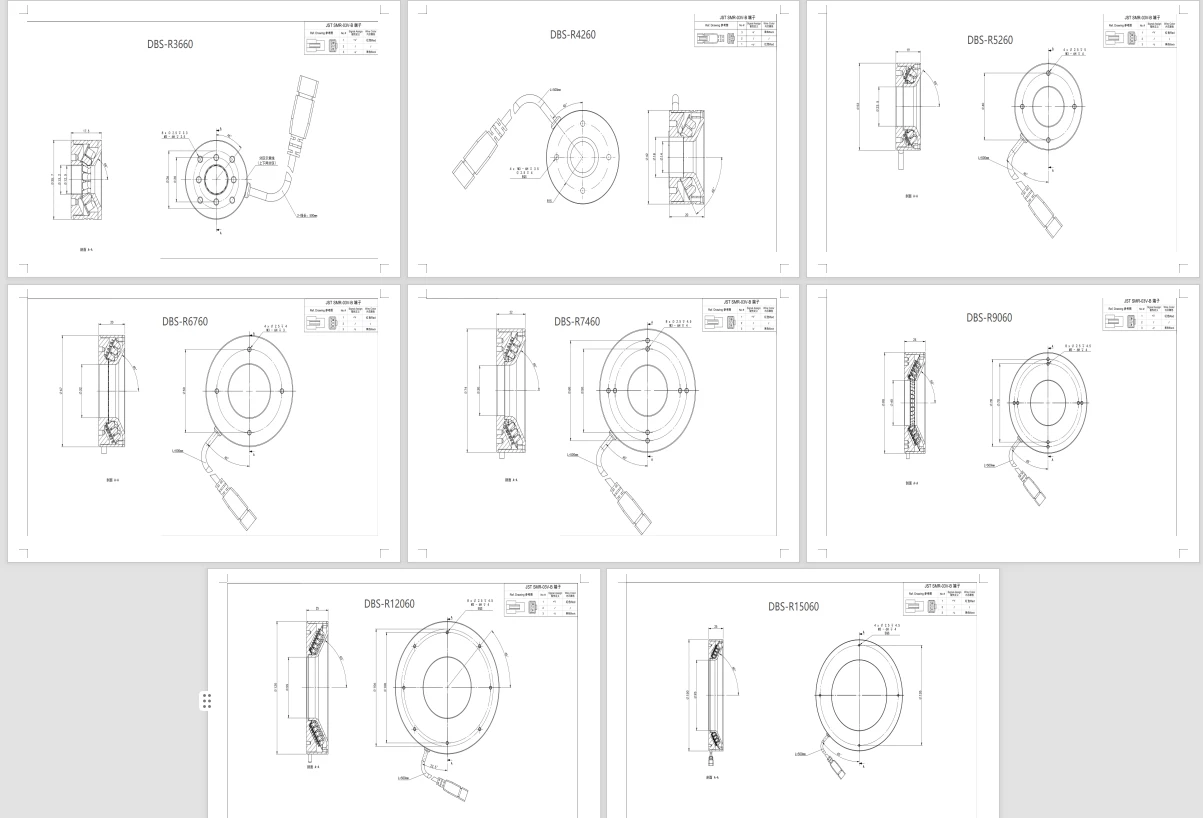

60-degree-ring-light-source-dimension-drawing
