- Digital constant current controller with constant current output and flicker-free brightness
- Supports RS232 communication
- Output current of each channel is adjustable, with a maximum current of 1A
- Supports external trigger mode
- Supports millisecond-level and microsecond-level strobe
- Manual adjustment of brightness and operating mode
- 5~24V unidirectional trigger, compatible with both high-level and low-level trigger modes
- Equipped with overheat protection and output short-circuit protection
- Compact size for easy installation (screw mounting or C45 DIN rail mounting)

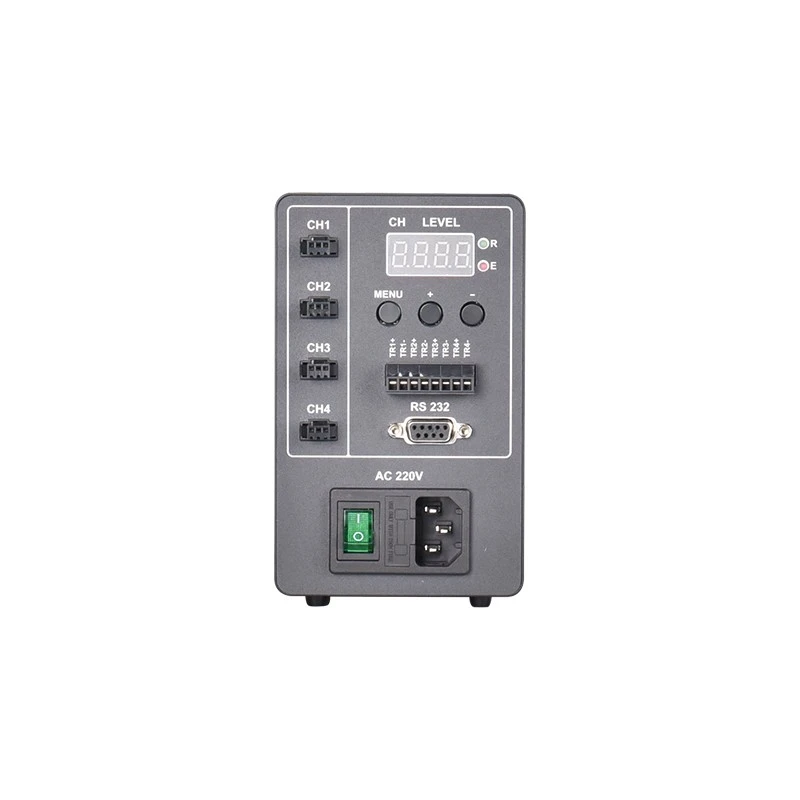

Point Light Source Driver
Point light source constant current type light source controller, built-in switching power supply, power 65W, channel number optional, supports RS232 communication interface, has the advantages of stable brightness, good dimming linearity, etc., can be used for lighting sources for full-frame cameras, rolling shutter cameras, etc.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-65-MP01C-05010-2 | VAC 85~264 | DC 5V | 1A | 65W | 2 | RS232 |
| DBS-65-MP01C-05010-4 | VAC 85~264 | DC 5V | 1A | 65W | 4 | RS232 |
