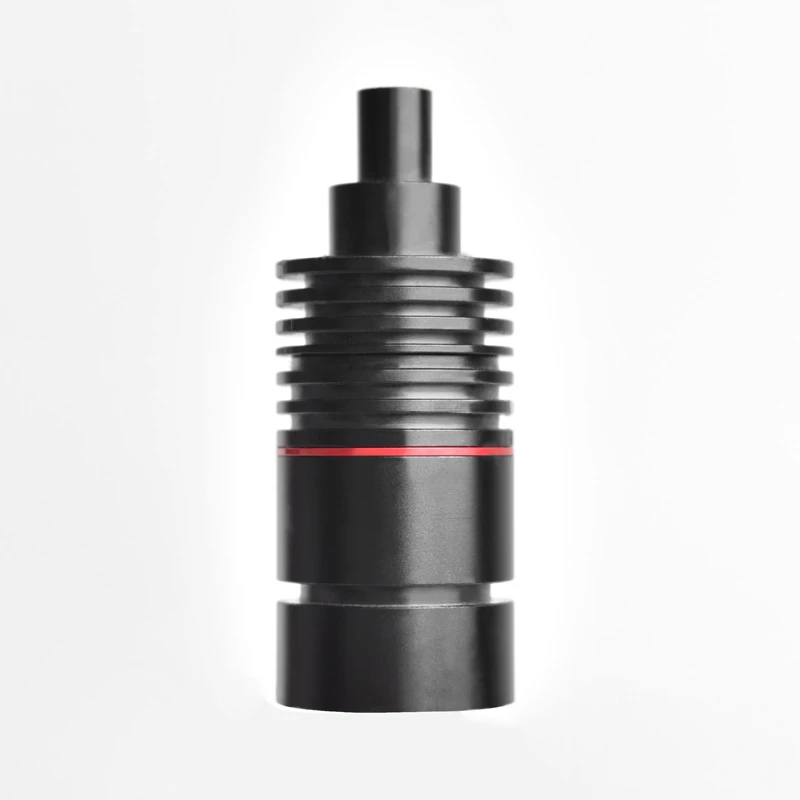

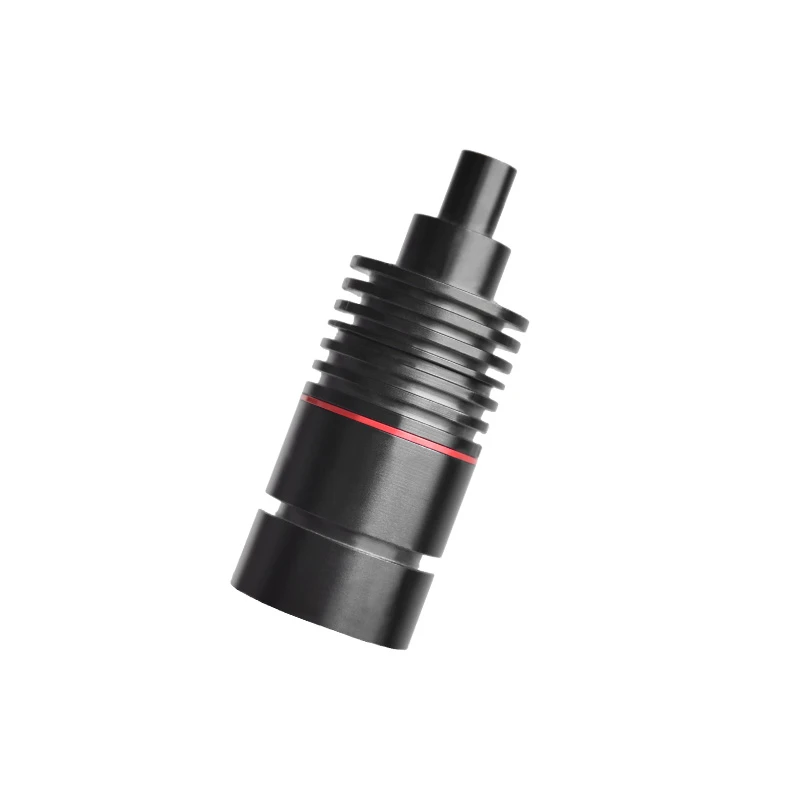

High brightness with a small light-emitting area

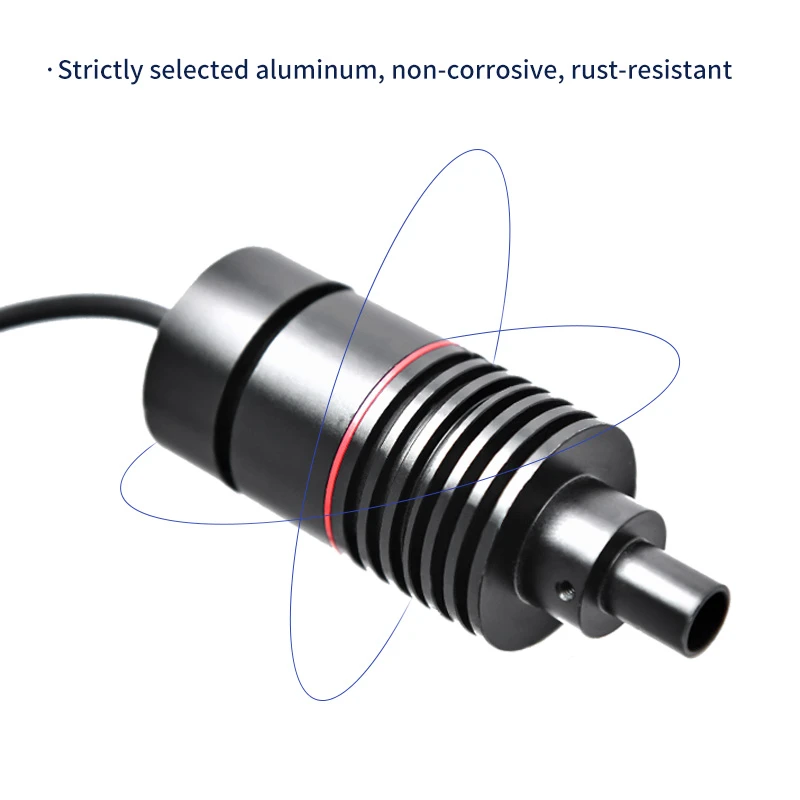

Compact and sleek design, efficient heat dissipation, low power consumption, and long service life
A replacement for fiber optic halogen lamps, especially suitable for coaxial illumination of lenses

Applicable to: Chip and wafer defect detection, marker point positioning, silk screen positioning detection, micro-component detection, liquid crystal panel (LCD panel) detection, etc.

Get A Quotation

Categories: Point Light Source, Standard Light Source

Description

Illuminance: Adjustable within the range of 0 to 150,000 LUX (within 40 millimeters of the light source)

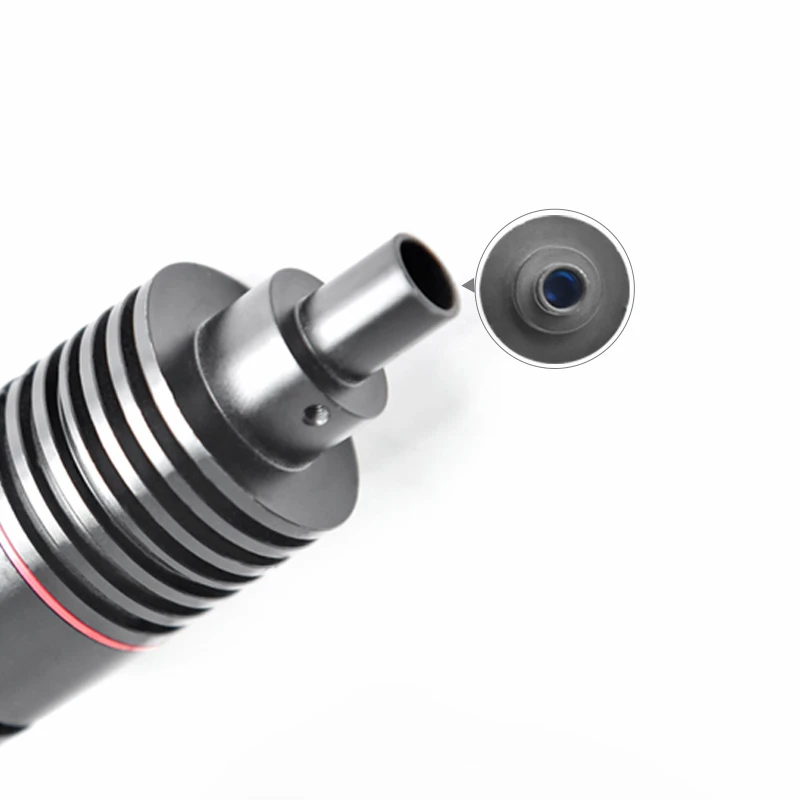

Light output aperture: 6mm, Divergence angle: Within 30°

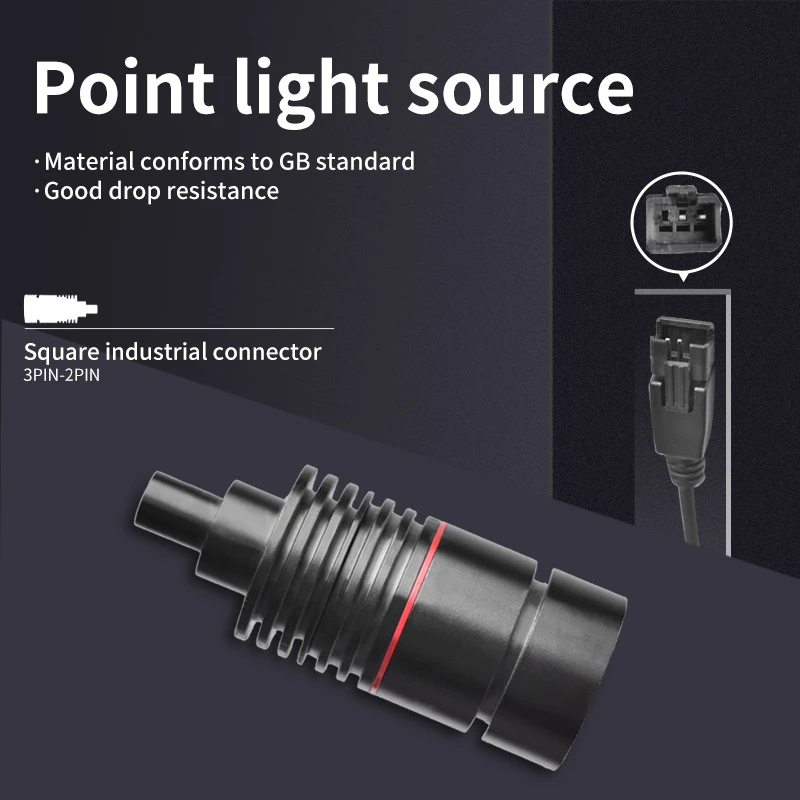

Light source power interface: SM3P, Voltage: 5V, Power: 3W

Light Source Model	Color	Power Consumption	Color Temperature/Wavelength
DBS-D6-W	White	3-5W	6000-7000K
DBS-D6-B	Blue	3-5W	B: 460-470NM
DBS-D6-R	Red	3-5W	620-625NM
DBS-D6-G	Green	3-5W	520-530NM
DBS-D6-IR	Infrared (IR)	3-5W	IR: 850-940NM
DBS-D6-UV	Ultraviolet (UV)	3-5W	UV: 365-395NM

point light source

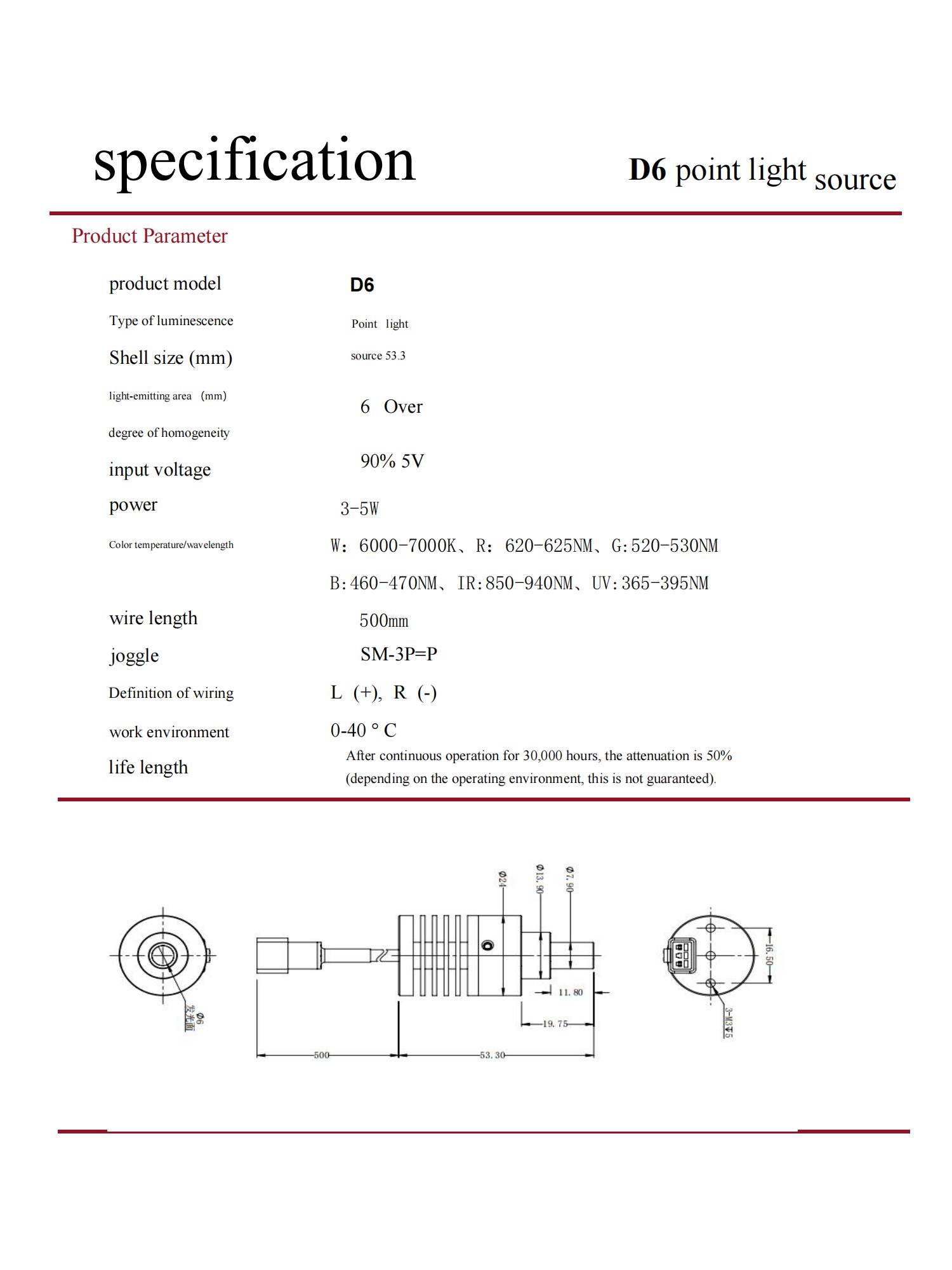

Specification Sheet for D6 Point Light Source
