- PCB substrate inspection, identification of the presence or absence of PCB components, etc.
- Electronic component inspection, metal surface inspection, appearance defect inspection, etc.
- Image scanning, printed matter character recognition and inspection, surface crack inspection.
- Mobile phone case positioning, LCD panel inspection.

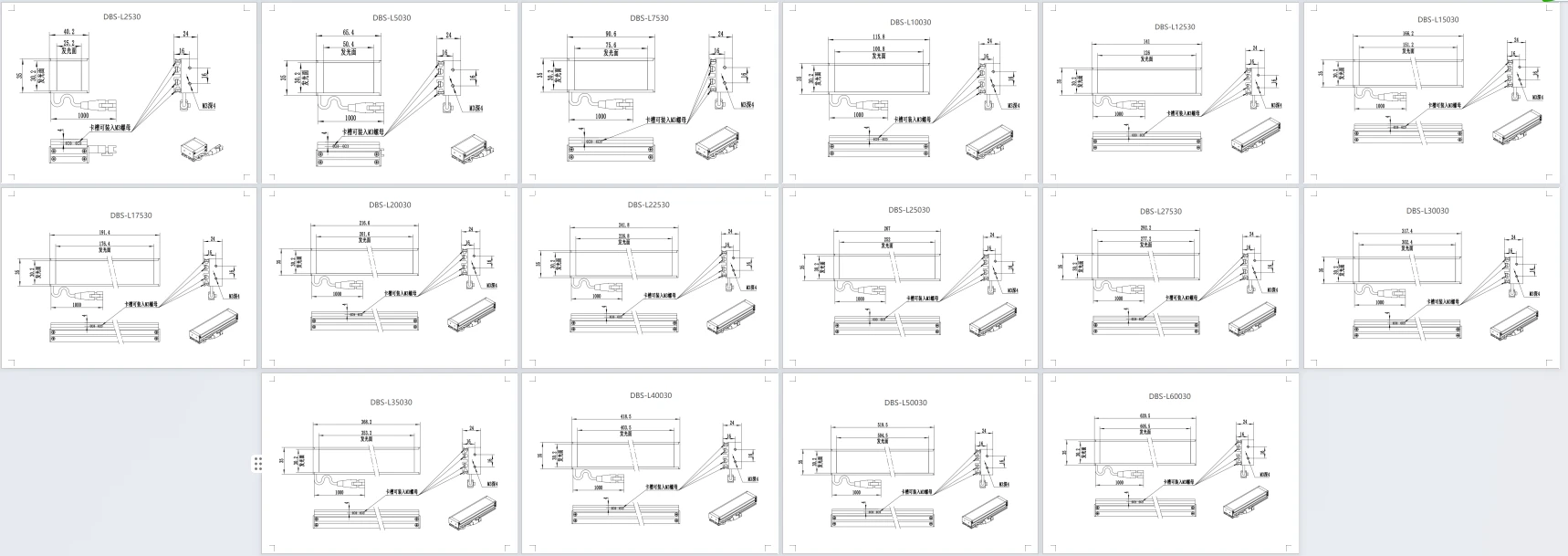

| Light Source Model | Color | Overall Dimensions (mm) | Emitting Surface Size | Voltage (V) | Power (W) | ||
|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||
| DBS-L2530W | White | 40.2 | 35 | 24 | 25.2*30.2 | 24 | 1.73 |
| DBS-L2530B | Blue | 40.2 | 35 | 24 | 25.2*30.2 | 24 | 1.73 |
| DBS-L2530R | Red | 40.2 | 35 | 24 | 25.2*30.2 | 24 | 1.73 |
| DBS-L2530G | Green | 40.2 | 35 | 24 | 25.2*30.2 | 24 | 1.73 |
| DBS-L5030W | White | 65.4 | 35 | 24 | 50.4*30.2 | 24 | 2.4 |
| DBS-L5030B | Blue | 65.4 | 35 | 24 | 50.4*30.2 | 24 | 2.4 |
| DBS-L5030R | Red | 65.4 | 35 | 24 | 50.4*30.2 | 24 | 2.4 |
| DBS-L5030G | Green | 65.4 | 35 | 24 | 50.4*30.2 | 24 | 2.4 |
| DBS-L7530W | White | 90.6 | 35 | 24 | 75.6*30.2 | 24 | 3.6 |
| DBS-L7530B | Blue | 90.6 | 35 | 24 | 75.6*30.2 | 24 | 3.6 |
| DBS-L7530R | Red | 90.6 | 35 | 24 | 75.6*30.2 | 24 | 3.6 |
| DBS-L7530G | Green | 90.6 | 35 | 24 | 75.6*30.2 | 24 | 3.6 |
| DBS-L10030W | White | 115.8 | 35 | 24 | 100.8*30.2 | 24 | 1.38 |
| DBS-L10030B | Blue | 115.8 | 35 | 24 | 100.8*30.2 | 24 | 1.38 |
| DBS-L10030R | Red | 115.8 | 35 | 24 | 100.8*30.2 | 24 | 1.38 |
| DBS-L10030G | Green | 115.8 | 35 | 24 | 100.8*30.2 | 24 | 1.38 |
| DBS-L12530W | White | 141 | 35 | 24 | 126*30.2 | 24 | 6 |
| DBS-L12530B | Blue | 141 | 35 | 24 | 126*30.2 | 24 | 6 |
| DBS-L12530R | Red | 141 | 35 | 24 | 126*30.2 | 24 | 6 |
| DBS-L12530G | Green | 141 | 35 | 24 | 126*30.2 | 24 | 6 |
| DBS-L15030W | White | 166.2 | 35 | 24 | 151.2*30.2 | 24 | 7.2 |
| DBS-L15030B | Blue | 166.2 | 35 | 24 | 151.2*30.2 | 24 | 7.2 |
| DBS-L15030R | Red | 166.2 | 35 | 24 | 151.2*30.2 | 24 | 7.2 |
| DBS-L15030G | Green | 166.2 | 35 | 24 | 151.2*30.2 | 24 | 7.2 |
| DBS-L17530W | White | 191.4 | 35 | 24 | 176.4*30.2 | 24 | 8.4 |
| DBS-L17530B | Blue | 191.4 | 35 | 24 | 176.4*30.2 | 24 | 8.4 |
| DBS-L17530R | Red | 191.4 | 35 | 24 | 176.4*30.2 | 24 | 8.4 |
| DBS-L17530G | Green | 191.4 | 35 | 24 | 176.4*30.2 | 24 | 8.4 |
| DBS-L20030W | White | 216.6 | 35 | 24 | 201.6*30.2 | 24 | 9.6 |
| DBS-L20030B | Blue | 216.6 | 35 | 24 | 201.6*30.2 | 24 | 9.6 |
| DBS-L20030R | Red | 216.6 | 35 | 24 | 201.6*30.2 | 24 | 9.6 |
| DBS-L20030G | Green | 216.6 | 35 | 24 | 201.6*30.2 | 24 | 9.6 |
| DBS-L22530W | White | 241.8 | 35 | 24 | 226.8*30.2 | 24 | 10.8 |
| DBS-L22530B | Blue | 241.8 | 35 | 24 | 226.8*30.2 | 24 | 10.8 |
| DBS-L22530R | Red | 241.8 | 35 | 24 | 226.8*30.2 | 24 | 10.8 |
| DBS-L22530G | Green | 241.8 | 35 | 24 | 226.8*30.2 | 24 | 10.8 |
| DBS-L25030W | White | 267 | 35 | 24 | 252*30.2 | 24 | 12 |
| DBS-L25030B | Blue | 267 | 35 | 24 | 252*30.2 | 24 | 12 |
| DBS-L25030R | Red | 267 | 35 | 24 | 252*30.2 | 24 | 12 |
| DBS-L25030G | Green | 267 | 35 | 24 | 252*30.2 | 24 | 12 |
| DBS-L27530W | White | 292.2 | 35 | 24 | 277.2*30.2 | 24 | 13.2 |
| DBS-L27530B | Blue | 292.2 | 35 | 24 | 277.2*30.2 | 24 | 13.2 |
| DBS-L27530R | Red | 292.2 | 35 | 24 | 277.2*30.2 | 24 | 13.2 |
| DBS-L27530G | Green | 292.2 | 35 | 24 | 277.2*30.2 | 24 | 13.2 |
| DBS-L30030W | White | 317.4 | 35 | 24 | 302.4*30.2 | 24 | 14.4 |
| DBS-L30030B | Blue | 317.4 | 35 | 24 | 302.4*30.2 | 24 | 14.4 |
| DBS-L30030R | Red | 317.4 | 35 | 24 | 302.4*30.2 | 24 | 14.4 |
| DBS-L30030G | Green | 317.4 | 35 | 24 | 302.4*30.2 | 24 | 14.4 |
| DBS-L35030W | White | 368.2 | 35 | 24 | 353.2*30.2 | 24 | 16.8 |
| DBS-L35030B | Blue | 368.2 | 35 | 24 | 353.2*30.2 | 24 | 16.8 |
| DBS-L35030R | Red | 368.2 | 35 | 24 | 353.2*30.2 | 24 | 16.8 |
| DBS-L35030R | Green | 368.2 | 35 | 24 | 353.2*30.2 | 24 | 16.8 |
| DBS-L40030W | White | 418.5 | 35 | 24 | 403.5*30.2 | 24 | 19.2 |
| DBS-L40030B | Blue | 418.5 | 35 | 24 | 403.5*30.2 | 24 | 19.2 |
| DBS-L40030R | Red | 418.5 | 35 | 24 | 403.5*30.2 | 24 | 19.2 |
| DBS-L40030G | Green | 418.5 | 35 | 24 | 403.5*30.2 | 24 | 19.2 |
| DBS-L50030W | White | 519.5 | 35 | 24 | 504.5*30.2 | 24 | 24 |
| DBS-L50030B | Blue | 519.5 | 35 | 24 | 504.5*30.2 | 24 | 24 |
| DBS-L50030R | Red | 519.5 | 35 | 24 | 504.5*30.2 | 24 | 24 |
| DBS-L50030G | Green | 519.5 | 35 | 24 | 504.5*30.2 | 24 | 24 |
| DBS-L60030W | White | 620.5 | 35 | 24 | 605.5*30.2 | 24 | 28.8 |
| DBS-L60030B | Blue | 620.5 | 35 | 24 | 605.5*30.2 | 24 | 28.8 |
| DBS-L60030R | Red | 620.5 | 35 | 24 | 605.5*30.2 | 24 | 28.8 |
| DBS-L60030G | Green | 620.5 | 35 | 24 | 605.5*30.2 | 24 | 28.8 |
