- Analog constant voltage control
- Supports external trigger mode
- Low trigger response time (≤10μs)
- Knob for stepless linear brightness adjustment
- Switchable between Constant On and Constant Off modes
- 5~24V bidirectional trigger, adaptable to high and low level trigger modes
- Easy installation: screw mounting or C45 DIN rail mounting
General Analog Controller
Universal analog constant voltage light source controller, built-in switch power supply, power optional (65W/120W), channel optional, brightness adjustable through knob, light source brightness adjustable linearly, can be used as a light source for global array cameras, roller shutter cameras, and other lighting applications
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels |

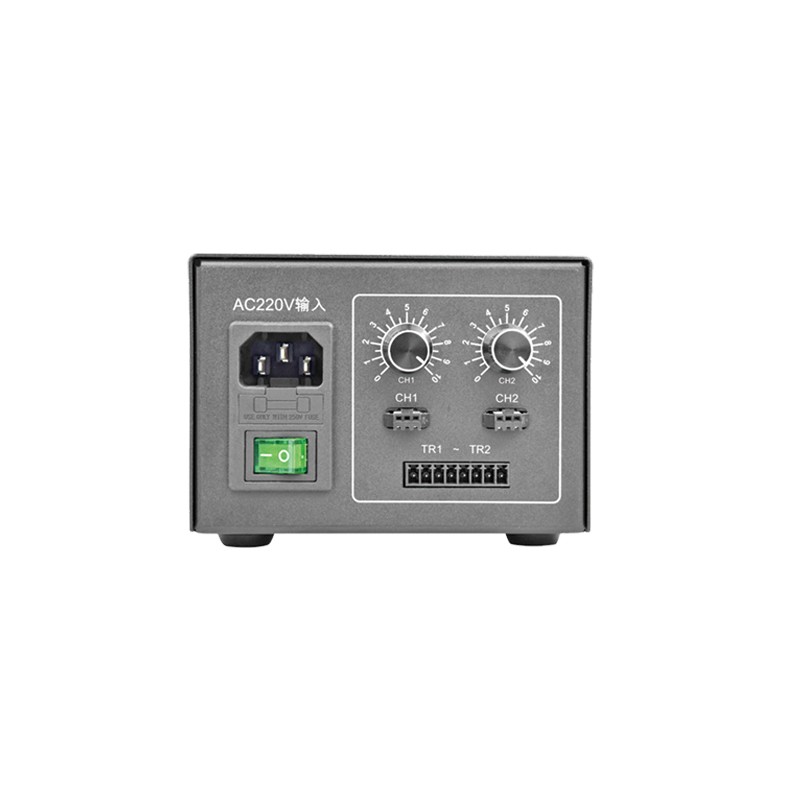

| DBS-AV65-24010-2 | VAC 85~264 | DC 24V | 1A | 65W | 2 |

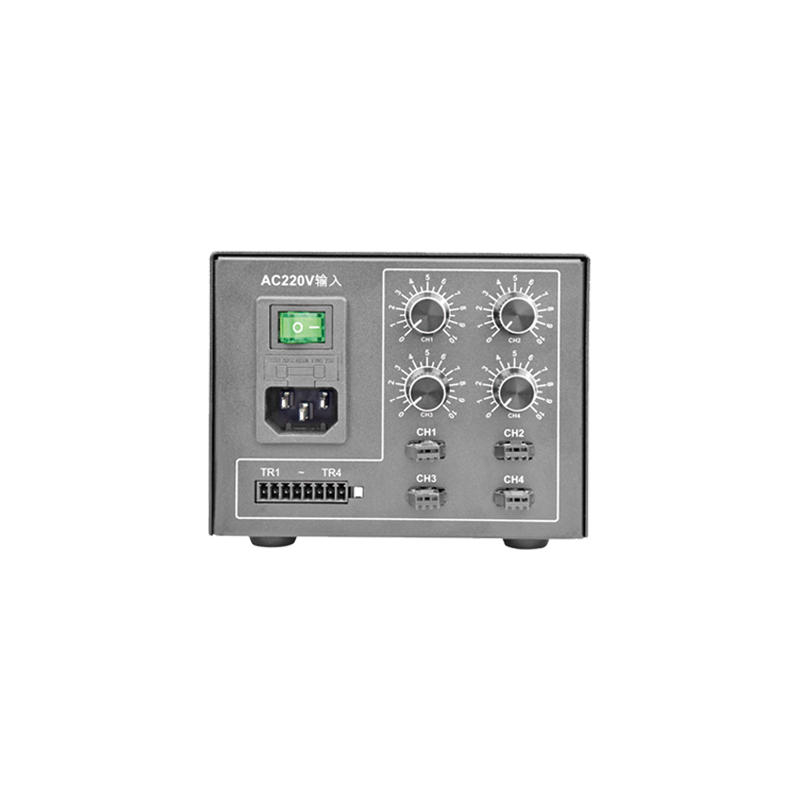

| DBS-AV65-24010-4 | VAC 85~264 | DC 24V | 1A | 65W | 4 |
| DBS-AV120-24010-4 | VAC 85~264 | DC 24V | 1A | 120W | 4 |
