- Supports RS232 communication
- External 24V power supply with reverse connection protection
- Low trigger response time
- Supports external trigger mode
- Supports millisecond-level strobing and microsecond-level strobing
- Manual brightness and mode adjustment
- 5~24V bidirectional triggering, adaptable to high and low-level trigger modes
- Equipped with over-temperature protection and output short-circuit protection
- Compact size, easy to install, with screw mounting or C45 DIN rail mounting
External Power Supply Controller Type
PWM dimming type constant voltage controller, external DC 12~24V power supply, output current selectable, channel number selectable, supports RS232 communication interface, can be used for lighting sources for full-field array cameras.
| mode | Input Voltage | Max output voltage | Channel current | Number of Channels | Communication Interface |

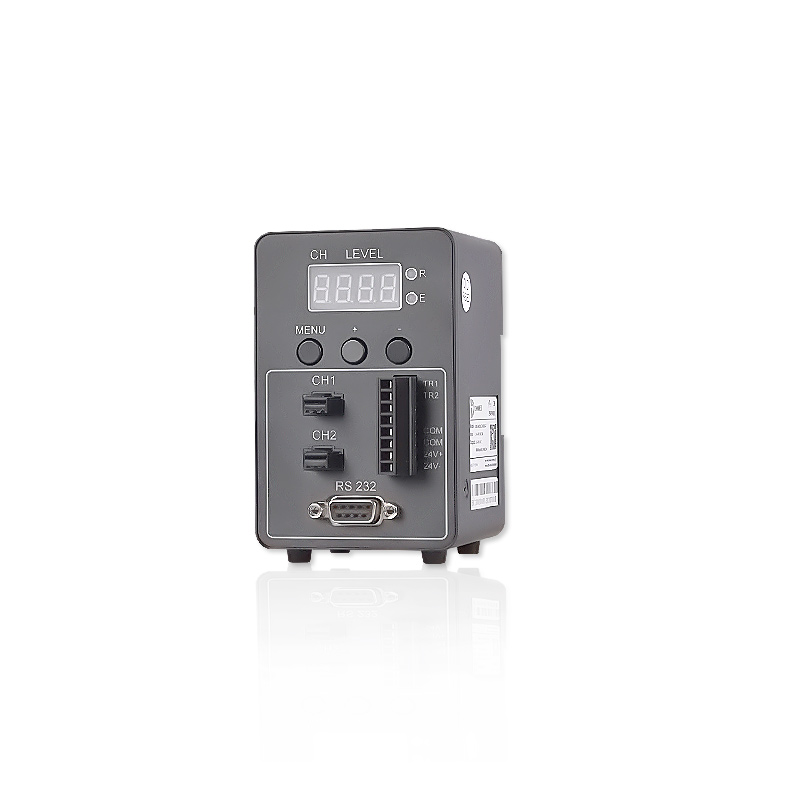

| DBS-MD01C-24010-2 | DC 24V | DC 24V | 1A | 2 | RS232 |
| DBS-MD01C-24030-2 | DC 24V | DC 24V | 3A | 2 | RS232 |

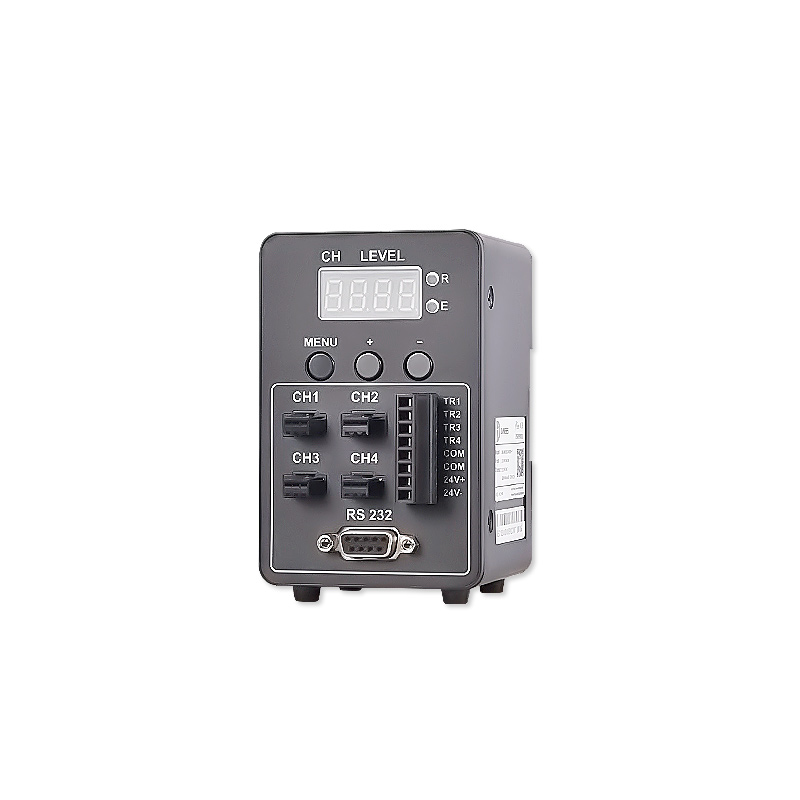

| DBS-MD01C-24010-4 | DC 24V | DC 24V | 1A | 4 | RS232 |
| DBS-MD01C-24030-4 | DC 24V | DC 24V | 3A | 4 | RS232 |
