- Supports RS232 communication
- Built-in high-power 24V switching power supply
- Capable of driving high-power light sources
- Low trigger response time
- Supports external trigger mode
- Supports millisecond-level strobe and microsecond-level strobe
- Allows manual setting of brightness and mode
- 5~24V bidirectional triggering, adaptable to high/low level trigger modes

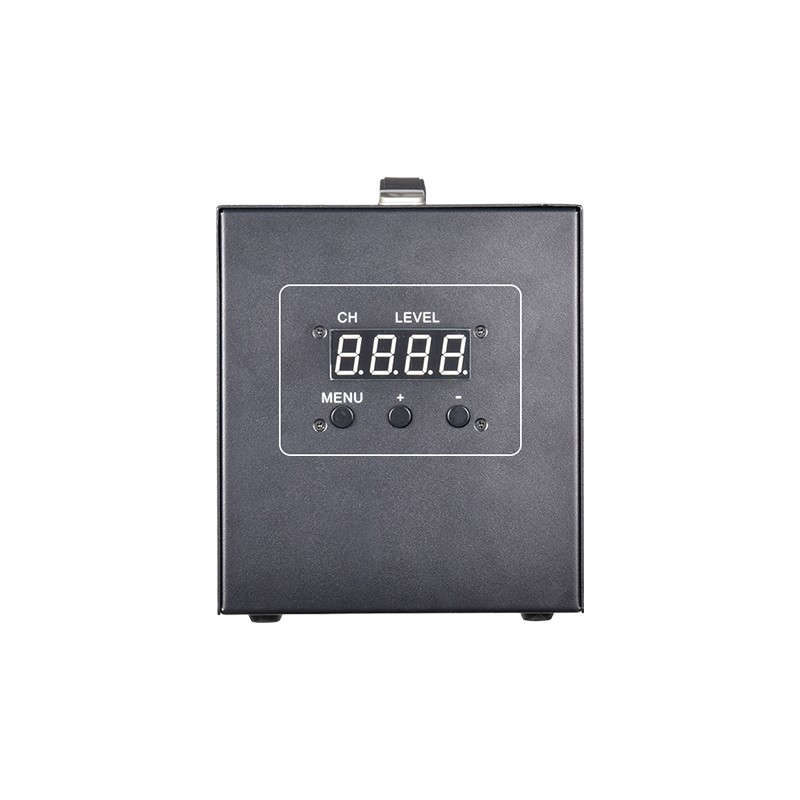

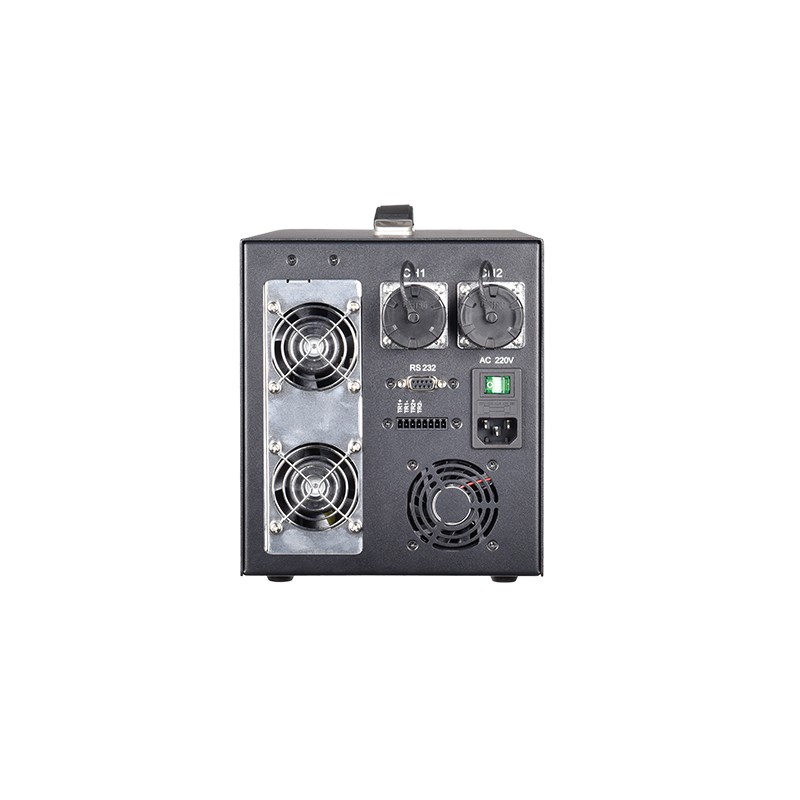

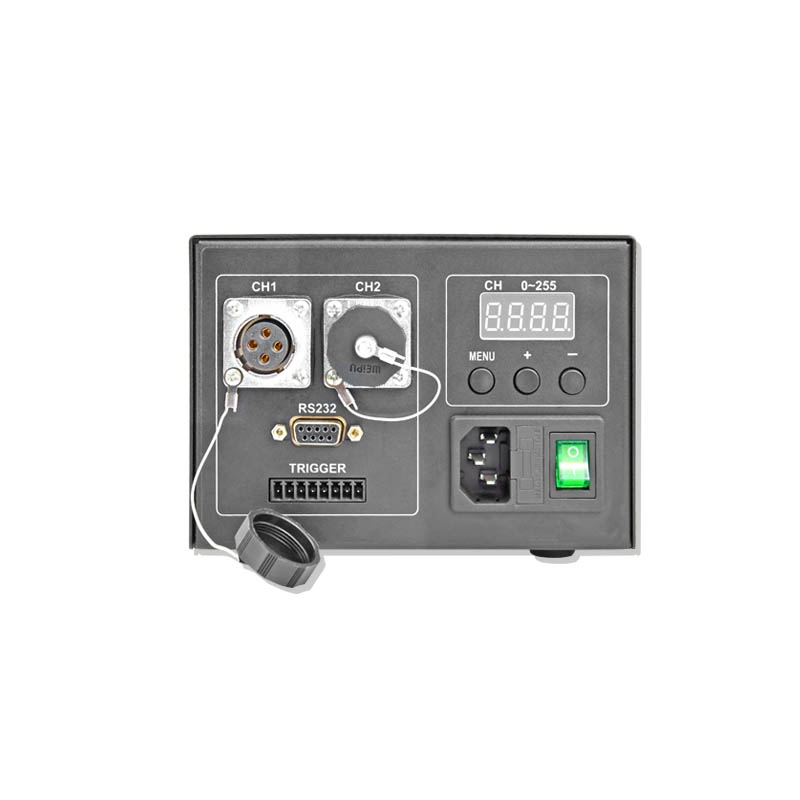

DVXXX-N05C
High power PWM dimming constant voltage controller, built-in switch power supply, optional power (350W~1500W), optional number of channels, supports RS232 communication interface, can be used as a light source for global array camera illumination.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-DV350-N05C-24063-2 | VAC 85~264 | DC 12V | 6.3A | 350W | 2 | RS232 |
| DBS-DV500-N05C-24063-2 | VAC 85~264 | DC 12V | 6.3A | 500W | 2 | RS232 |

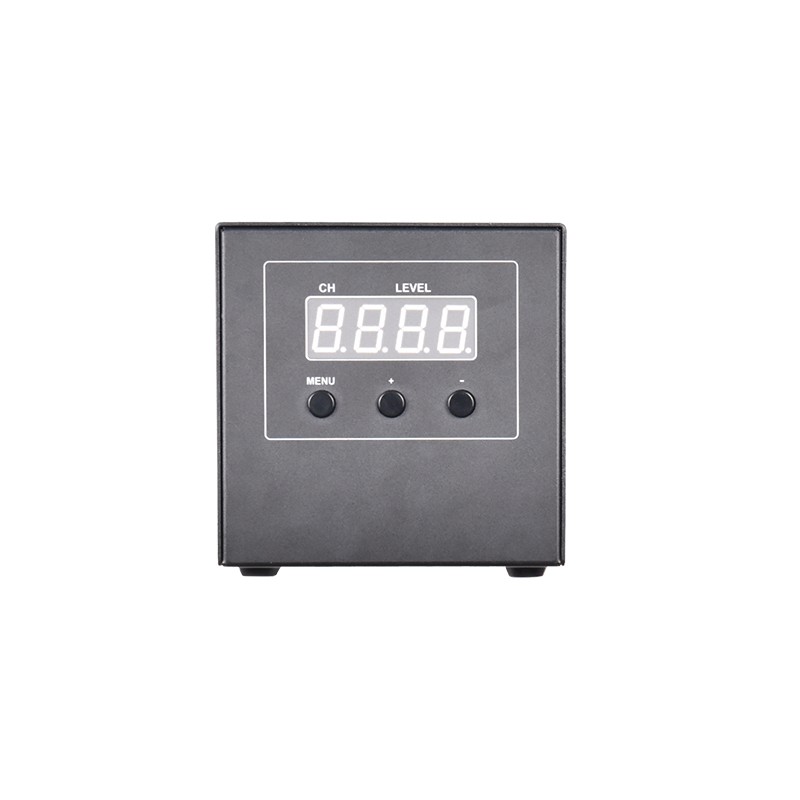

| DBS-DV600-N05CE-24120-2 | VAC90-132/180-264 | DC 48V | 12A | 600W | 2 | RS232/Ethenet |
| DBS-DV1500-N05C-24625-2 | VAC 200~240 | DC 24V | 62.5A | 1500W | 2 | RS232 |
