- Supports RS232 communication;
- Supports RS485 communication;
- Built-in 24V switching power supply;
- Low trigger response time (≤10μs);
- Supports external trigger mode;
- Supports millisecond-level stroboscope and microsecond-level stroboscope;
- Manual adjustment of brightness and mode;
- 5~24V bidirectional trigger, adaptable to high and low-level trigger modes;
- Compact size, easy installation, available for screw mounting or C45 DIN rail mounting;

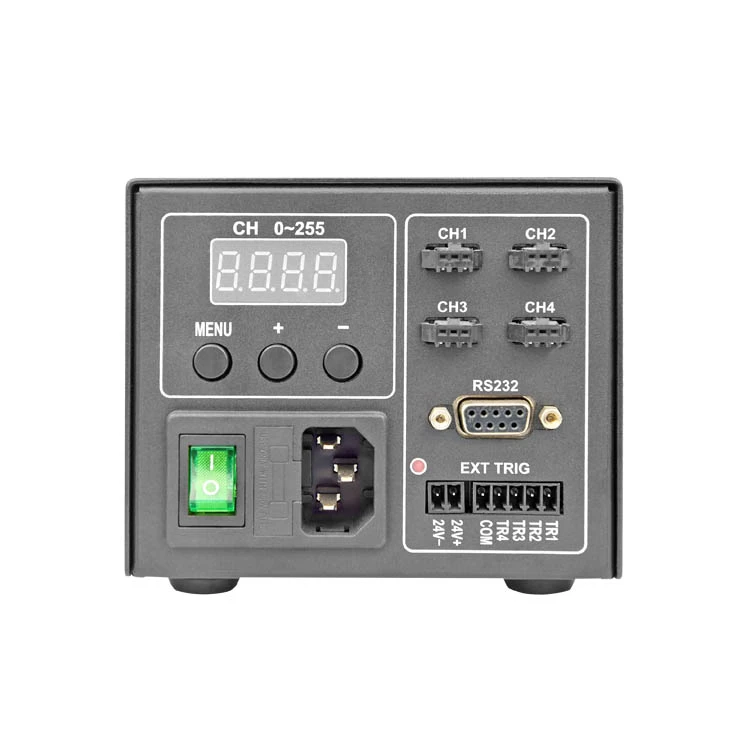

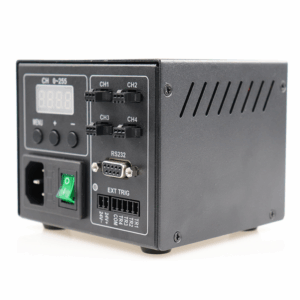

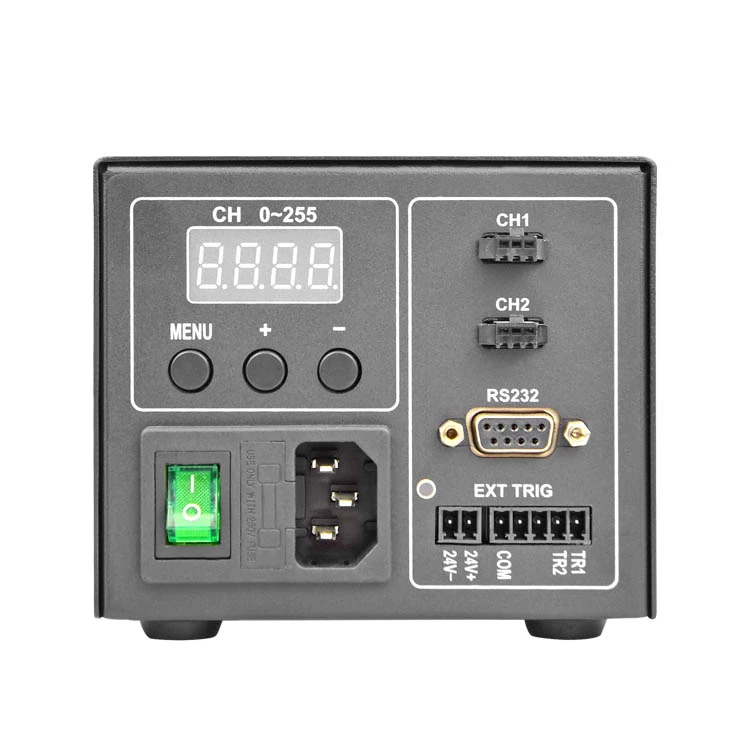

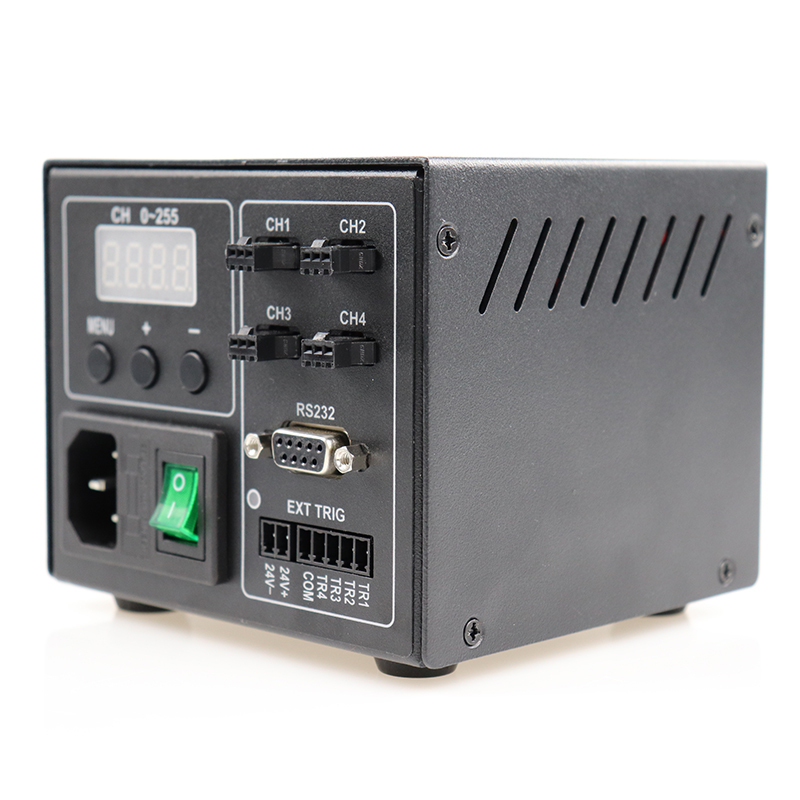

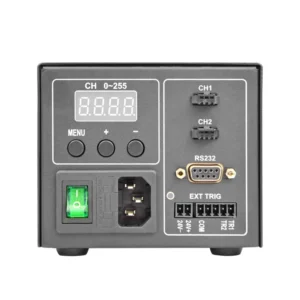

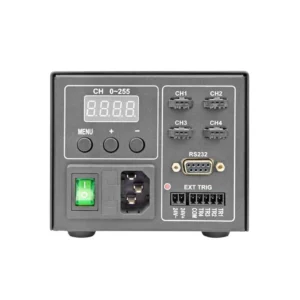

DVXXX-N04C
PWM dimming type constant voltage controller, built-in switch power supply, optional power (65W~200W), optional number of channels, supports RS485 communication, modbus RTU protocol, can be used as a light source for illuminating global array cameras.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-DV65-N04C-12025-2 | VAC 85~264 | DC 12V | 2.5A | 65W | 2 | RS485 |
| DBS-DV65-N04C-12025-4 | VAC 85~264 | DC 12V | 2.5A | 65W | 4 | RS485 |
| DBS-DV65-N04C-24025-2 | VAC 85~264 | DC 24V | 2.5A | 65W | 2 | RS485 |
| DBS-DV65-N04C-24025-4 | VAC 85~264 | DC 24V | 2.5A | 65W | 4 | RS485 |
| DBS-DV120-N04C-24040-2 | VAC 85~264 | DC 24V | 4.0A | 120W | 2 | RS485 |
| DBS-DV120-N04C-24040-4 | VAC 85~264 | DC 24V | 4.0A | 120W | 4 | RS485 |
| DBS-DV200-N04C-24040-2 | VAC 85~264 | DC 24V | 4.0A | 200W | 2 | RS485 |
| DBS-DV200-N04C-24040-4 | VAC 85~264 | DC 24V | 4.0A | 200W | 4 | RS485 |
