- Supports RS232 communication;
- Built-in 24V switching power supply;
- Low trigger response time (≤10μs);
- Supports external trigger mode;
- Supports millisecond-level and microsecond-level strobe;
- Manual adjustment of brightness and mode;
- 5~24V bidirectional triggering, adaptable to high/low-level trigger modes.

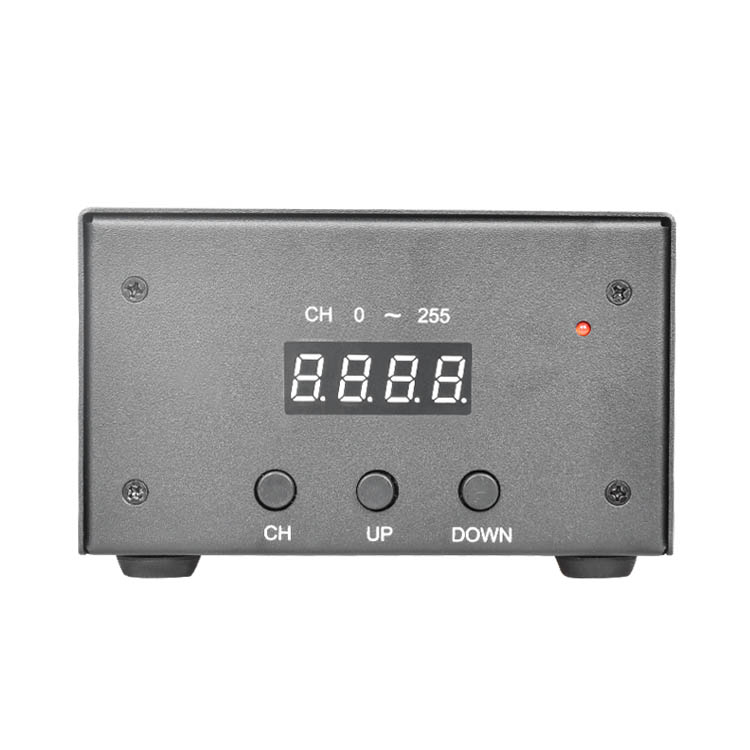

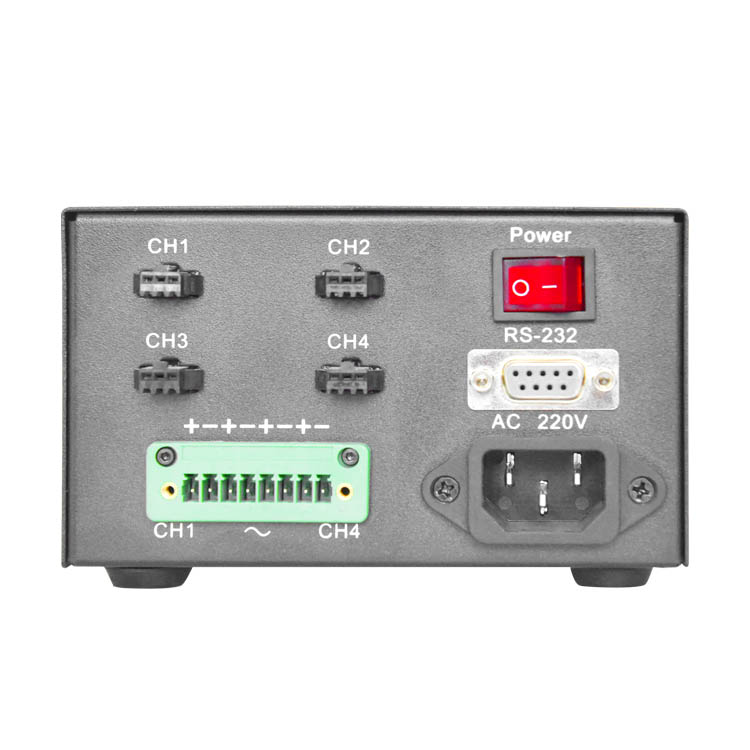

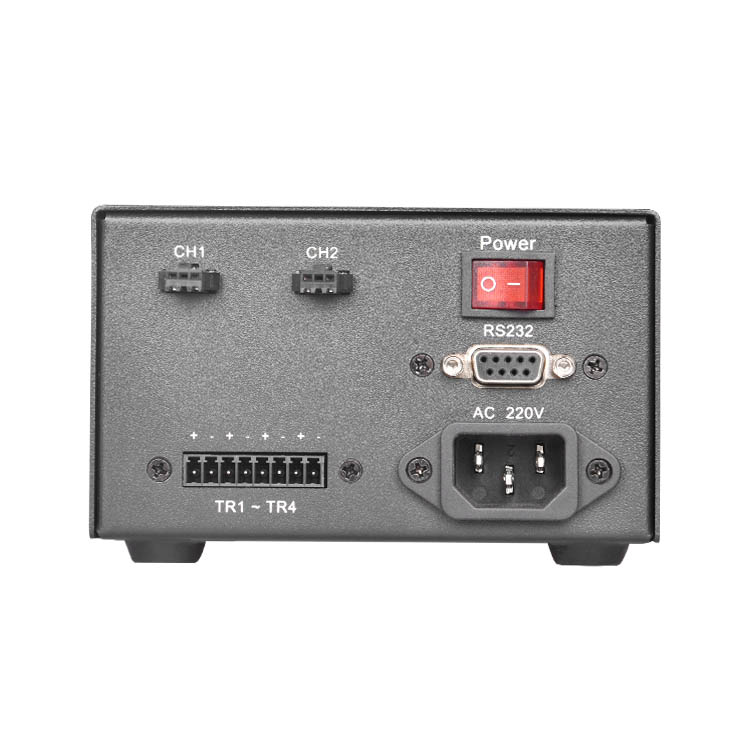

DVXXX-N01C
PWM dimming constant voltage controller, built-in switch power supply, optional power (65W~120W), optional number of channels, supports RS232 communication interface, can be used as a light source for global array camera illumination.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels |

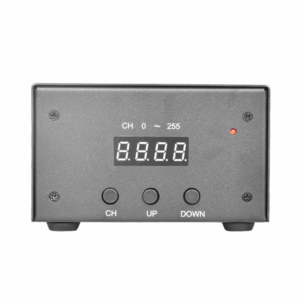

| DBS-DV65-N01C-24012-2 | VAC 85~264 | DC 24V | 1.2A | 65W | 2 |
| DBS-DV65-N01C-24012-4 | VAC 85~264 | DC 24V | 1.2A | 65W | 4 |
| DBS-DV120-N01C-24012-4 | VAC 85~264 | DC 24V | 1.2A | 120W | 4 |

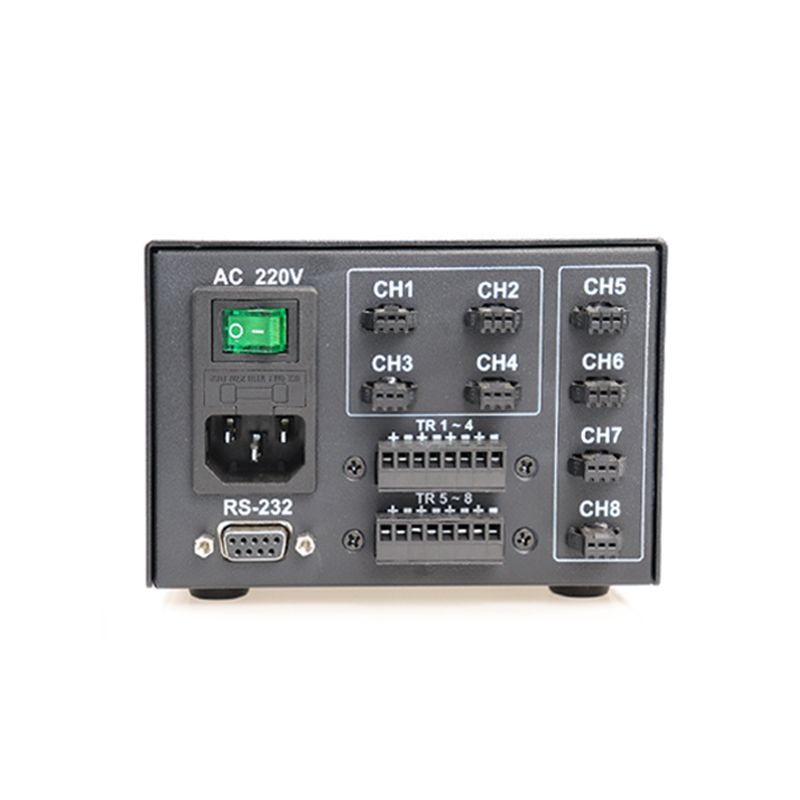

| DBS-DV120-N01C-24012-8 | VAC 85~264 | DC 24V | 1.2A | 120W | 8 |
