- Digital constant current controller
- Maximum output current per channel up to 2~12A depending on model selection
- Constant current output with no brightness flicker
- Low trigger response time
- Real-time parameter storage, no need to reconfigure parameters on each startup
- Remote parameter configuration via RS-232 serial port
- Configurable trigger level to adapt to different trigger modes
- Trigger debounce filtering for stronger anti-interference capability
- Easy installation: screw mounting or C45 DIN rail mounting

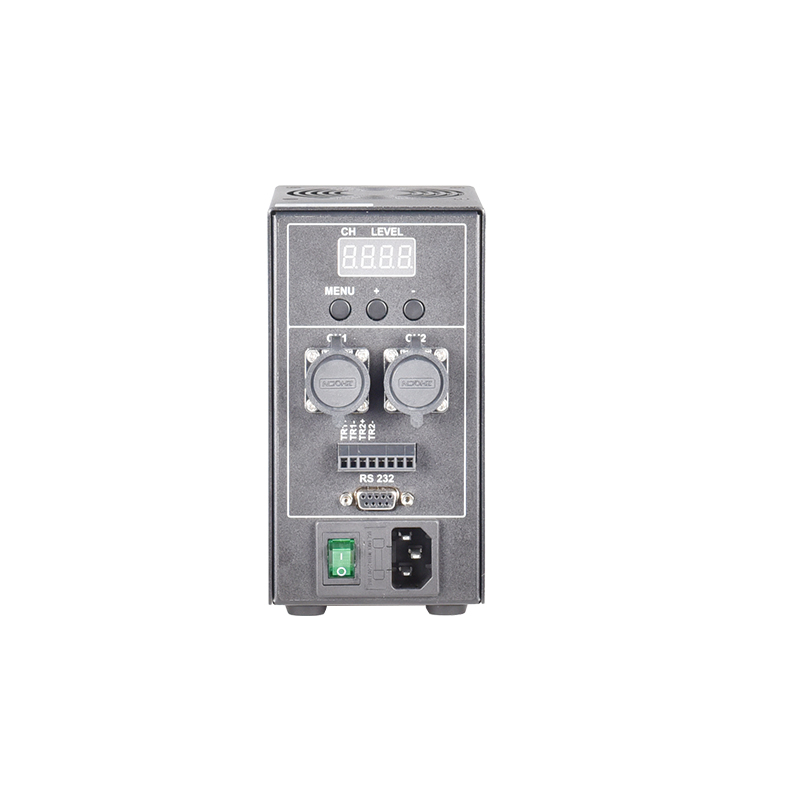

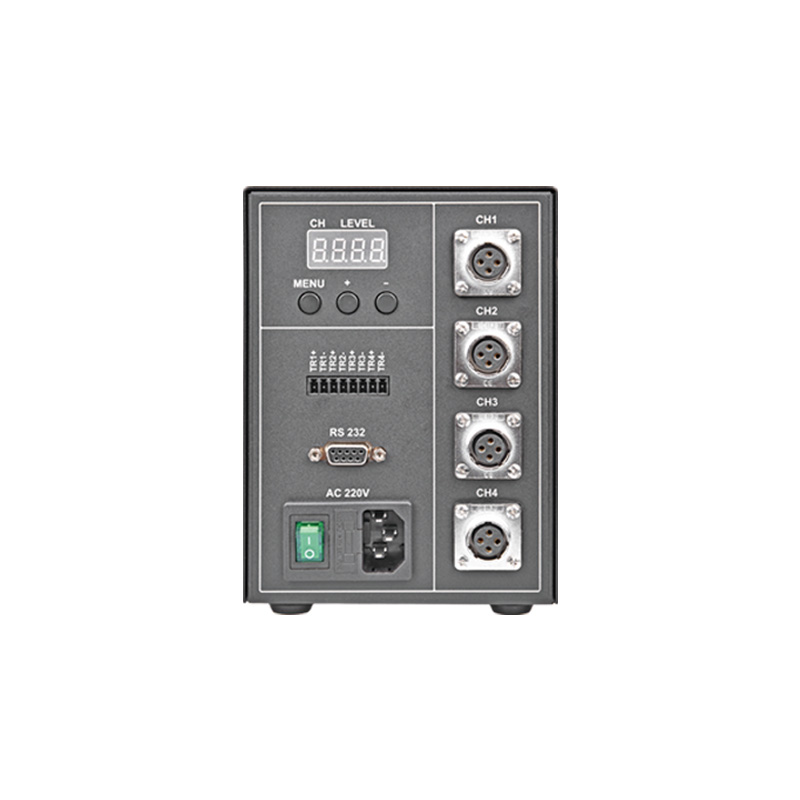

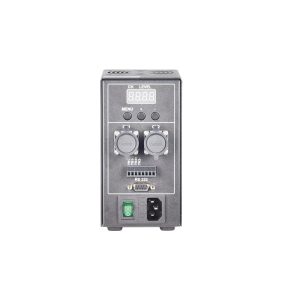

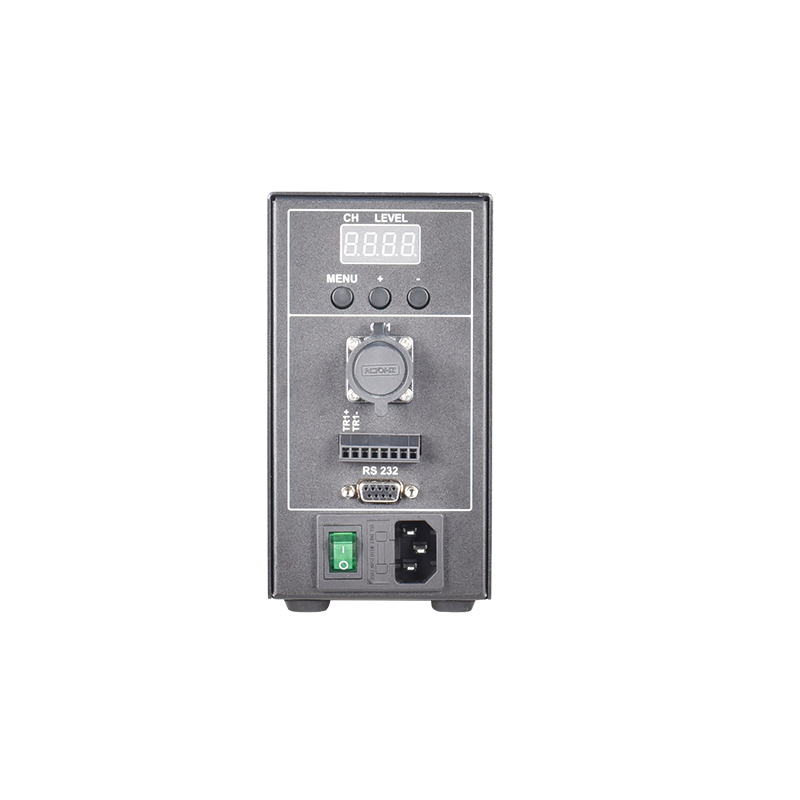

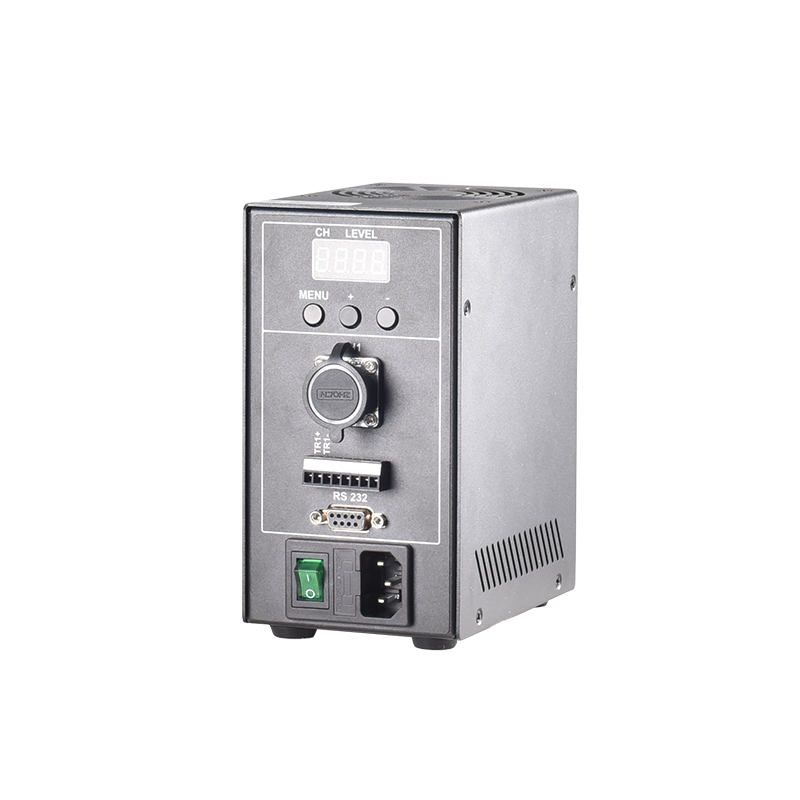

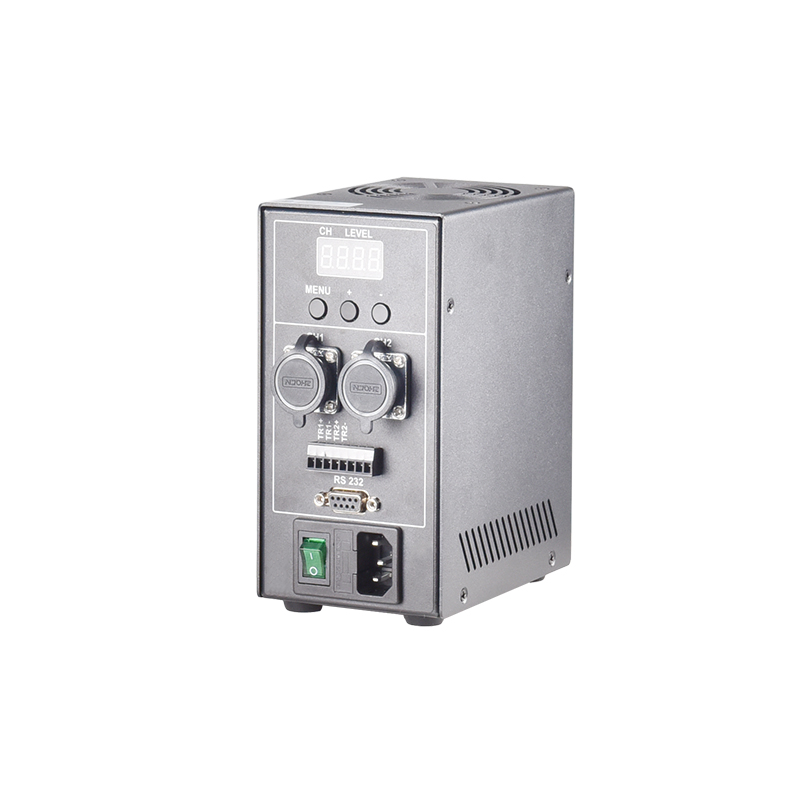

DCXXX-I07C
The digital constant-current light source controller features an integrated switching power supply with selectable power output (65W~350W) and configurable channel numbers. It supports an RS232 communication interface and offers advantages such as stable brightness and excellent light adjustment linearity. It is suitable for lighting applications in global area scan cameras, curtain cameras, and line-scan cameras.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-DC65-I07C-24025-1 | VAC 85~264 | DC 24V | 2.5A | 65W | 1 | RS232 |
| DBS-DC65-I07C-24025-2 | VAC 85~264 | DC 24V | 2.5A | 65W | 2 | RS232 |
| DBS-DC65-I07C-48010-1 | VAC 85~264 | DC 48V | 1A | 65W | 1 | RS232 |
| DBS-DC120-I07C-24050-1 | VAC 85~264 | DC 24V | 5A | 120W | 1 | RS232 |
| DBS-DC120-I07C-24040-2 | VAC 85~264 | DC 24V | 4A | 120W | 2 | RS232 |
| DBS-DC120-I07C-48020-1 | VAC 85~264 | DC 48V | 2A | 120W | 1 | RS232 |
| DBS-DC120-I07C-48020-2 | VAC 85~264 | DC 48V | 2A | 120W | 2 | RS232 |
| DBS-DC200-I07C-24080-1 | VAC 85~264 | DC 24V | 8A | 200W | 1 | RS232 |
| DBS-DC200-I07C-24040-2 | VAC 85~264 | DC 24V | 4A | 200W | 2 | RS232 |
| DBS-DC200-I07C-24020-4 | VAC 85~264 | DC 24V | 2A | 200W | 4 | RS232 |
| DBS-DC200-I07C-48040-1 | VAC 85~264 | DC 48V | 4A | 200W | 1 | RS232 |
| DBS-DC200-I07C-48020-2 | VAC 85~264 | DC 48V | 2A | 200W | 2 | RS232 |
| DBS-DC350-I07C-24120-1 | VAC 85~264 | DC 24V | 12A | 350W | 1 | RS232 |
| DBS-DC350-I07C-24120-2 | VAC 85~264 | DC 24V | 12A | 350W | 2 | RS232 |
| DBS-DC350-I07C-24050-4 | VAC 85~264 | DC 24V | 5A | 350W | 4 | RS232 |
| DBS-DC350-I07C-48070-1 | VAC 85~264 | DC 48V | 7A | 350W | 1 | RS232 |
| DBS-DC350-I07C-48035-2 | VAC 85~264 | DC 48V | 3.5A | 350W | 2 | RS232 |
| DBS-DC350-I07C-48020-4 | VAC 85~264 | DC 48V | 2A | 350W | 4 | RS232 |
