- Supports RS232/Ethenet communication
- Built-in 24V switching power supply
- 8-channel constant current control for stable light source brightness
- Supports 4 channels of 24V universal light sources and 8 channels of point light sources
- Low trigger response time
- Supports external trigger mode
- Switchable between constant-on and stroboscopic modes
- Supports millisecond-level and microsecond-level stroboscopy
- 5~24V bidirectional triggering, adaptable to high/low level trigger modes
- Easy installation: Screw mounting or C45 DIN rail mounting

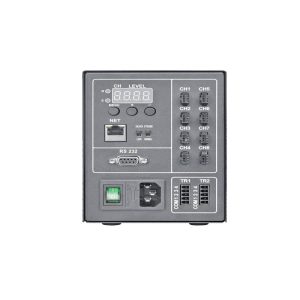

Combind Controller
Digital constant current light source controller, which combines point light source interface and conventional 24V light source interface, can drive point light sources and 24V conventional light sources. It has a built-in switch power supply, optional power (65W~200W), optional number of channels for point light sources and 24V light sources, supports RS232/Ethernet communication interface, and has the advantages of stable brightness and good dimming performance. It can be used as a lighting source for global array cameras, roller shutter cameras, line scan cameras, etc.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-DC65-I20CE-24010-4-05010-4 | VAC 85~264 | DC 24V/5V | 1A | 65W | 8 | RS232/Ethenet |
| DBS-DC120-I20CE-24010-4-05010-4 | VAC 85~264 | DC 24V/5V | 1A | 120W | 8 | RS232/Ethenet |
| DBS-DC120-I20CE-24010-4-05010-8 | VAC 85~264 | DC 24V/5V | 1A | 120W | 12 | RS232/Ethenet |
| DBS-DC120-I20CE-24010-8-05010-4 | VAC 85~264 | DC 24V/5V | 1A | 120W | 12 | RS232/Ethenet |
| DBS-DC200-I20CE-24010-8-05010-8 | VAC 85~264 | DC 24V/5V | 1A | 200W | 16 | RS232/Ethenet |
