- Supports RS232 communication;
- Low trigger response time;
- Supports external trigger mode;
- Supports millisecond-level and microsecond-level strobe;
- Allows manual adjustment of brightness and mode;
- 5~24V unidirectional trigger, compatible with high and low-level trigger modes;
- Features overheat protection and output short-circuit protection;
- Compact size for easy installation, suitable for screw mounting or C45 rail mounting.

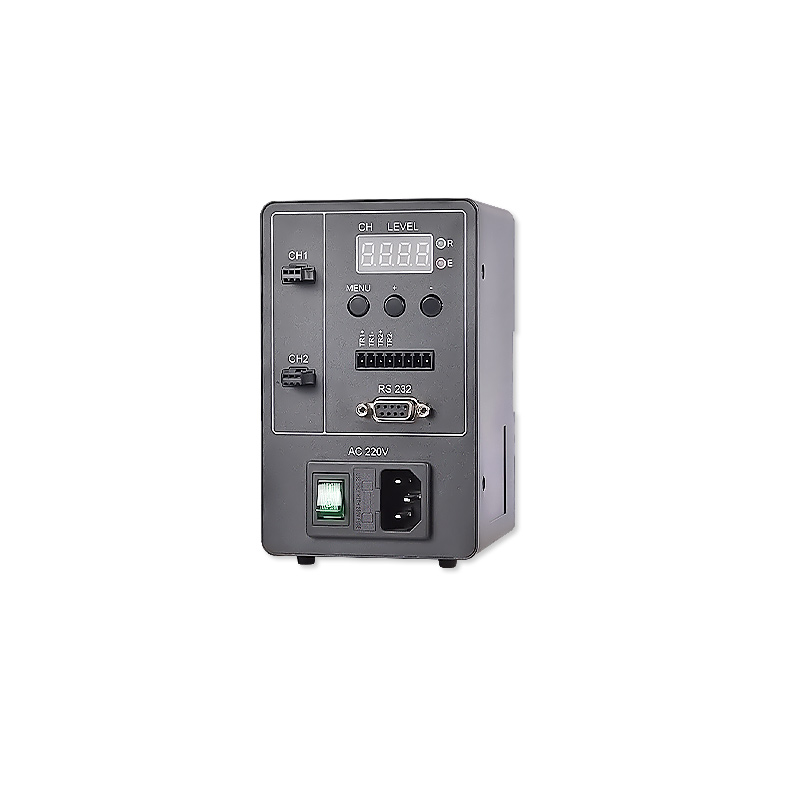

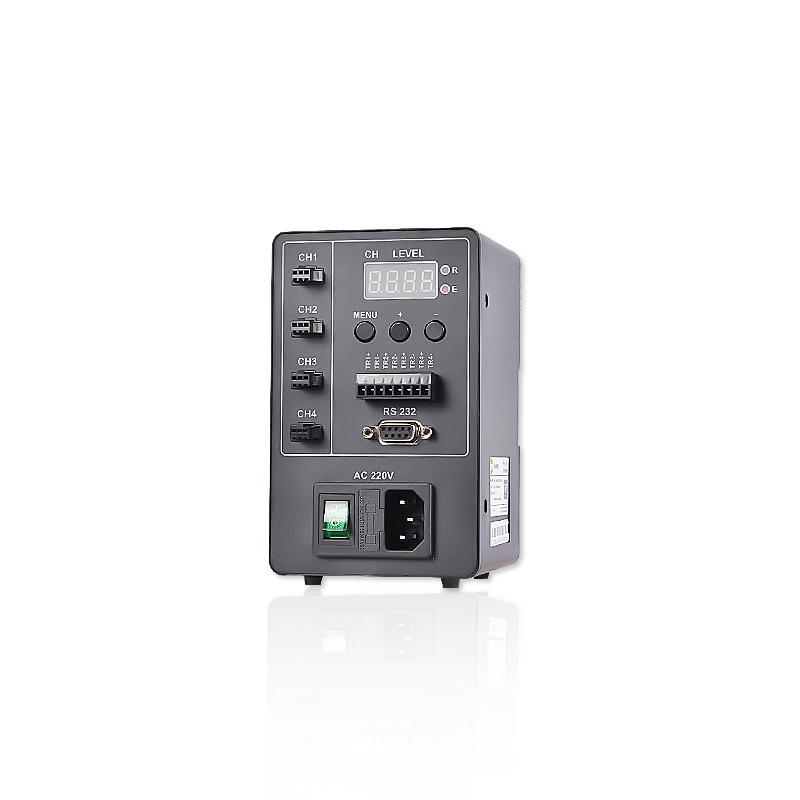

Built-in switching power supply type
PWM dimming constant voltage controller with built-in switching power supply, selectable power (65W~200W), selectable number of channels, supports RS232 communication interface, and can be used for global area array camera illumination light sources.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-65-MD01C-24025-2 | VAC 85~264 | DC 24V | 2.5A | 65W | 2 | RS232 |
| DBS-120-MD01C-24030-2 | VAC 85~264 | DC 24V | 3A | 120W | 2 | RS232 |
| DBS-200-MD01C-24030-2 | VAC 85~264 | DC 24V | 3A | 200W | 2 | RS232 |
| DBS-65-MD01C-24025-4 | VAC 85~264 | DC 24V | 2.5A | 65W | 4 | RS232 |
| DBS-120-MD01C-24030-4 | VAC 85~264 | DC 24V | 3A | 120W | 4 | RS232 |
| DBS-200-MD01C-24030-4 | VAC 85~264 | DC 24V | 3A | 200W | 4 | RS232 |
