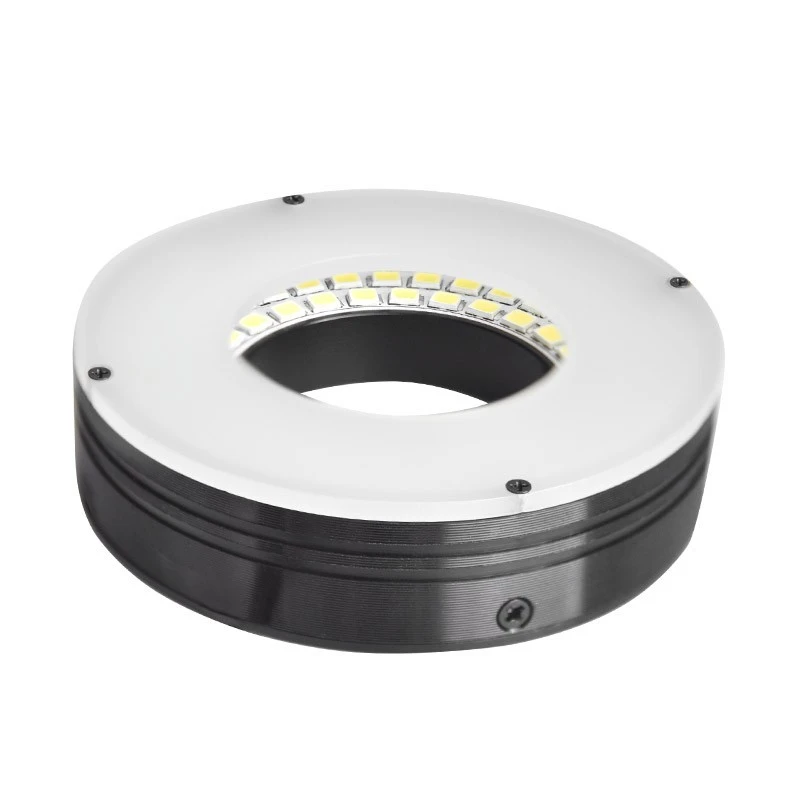

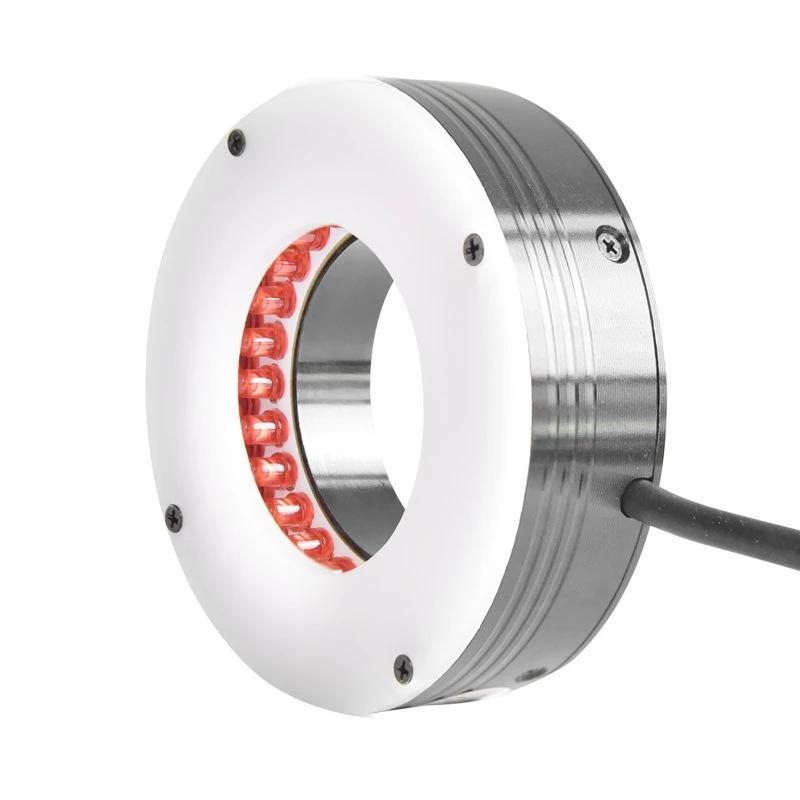

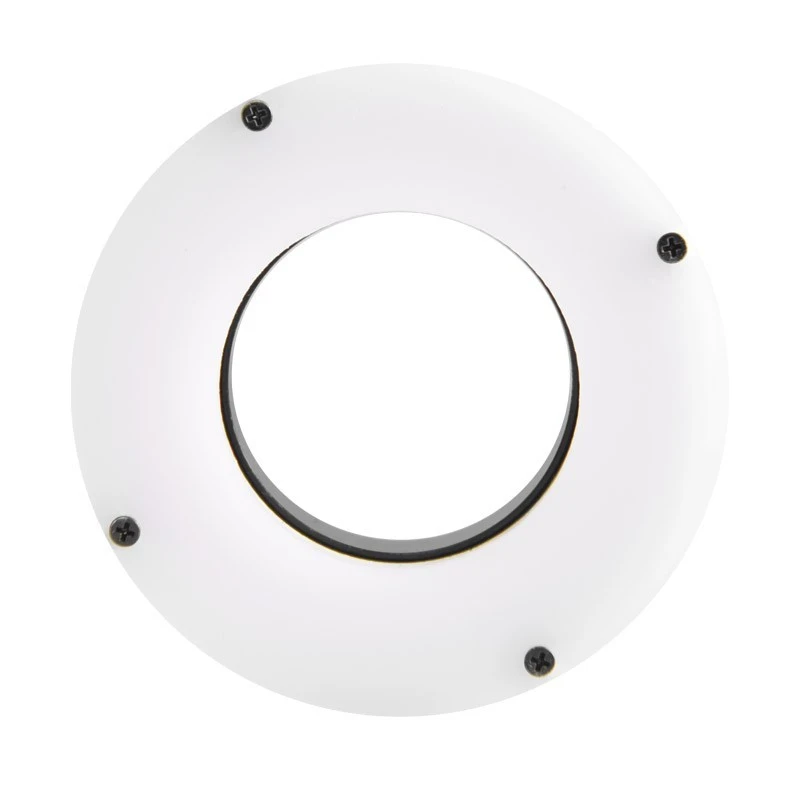

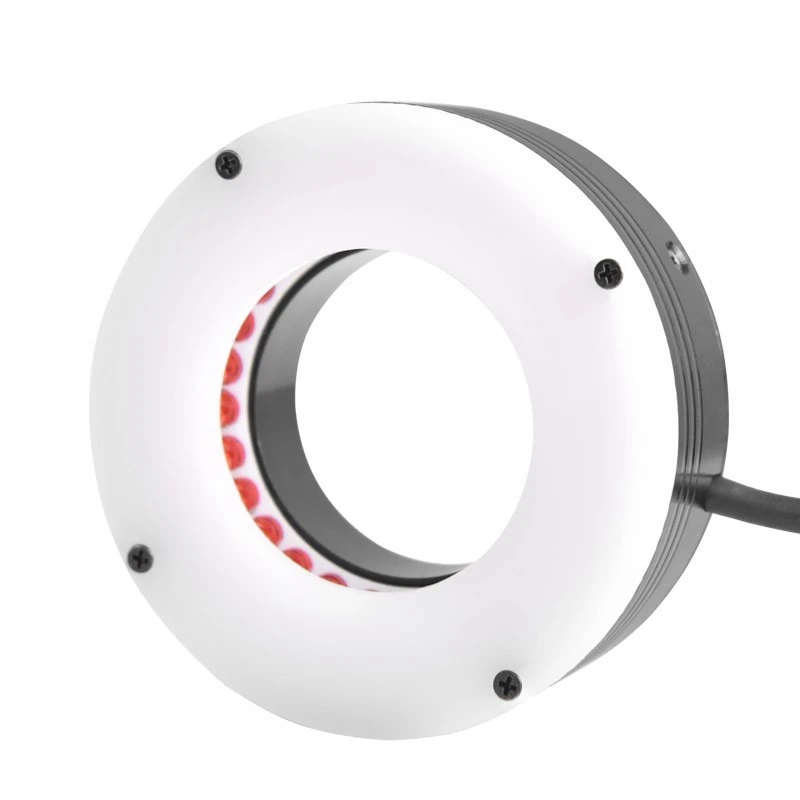

90-Degree Ring Light

  • High-density LED arrangement and scientific structural design.
  • Illumination from 360° direction to eliminate shadows.
  • A hole in the center enables perfect alignment between the light source and the camera lens.
  • Multiple angles available to adapt to applications with different working distances.
Get A Quotation
Categories: ,
Applicable to:



  • Connector pin positioning
  • QR code recognition
  • IC component inspection
  • Microscope illumination for PCB substrate inspection
  • Electronic component inspection and appearance defect inspection, etc.
  • LCD calibration and plastic container inspection
  • Integrated circuit (IC) mark inspection
Light Source Model Color Physical Dimensions (mm) Beam Angle Voltage (V) Power (W)
Outer Diameter Inner Diameter Height
DBS-R2890W White 28 11 18 90 24 0.5
DBS-R2890B Blue 28 11 18 90 24 0.5
DBS-R2890R Red 28 11 18 90 24 0.5
DBS-R2890G Green 28 11 18 90 24 0.5
DBS-R3490W White 34 16 19.7 90 24 0.5
DBS-R3490B Blue 34 16 19.7 90 24 0.5
DBS-R3490R Red 34 16 19.7 90 24 0.5
DBS-R3490G Green 34 16 19.7 90 24 0.5
DBS-R5090W White 50 25 19.5 90 24 0.7
DBS-R5090B Blue 50 25 19.5 90 24 0.7
DBS-R5090R Red 50 25 19.5 90 24 0.7
DBS-R5090G Green 50 25 19.5 90 24 0.7
DBS-R5290W White 52 25 18 90 24 1.7
DBS-R5290B Blue 52 25 18 90 24 1.7
DBS-R5290R Red 52 25 18 90 24 1.7
DBS-R5290G Green 52 25 18 90 24 1.7
DBS-R6090W White 60 33 19.2 90 24 2.2
DBS-R6090B Blue 60 33 19.2 90 24 2.2
DBS-R6090R Red 60 33 19.2 90 24 2.2
DBS-R6090G Green 60 33 19.2 90 24 2.2
DBS-R7090W White 70 36 19.6 90 24 3.2
DBS-R7090B Blue 70 36 19.6 90 24 3.2
DBS-R7090R Red 70 36 19.6 90 24 3.2
DBS-R7090G Green 70 36 19.6 90 24 3.2
DBS-R8090W White 80 40 22 90 24 3.4
DBS-R8090B Blue 80 40 22 90 24 3.4
DBS-R8090R Red 80 40 22 90 24 3.4
DBS-R8090G Green 80 40 22 90 24 3.4
DBS-R9090W White 90 40 19.7 90 24 5.3
DBS-R9090B Blue 90 40 19.7 90 24 5.3
DBS-R9090R Red 90 40 19.7 90 24 5.3
DBS-R9090G Green 90 40 19.7 90 24 5.3
DBS-R10090W White 100 52 22 90 24 2.5
DBS-R10090B Blue 100 52 22 90 24 2.5
DBS-R10090R Red 100 52 22 90 24 2.5
DBS-R10090G Green 100 52 22 90 24 2.5
DBS-R12090-48W White 120 48 20 90 24 9.2
DBS-R12090-48B Blue 120 48 20 90 24 9.2
DBS-R12090-48R Red 120 48 20 90 24 9.2
DBS-R12090-48G Green 120 48 20 90 24 9.2
DBS-R15090W White 150 60 20 90 24 17.3
DBS-R15090B Blue 150 60 20 90 24 17.3
DBS-R15090R Red 150 60 20 90 24 17.3
DBS-R15090G Green 150 60 20 90 24 17.3
DBS-R18090W White 180 80 18.8 90 24 28
DBS-R18090B Blue 180 80 18.8 90 24 28
DBS-R18090R Red 180 80 18.8 90 24 28
DBS-R18090G Green 180 80 18.8 90 24 28
90 degree ring light

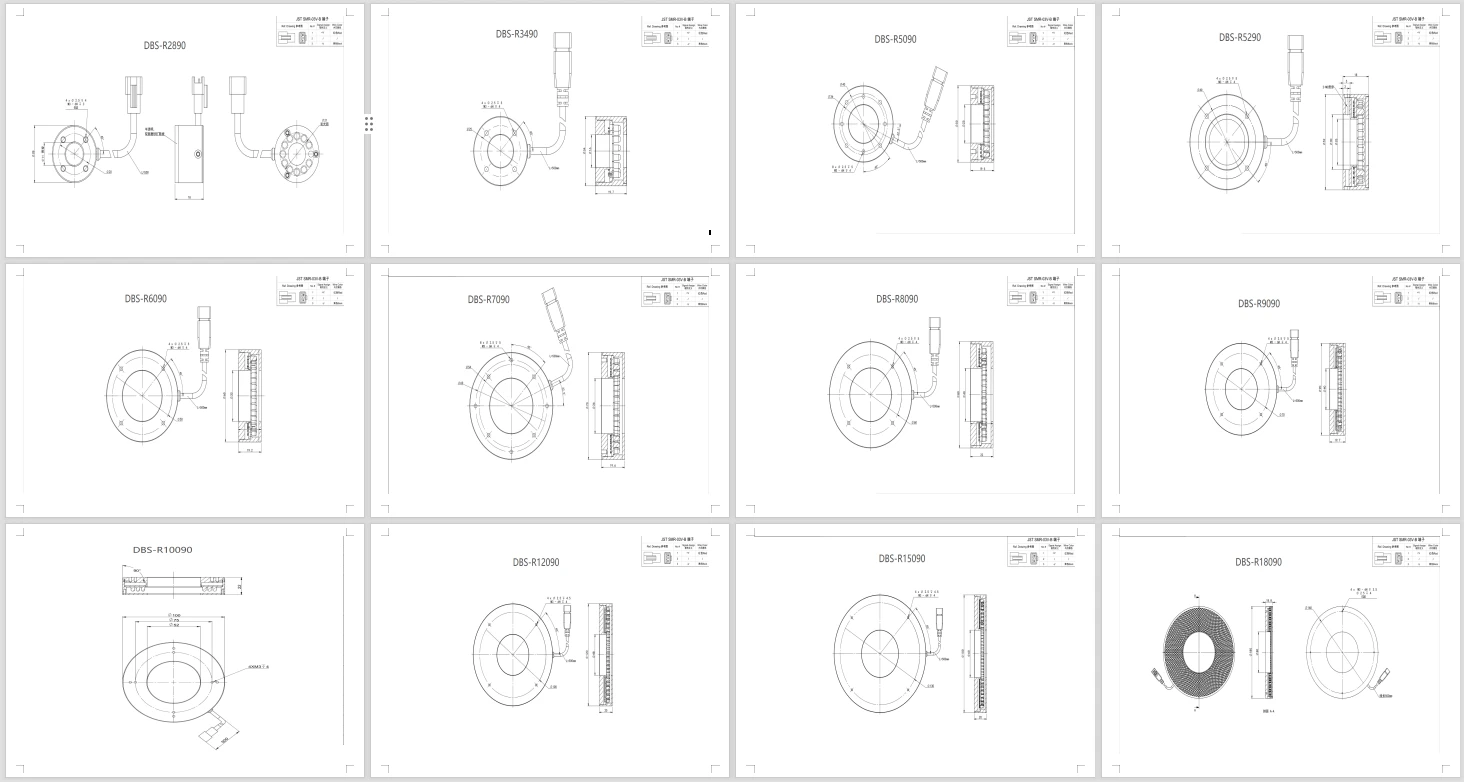

90-degree-ring-light-source-dimension-drawing
Download File
