75-degree Ring Light

  • High-density LED arrangement and scientific structural design.
  • Illumination from 360° direction to eliminate shadows.
  • A hole in the center enables perfect alignment between the light source and the camera lens.
  • Multiple angles available to adapt to applications with different working distances.
Get A Quotation
Categories: ,
Applicable to:



  • Connector pin positioning
  • QR code recognition
  • IC component inspection
  • Microscope illumination for PCB substrate inspection
  • Electronic component inspection and appearance defect inspection, etc.
  • LCD calibration and plastic container inspection
  • Integrated circuit (IC) mark inspection
Light Source Model Color External Dimensions (mm) Luminous Angle Voltage (V) Power (W)
Outer Diameter Inner Diameter Height
DBS-R7075W (without a diffuser plate) White 70 33.5 21 75 24 4.3
DBS-R7075B (without a diffuser plate) Blue 70 33.5 21 75 24 4.3
DBS-R7075R (without a diffuser plate) Red 70 33.5 21 75 24 4.3
DBS-R7075G (without a diffuser plate) Green 70 33.5 21 75 24 4.3
DBS-R9075W White 90 40 21 75 24 5.8
DBS-R9075B Blue 90 40 21 75 24 5.8
DBS-R9075R Red 90 40 21 75 24 5.8
DBS-R9075G Green 90 40 21 75 24 5.8

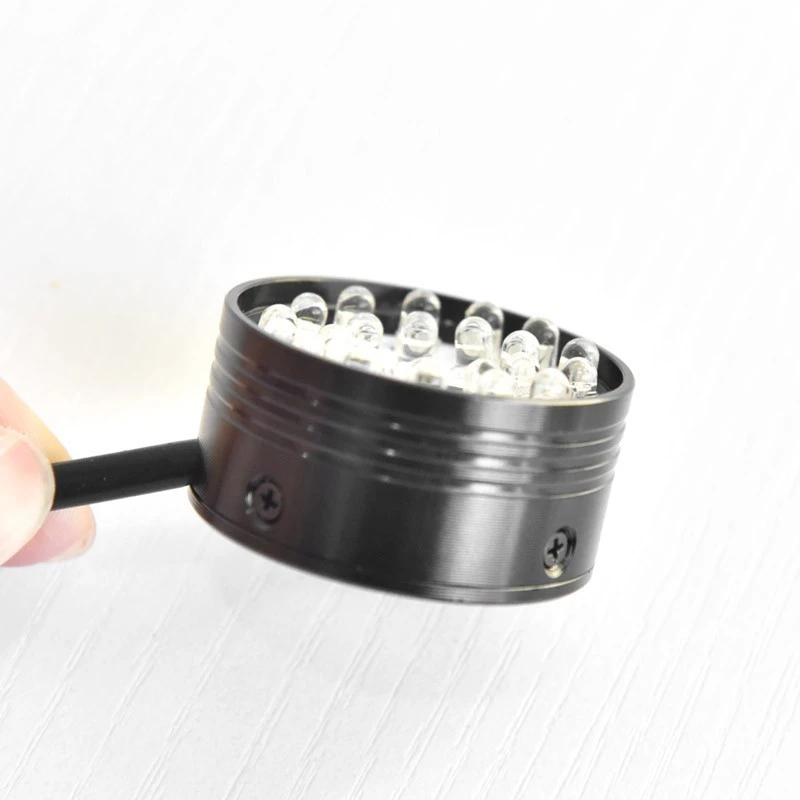

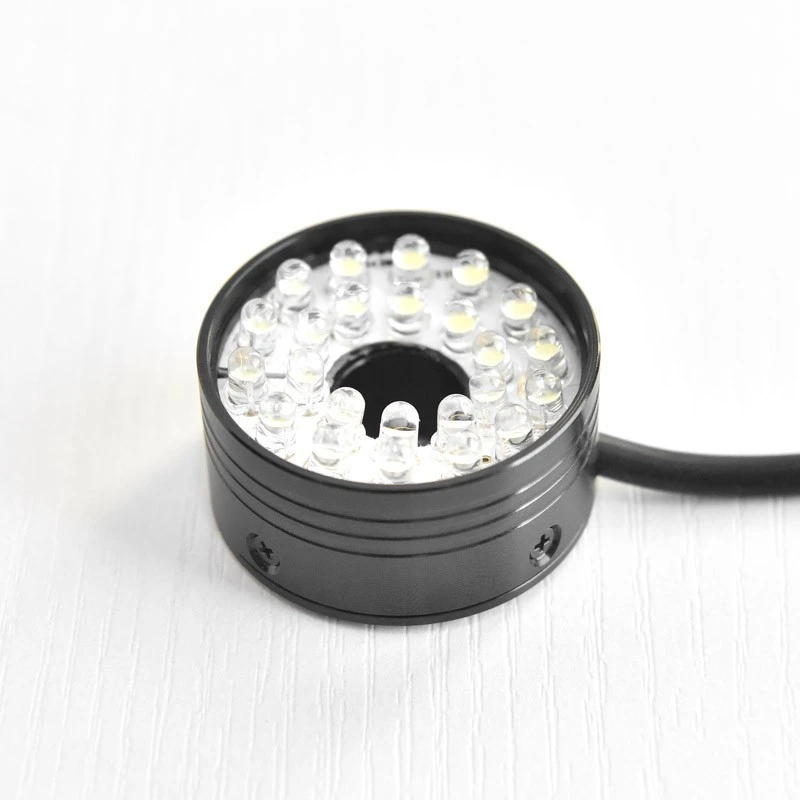

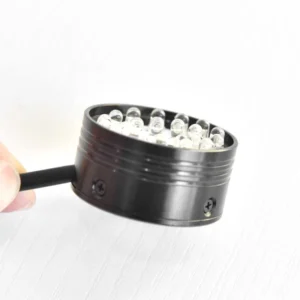

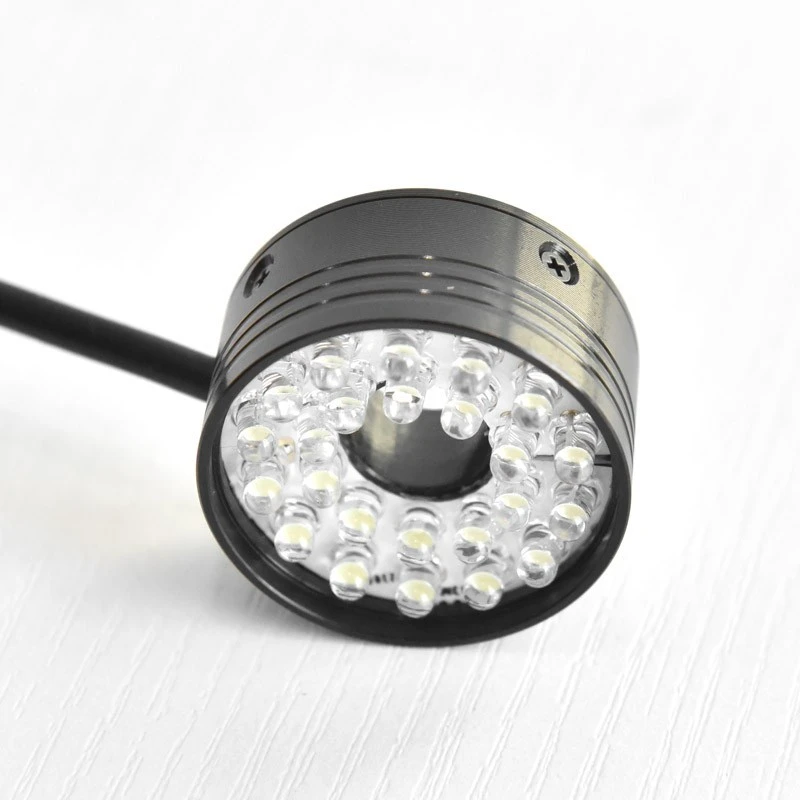

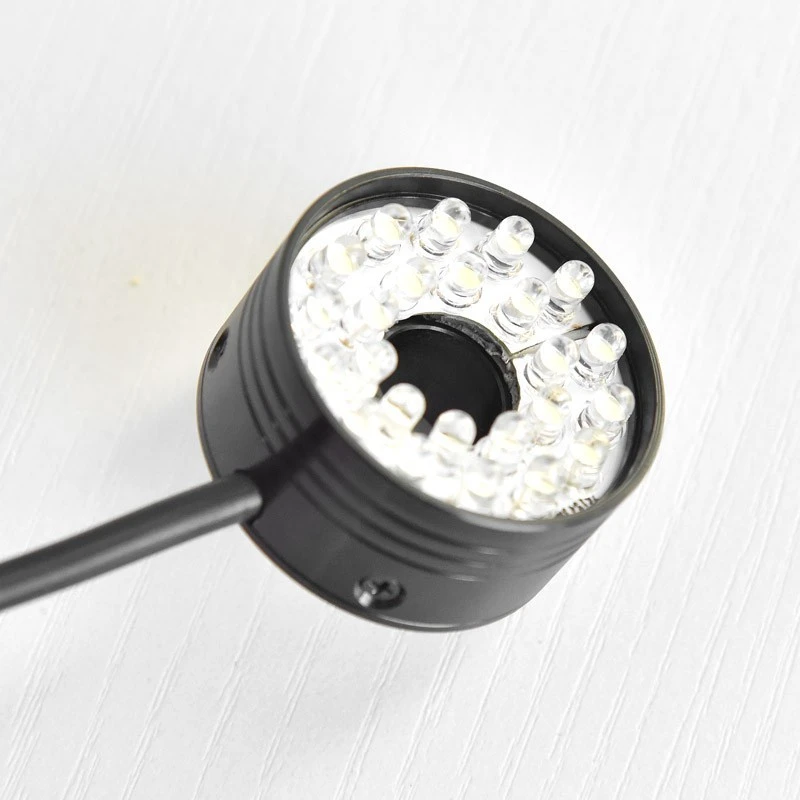

75 degree ring light

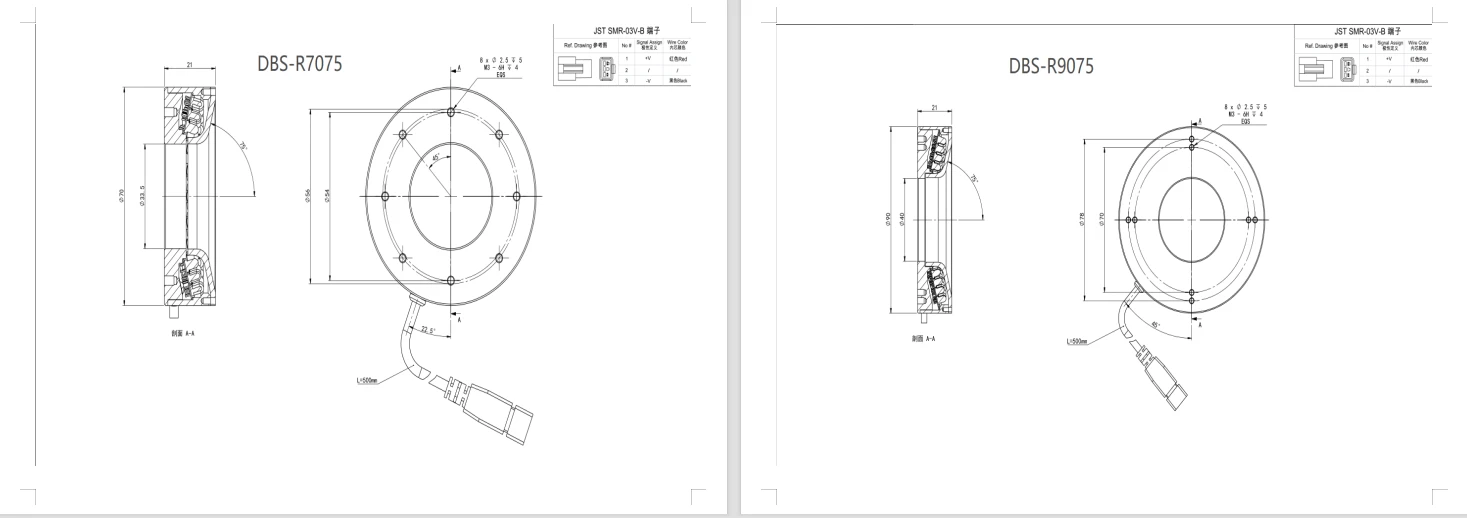

75-degree-ring-light-source-dimension-drawing
Download File
