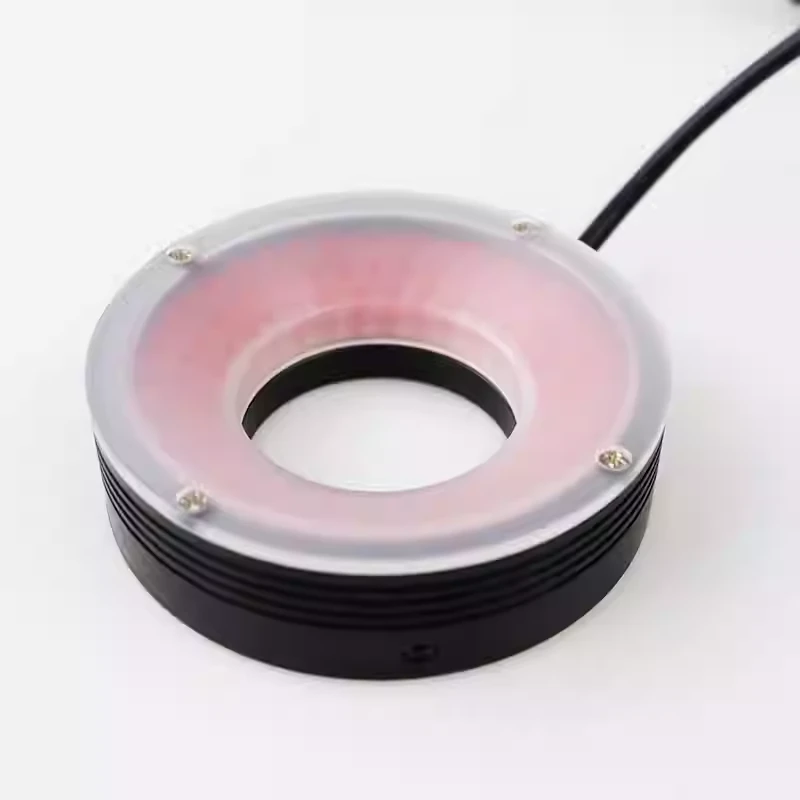

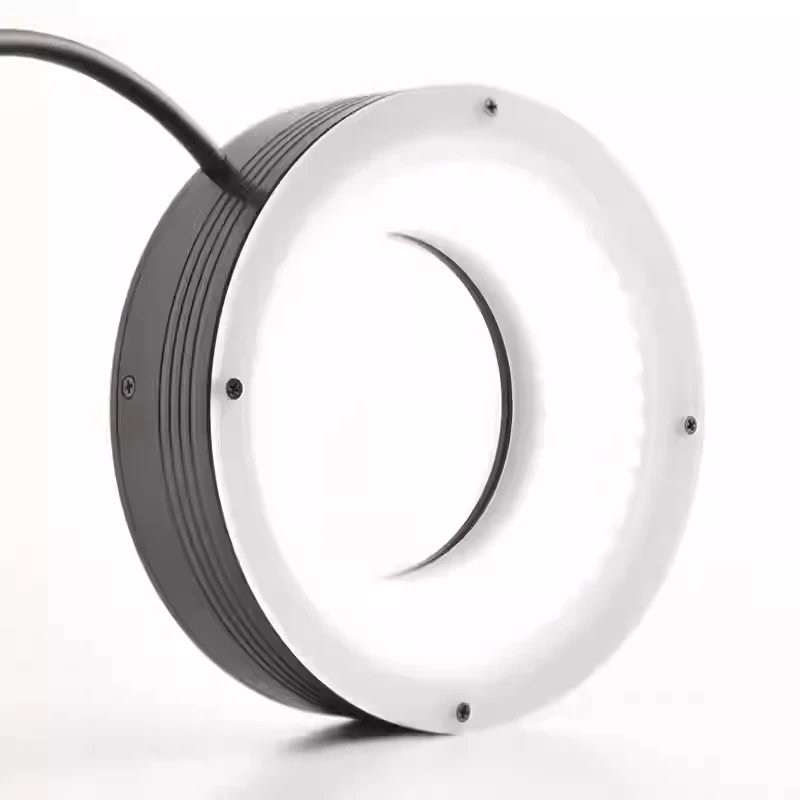

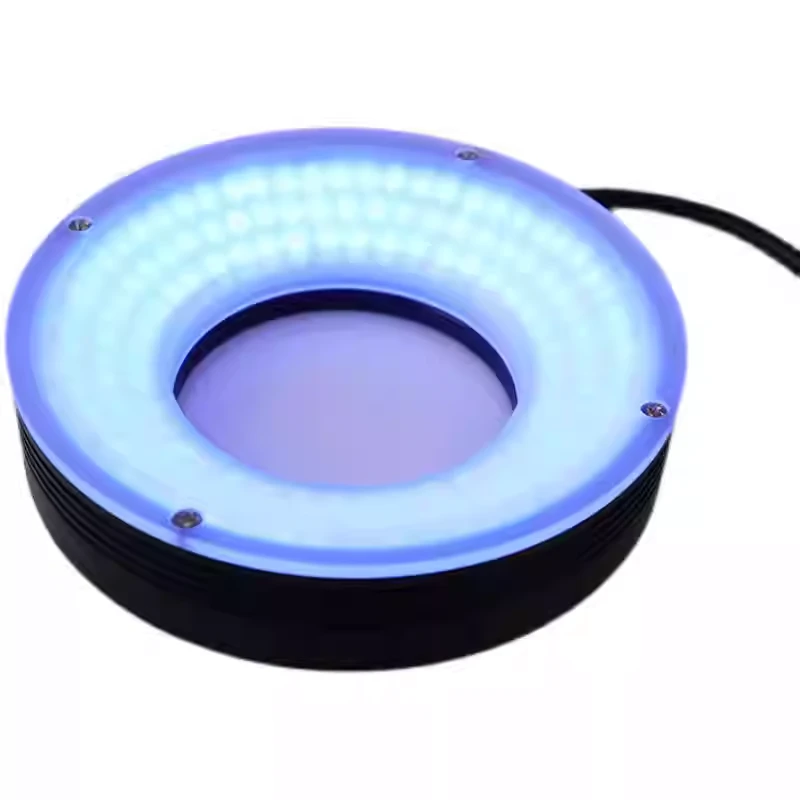

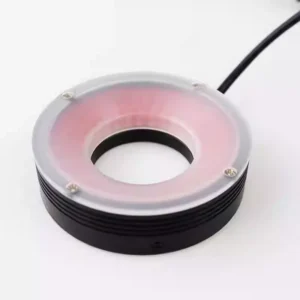

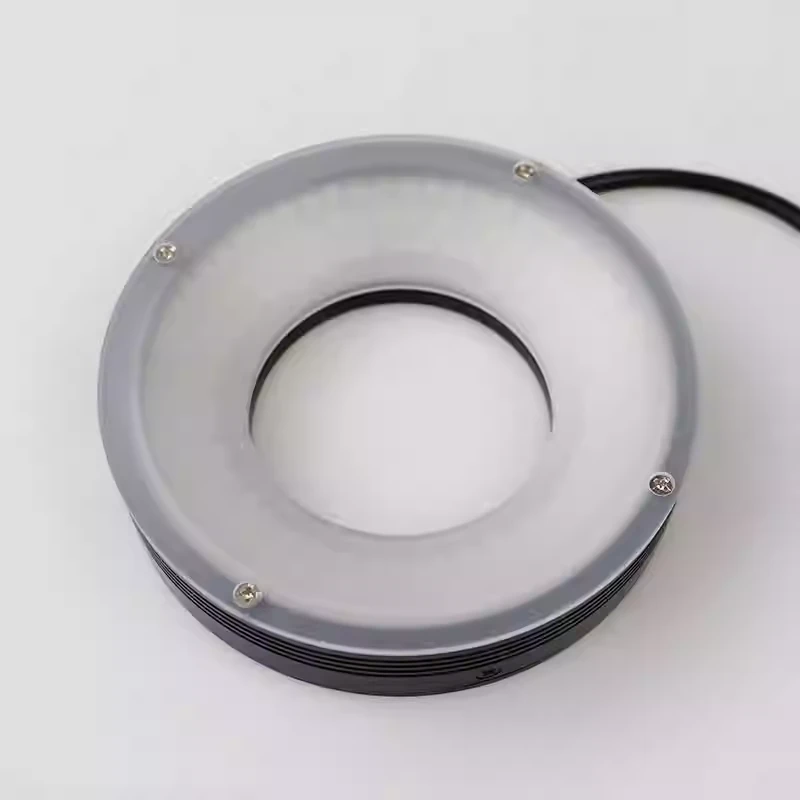

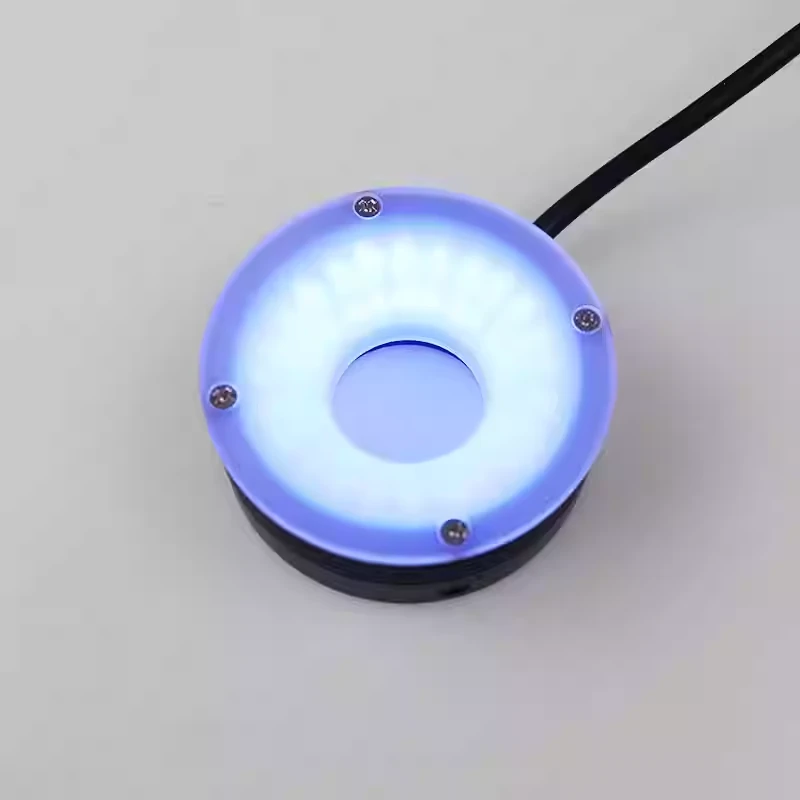

45-Degree Ring Light

  • High-density LED arrangement and scientific structural design.
  • Illumination from 360° direction to eliminate shadows.
  • A hole in the center enables perfect alignment between the light source and the camera lens.
  • Multiple angles available to adapt to applications with different working distances.
Get A Quotation
Categories: , ,
Applicable to:



  • Connector pin positioning
  • QR code recognition
  • IC component inspection
  • Microscope illumination for PCB substrate inspection
  • Electronic component inspection and appearance defect inspection, etc.
  • LCD calibration and plastic container inspection
  • Integrated circuit (IC) mark inspection



Light Model Color Physical Dimensions (mm) Beam Angle Voltage (V) Power (W)
Outer Diameter Inner Diameter Height
DBS-R5445W White 54 20 21 45 24 2.4
DBS-R5445B Blue 54 20 21 45 24 2.4
DBS-R5445R Red 54 20 21 45 24 2.4
DBS-R5445G Green 54 20 21 45 24 2.4
DBS-R7045W White 70 33 23 45 24 4.3
DBS-R7045B Blue 70 33 23 45 24 4.3
DBS-R7045R Red 70 33 23 45 24 4.3
DBS-R7045G Green 70 33 23 45 24 4.3
DBS-R9045W White 90 49 24 45 24 3.8
DBS-R9045B Blue 90 49 24 45 24 3.8
DBS-R9045R Red 90 49 24 45 24 3.8
DBS-R9045G Green 90 49 24 45 24 3.8
DBS-R12045W White 120 72 27 45 24 7.9
DBS-R12045B Blue 120 72 27 45 24 7.9
DBS-R12045R Red 120 72 27 45 24 7.9
DBS-R12045G Green 120 72 27 45 24 7.9
DBS-R15045W White 150 103 27 45 24 9.1
DBS-R15045B Blue 150 103 27 45 24 9.1
DBS-R15045R Red 150 103 27 45 24 9.1
DBS-R15045G Green 150 103 27 45 24 9.1
45 degree ring light

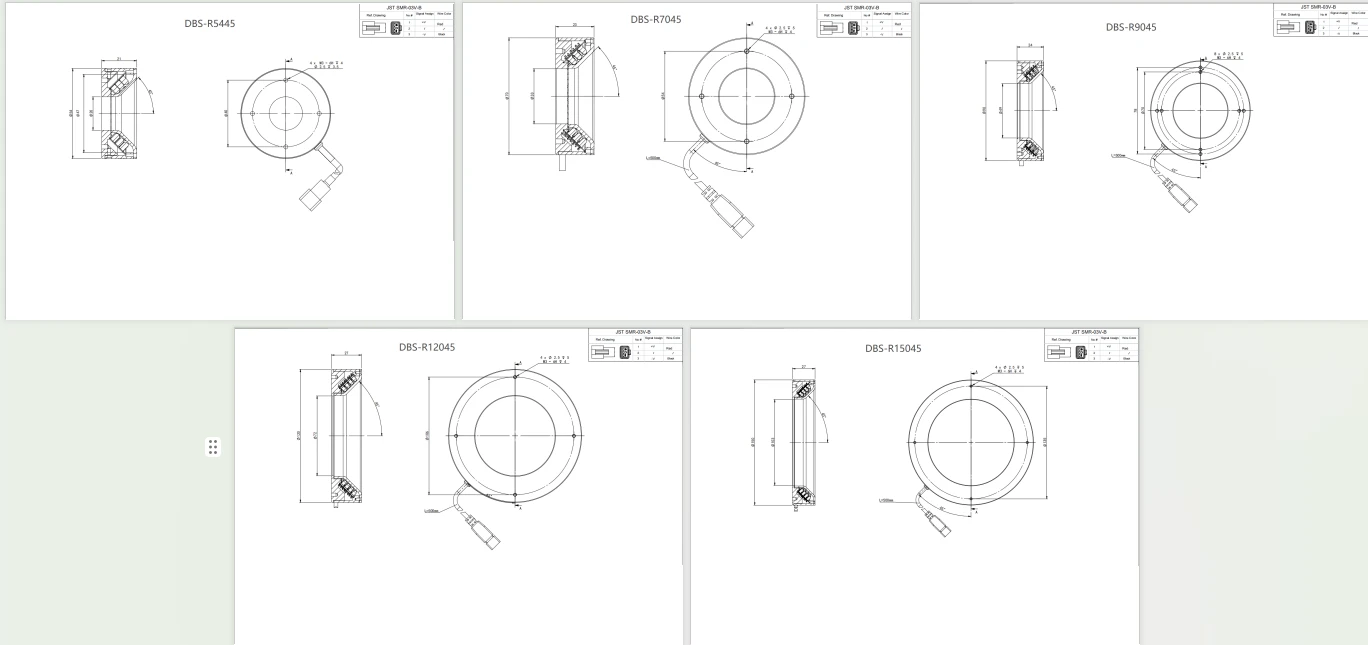

45-Degree Ring Light Dimension Drawing
Download File
