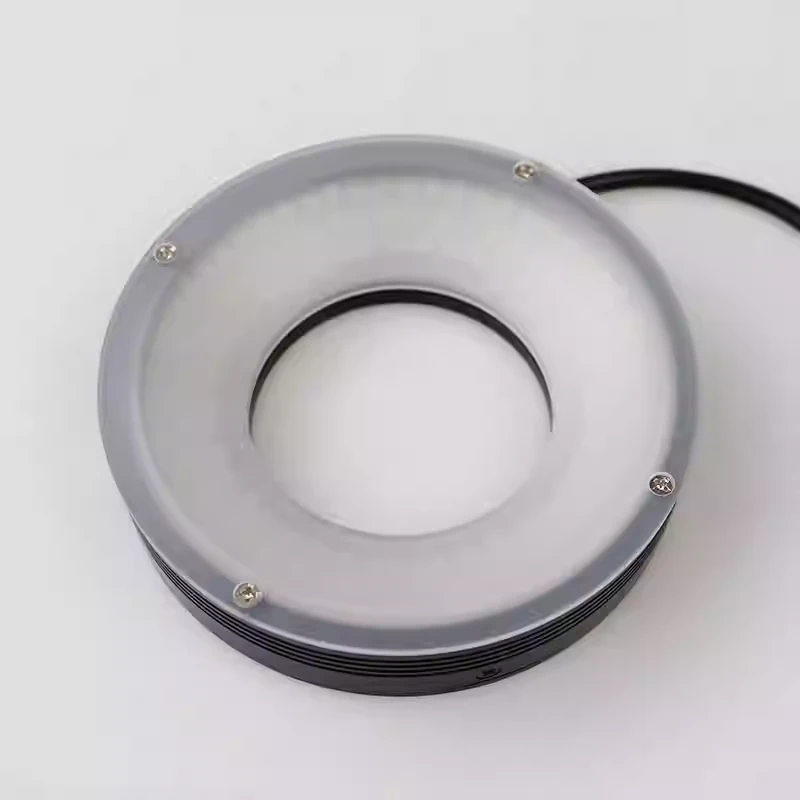

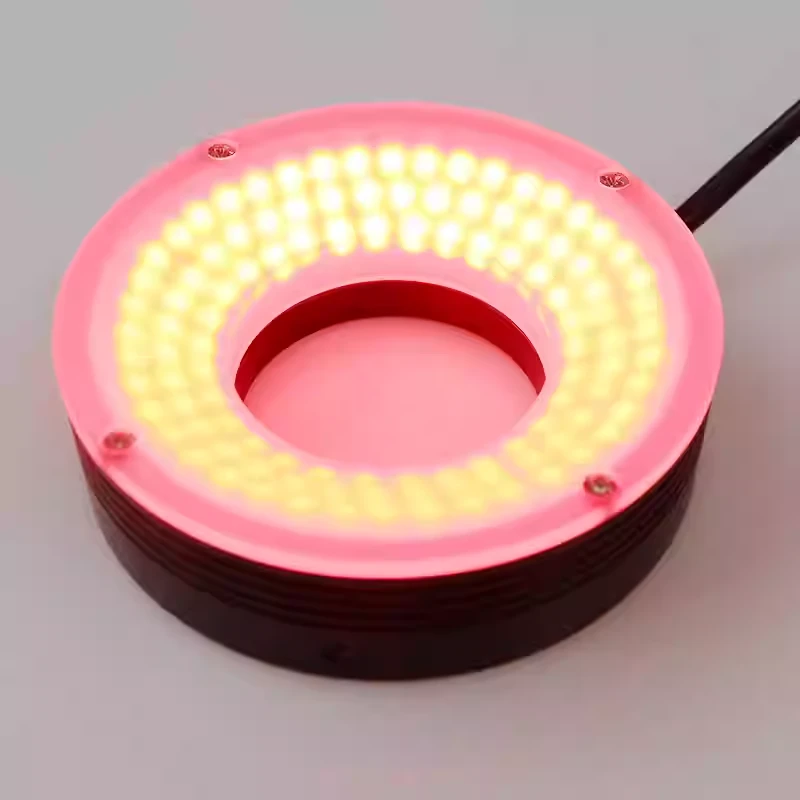

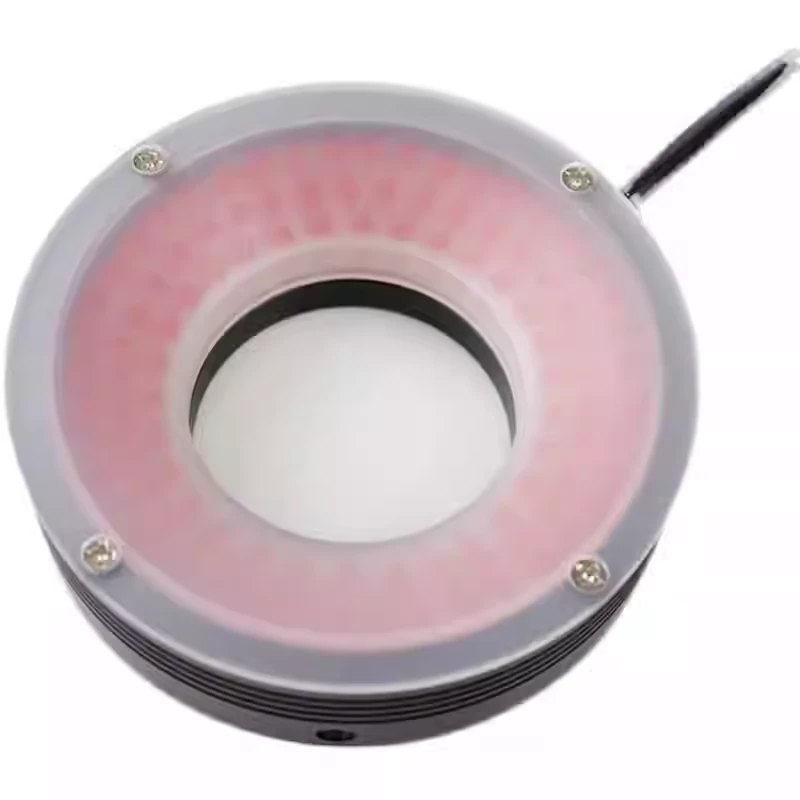

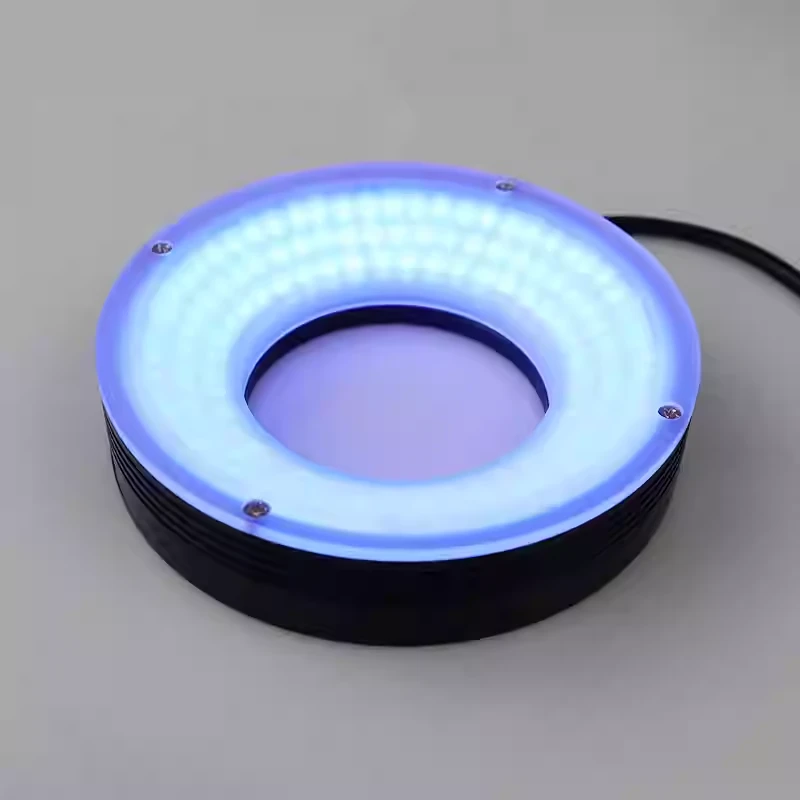

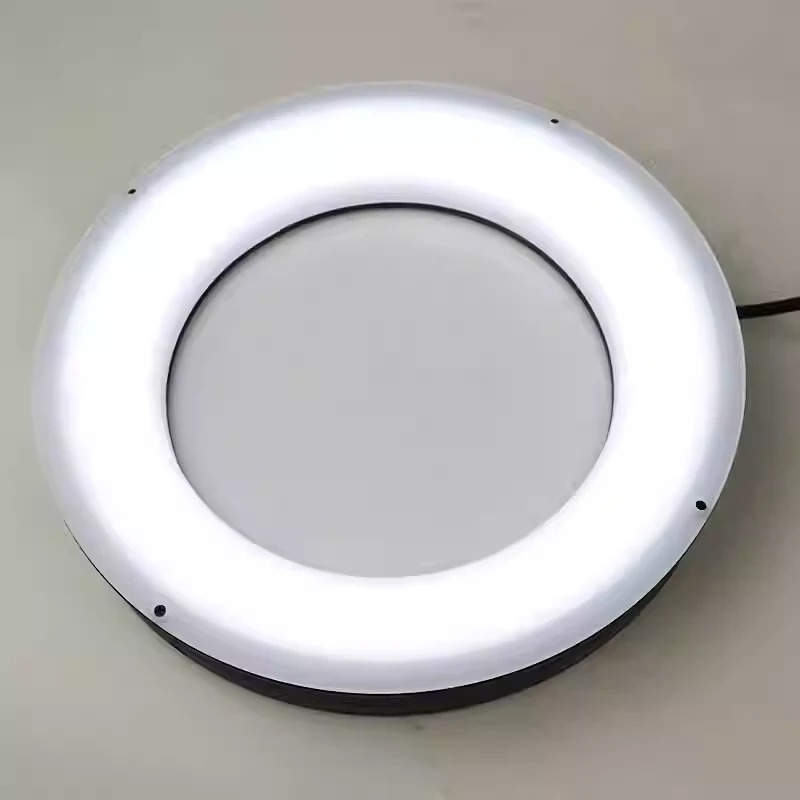

30-Degree Ring Light Source

  • High-density LED arrangement and scientific structural design.
  • Illumination from 360° direction to eliminate shadows.
  • A hole in the center enables perfect alignment between the light source and the camera lens.
  • Multiple angles available to adapt to applications with different working distances.
Get A Quotation
Categories: ,
Applicable to:



  • Connector pin positioning
  • QR code recognition
  • IC component inspection
  • Microscope illumination for PCB substrate inspection
  • Electronic component inspection and appearance defect inspection, etc.
  • LCD calibration and plastic container inspection
  • Integrated circuit (IC) mark inspection



Light Model Color Physical Dimensions (mm) Beam Angle Voltage (V) Power (W)
Outer Diameter Inner Diameter Height
DBS-R5030W White 50 24 16 30 24 2.2
DBS-R5030B Blue 50 24 16 30 24 2.2
DBS-R5030R Red 50 24 16 30 24 2.2
DBS-R5030G Green 50 24 16 30 24 2.2
DBS-R7430W White 74 40 22 30 24 2.9
DBS-R7430B Blue 74 40 22 30 24 2.9
DBS-R7430R Red 74 40 22 30 24 2.9
DBS-R7430G Green 74 40 22 30 24 2.9
DBS-R9030W White 90 50 25 30 24 5.3
DBS-R9030B Blue 90 50 25 30 24 5.3
DBS-R9030R Red 90 50 25 30 24 5.3
DBS-R9030G Green 90 50 25 30 24 5.3
DBS-R10230W White 102 70 25 30 24 5.8
DBS-R10230B Blue 102 70 25 30 24 5.8
DBS-R10230R Red 102 70 25 30 24 5.8
DBS-R10230G Green 102 70 25 30 24 5.8
DBS-R12030W White 120 80 25.5 30 24 5.5
DBS-R12030B Blue 120 80 25.5 30 24 5.5
DBS-R12030R Red 120 80 25.5 30 24 5.5
DBS-R12030G Green 120 80 25.5 30 24 5.5
DBS-R15030W White 150 105 32 30 24 9.6
DBS-R15030B Blue 150 105 32 30 24 9.6
DBS-R15030R Red 150 105 32 30 24 9.6
DBS-R15030G Green 150 105 32 30 24 9.6
DBS-R18030W White 180 134 32 30 24 12.5
DBS-R18030B Blue 180 134 32 30 24 12.5
DBS-R18030R Red 180 134 32 30 24 12.5
DBS-R18030G Green 180 134 32 30 24 12.5

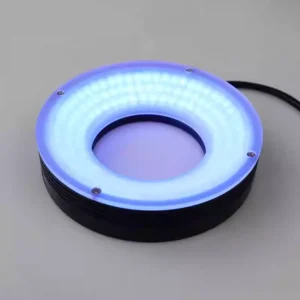

30 degree ring light source

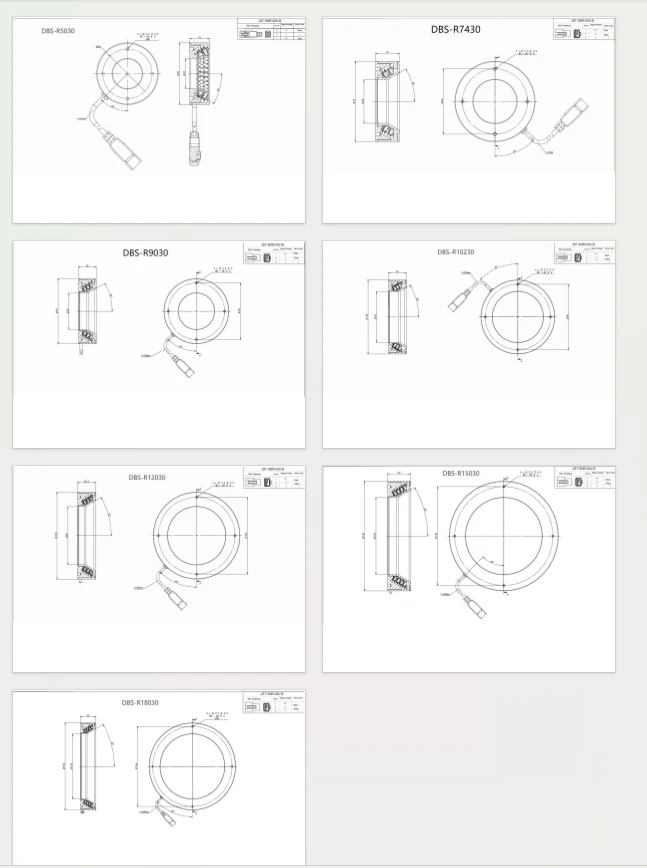

30-Degree Ring Light Source Dimension Drawing
