- Supports RS232 communication;
- Built-in 48V switching power supply;
- Low trigger response time;
- Supports external trigger/internal trigger modes;
- Supports synchronous signal output;
- 5~24V bidirectional trigger, adaptable to high/low level trigger modes;
- Automatic data saving when power is off.

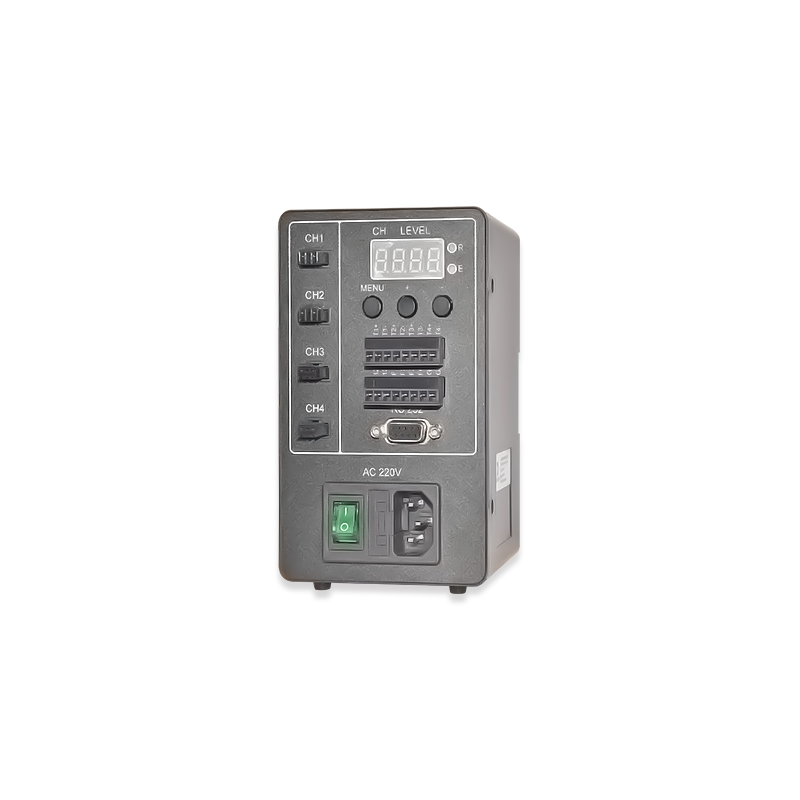

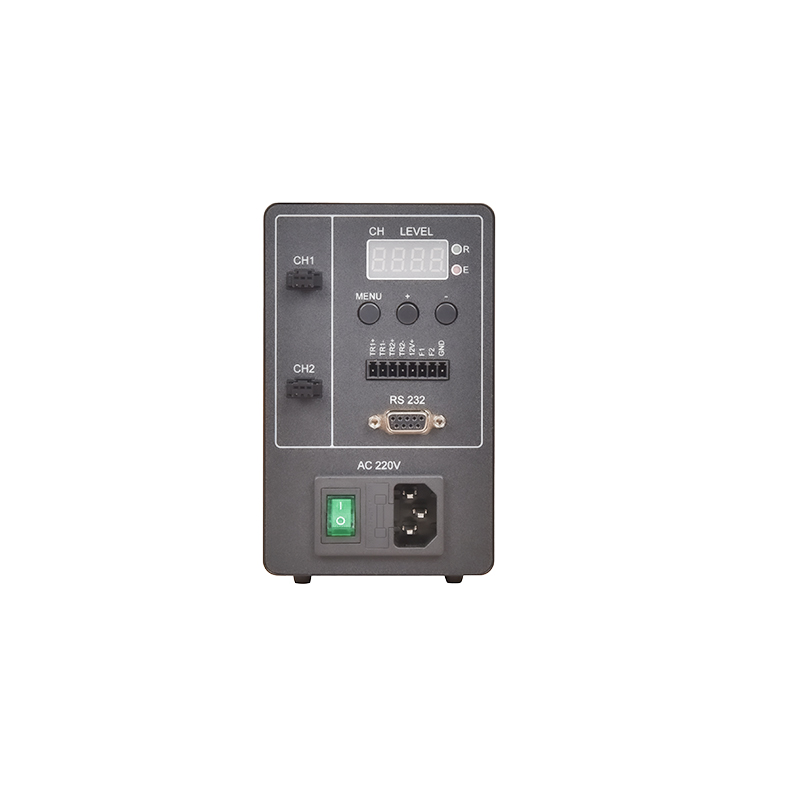

High-Brightness Strobe Controller
Brightening light source controller, built-in switching power supply, power options (65W~200W), channel options, supports RS232 communication interface, can increase the brightness of the light source by more than 3 times compared to ordinary controller-driven light sources, and can be used in sports flying photography and high-speed photography applications
| mode | Input Voltage | Max output voltage | Instantaneous Current | Total Power | Number of Channels | Communication Interface |
| DBS-65-MF01C-48200-2 | VAC 85~264 | DC 48V | 20A | 65W | 2 | RS232 |
| DBS-65-MF01C-48200-4 | VAC 85~264 | DC 48V | 20A | 65W | 4 | RS232 |
| DBS-120-MF01C-48200-2 | VAC 85~264 | DC 48V | 20A | 120W | 2 | RS232 |
| DBS-120-MF01C-48200-4 | VAC 85~264 | DC 48V | 20A | 120W | 4 | RS232 |
| DBS-200-MF01C-48200-2 | VAC 85~264 | DC 48V | 20A | 200W | 2 | RS232 |
| DBS-200-MF01C-48200-4 | VAC 85~264 | DC 48V | 20A | 200W | 4 | RS232 |
