- Supports RS232 communication;
- Built-in switching power supply;
- Low trigger response time;
- Supports external trigger mode;
- Supports constant-on trigger, constant-off trigger, and constant-brightness function;
- Supports trigger level switching;
- Manual brightness and mode setting;
- 5~24V bidirectional triggering, adaptable to high/low level trigger modes;
- Easy installation: screw mounting or C45 DIN rail mounting.

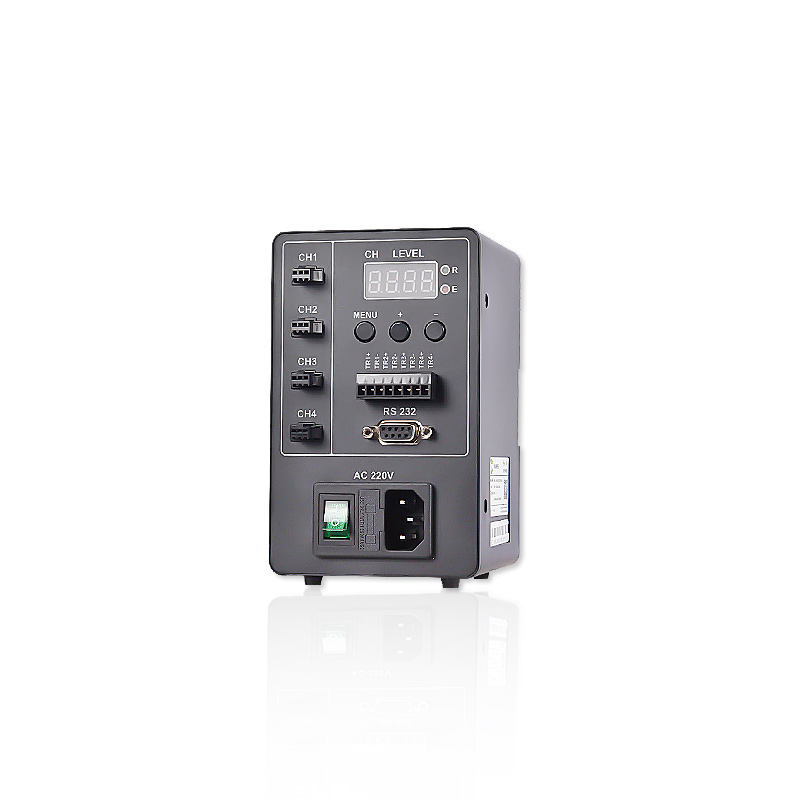

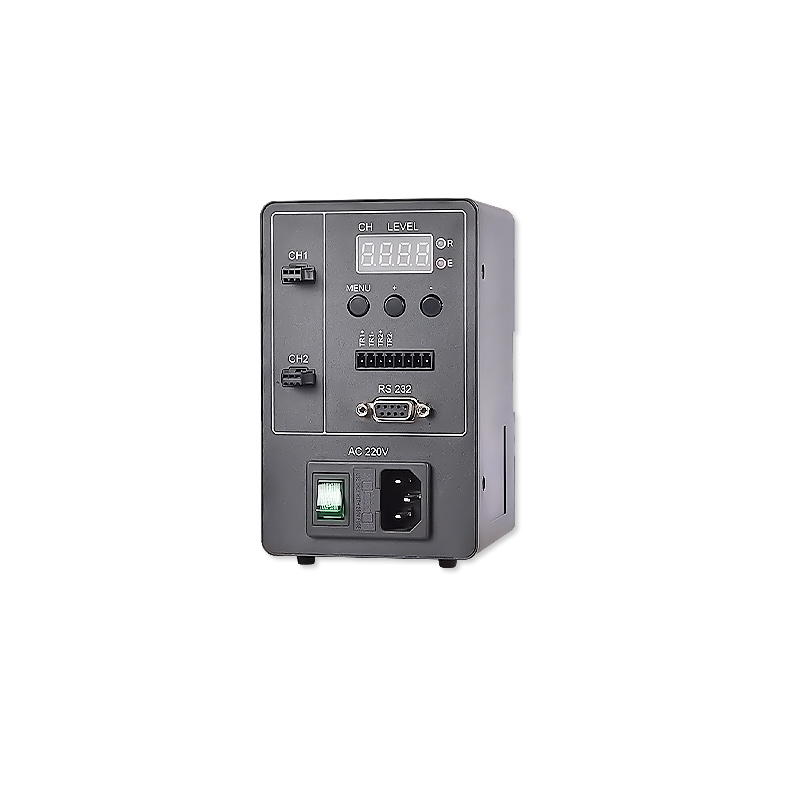

General Constant Current Driver
Digital constant current light source controller, built-in switching power supply, power selectable (65W~200W), channel number selectable, supports RS232 communication interface, has the advantages of stable brightness and good dimming linearity, can be used for lighting sources for full-frame cameras, rolling shutter cameras, line scanning cameras, etc.
| mode | Input Voltage | Max output voltage | Channel current | Total Power | Number of Channels | Communication Interface |
| DBS-65-MI02C-24020-2 | VAC 85~264 | DC 24V | 2A | 65W | 2 | RS232 |
| DBS-65-MI02C-24020-4 | VAC 85~264 | DC 24V | 2A | 65W | 4 | RS232 |
| DBS-120-MI02C-24030-4 | VAC 85~264 | DC 24V | 3A | 120W | 4 | RS232 |
| DBS-200-MI02C-24030-4 | VAC 85~264 | DC 24V | 3A | 200W | 4 | RS232 |
