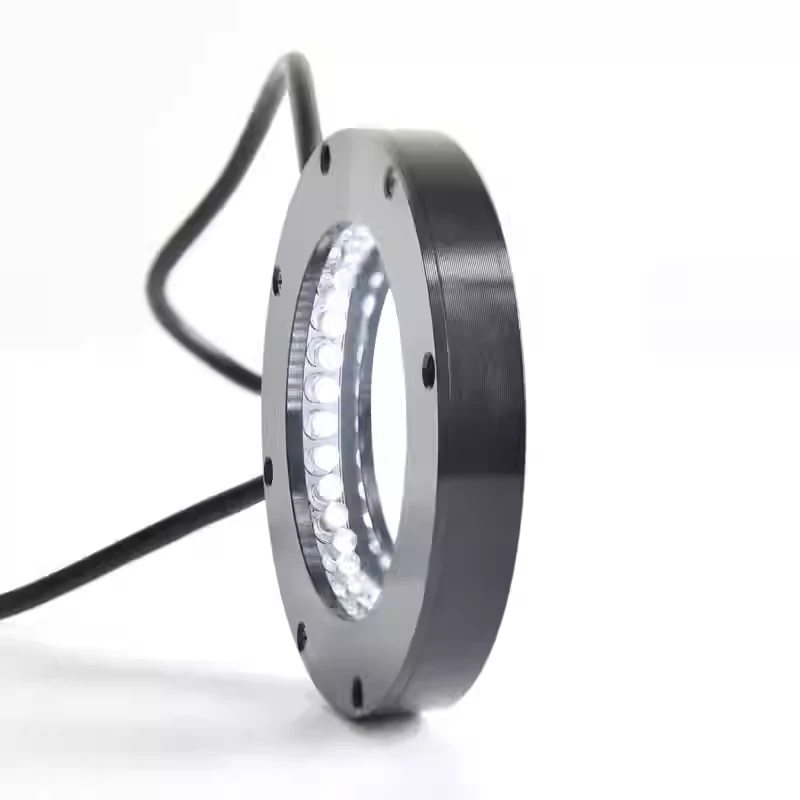

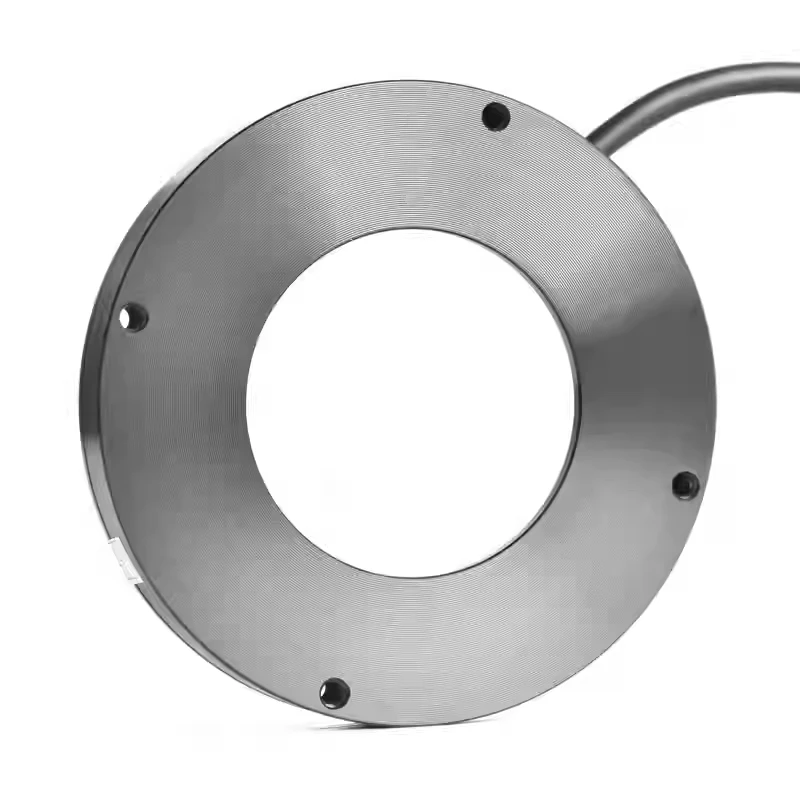

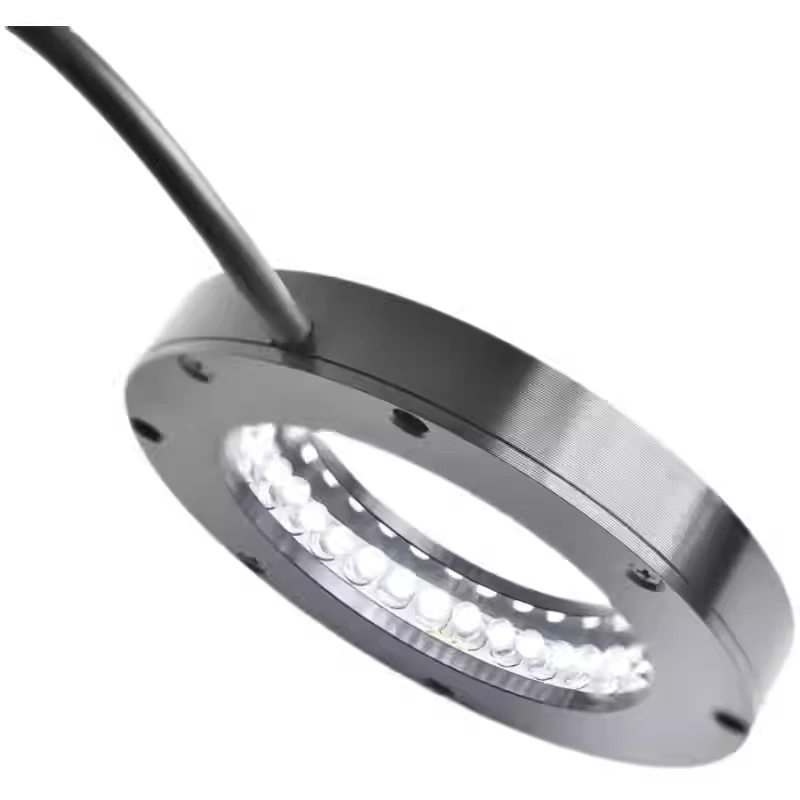

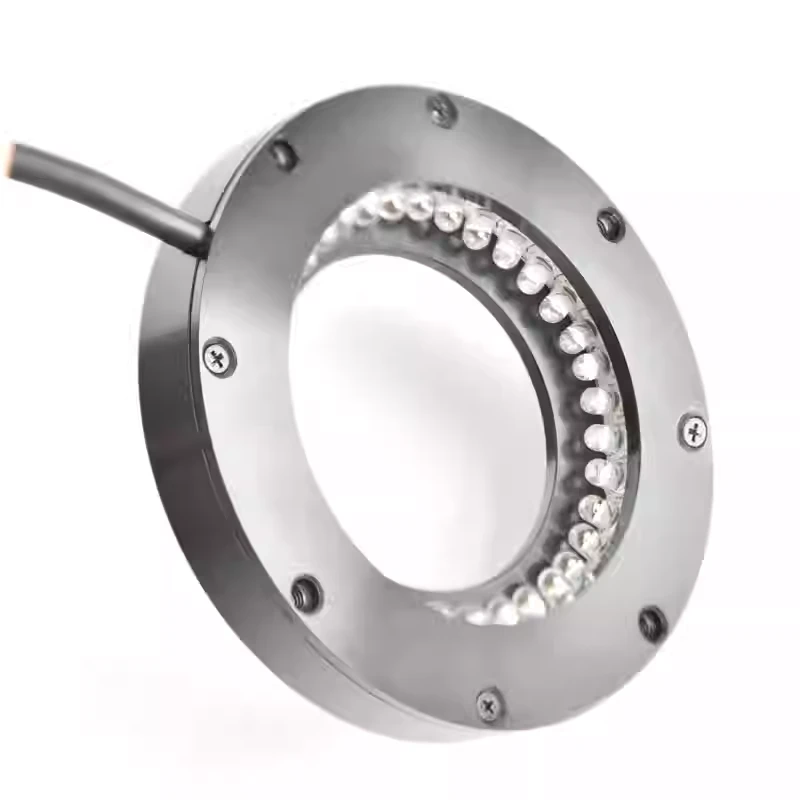

0-Degree Ring Light

  • High-density LED arrangement and scientific structural design.
  • Illumination from 360° direction to eliminate shadows.
  • A hole in the center enables perfect alignment between the light source and the camera lens.
  • Multiple angles available to adapt to applications with different working distances.
Get A Quotation
Categories: , ,
Applicable to:



  • Connector pin positioning
  • QR code recognition
  • IC component inspection
  • Microscope illumination for PCB substrate inspection
  • Electronic component inspection and appearance defect inspection, etc.
  • LCD calibration and plastic container inspection
  • Integrated circuit (IC) mark inspection
Light Source Model Color External Dimensions (mm) Emitting Angle Voltage (V) Power (W)
Outer Diameter Inner Diameter Height
DBS-R3200W White 32 8 8.6 0 24 0.5
DBS-R3200B Blue 32 8 8.6 0 24 0.5
DBS-R3200R Red 32 8 8.6 0 24 0.5
DBS-R3200G Green 32 8 8.6 0 24 0.5
DBS-R5400W White 54 25 8.5 0 24 0.8
DBS-R5400B Blue 54 25 8.5 0 24 0.8
DBS-R5400R Red 54 25 8.5 0 24 0.8
DBS-R5400G Green 54 25 8.5 0 24 0.8
DBS-R6000W White 60 33 8.9 0 24 1.2
DBS-R6000B Blue 60 33 8.9 0 24 1.2
DBS-R6000R Red 60 33 8.9 0 24 1.2
DBS-R6000G Green 60 33 8.9 0 24 1.2
DBS-R6900W White 69 36 9 0 24 1.2
DBS-R6900B Blue 69 36 9 0 24 1.2
DBS-R6900R Red 69 36 9 0 24 1.2
DBS-R6900G Green 69 36 9 0 24 1.2
DBS-R9400W White 94 64 9 0 24 2
DBS-R9400B Blue 94 64 9 0 24 2
DBS-R9400R Red 94 64 9 0 24 2
DBS-R9400G Green 94 64 9 0 24 2
DBS-R12000W White 120 98 9 0 24 2.5
DBS-R12000B Blue 120 98 9 0 24 2.5
DBS-R12000R Red 120 98 9 0 24 2.5
DBS-R12000G Green 120 98 9 0 24 2.5
DBS-R13500W White 135 105 9 0 24 2.2
DBS-R13500B Blue 135 105 9 0 24 2.2
DBS-R13500R Red 135 105 9 0 24 2.2
DBS-R13500G Green 135 105 9 0 24 2.2
DBS-R17200W White 172 143 8.5 0 24 2.9
DBS-R17200B Blue 172 143 8.5 0 24 2.9
DBS-R17200R Red 172 143 8.5 0 24 2.9
DBS-R17200G Green 172 143 8.5 0 24 2.9
DBS-R17500W White 175 145 9 0 24 2.9
DBS-R17500B Blue 175 145 9 0 24 2.9
DBS-R17500R Red 175 145 9 0 24 2.9
DBS-R17500G Green 175 145 9 0 24 2.9
0 degree ring light

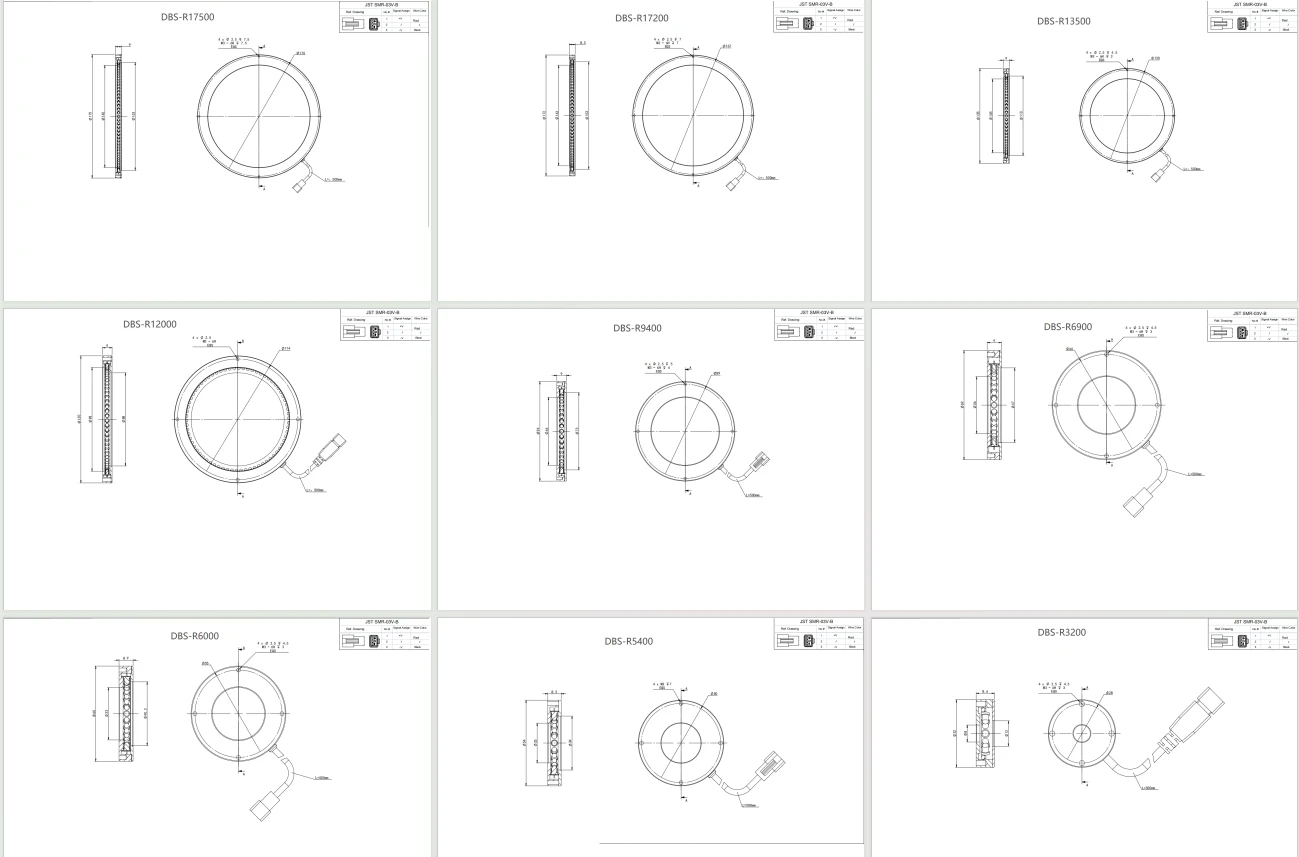

0-Degree Ring Light Dimension Drawing
